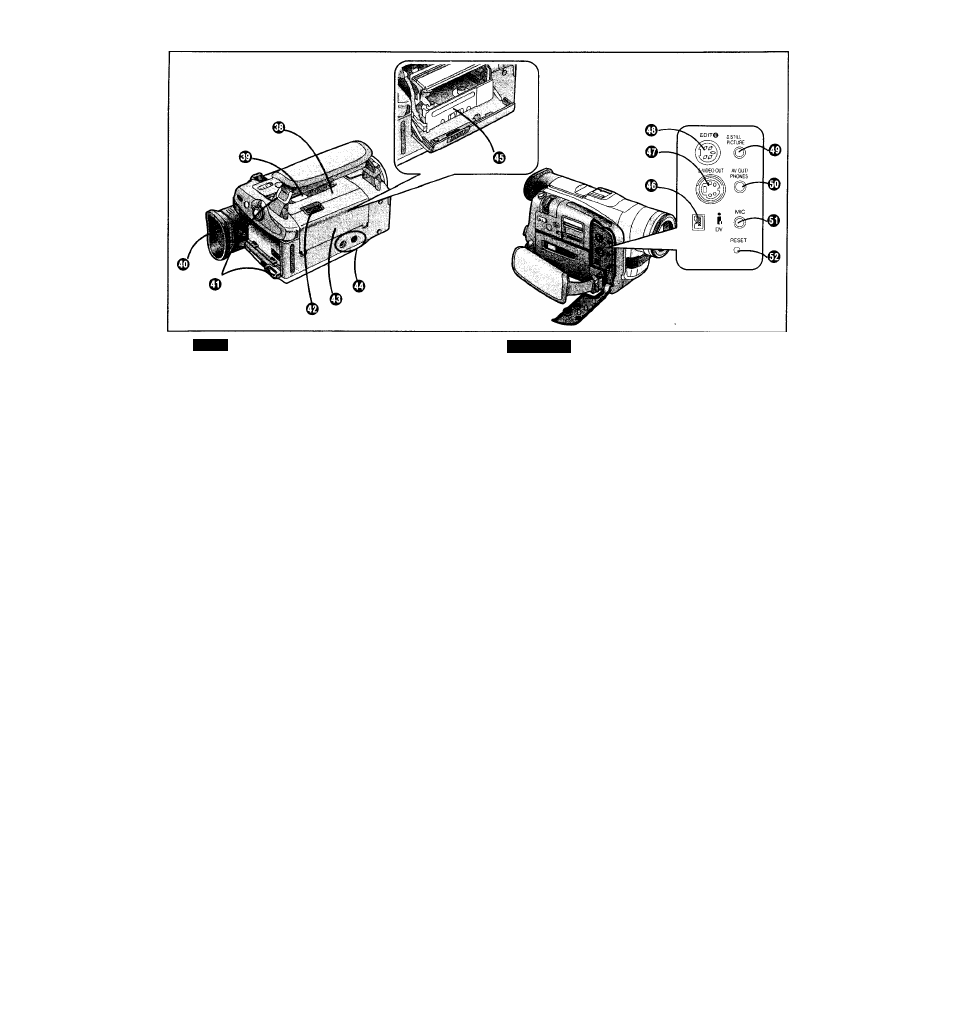

0 Upper Cassette Compartment Cover (-♦ 22)
0 Cassette Compartment Window (-f 22)
© Finder (-> 26, 160)
Due to limitations in LCD production technology, there
may be some tiny bright or dark spots on the Finder
screen. However, this is not a malfunction and does
not affect the recorded picture.
© Shoulder Strap Holders (-4 28)
© Cassette Eject Lever [OPEN/EJECT] (-► 22)
0 Lower Cassette Compartment Cover (-^ 22)
©Tripod Receptacle
To mount the Movie Camera on an optional tripod.
© Cassette Holder (-» 22)
© DV Terminal (i.LINK) [
r
] (-> 136)
Connect it to digital video equipment.
“i.LINK” is the name of the connector in accordance with
the IEEE1394-1995.
“f.” is the logo marked on products conforming with t^
“i.LINK” specifications.
© S-Video Output Socket [S-VIDEO OUT]
(-> 68, 134, 138, 140, 142, 146)
© Edit Socket [EDIT®] (-► 138,142)
© Digital Still Picture Terminal [D.STILL PICTURE]
(-♦ 146)
0 Audio-Video Output Socket [AV OUT]
(-4 68, 134, 138, 146)
Headphone Socket [PHONES] (-► 160)
When a cable is connected to this socket, the Movie
Camera’s built-in speaker is turned off.
0 Microphone Socket [MIC]
To connect an external microphone or audio equipment.
(Connecting to this socket deactivates the built-in
microphone.)
© Reset Button [RESET] (-> 186)
