ENGLISH
Copying with the Heip of an Editing
Controiier
If you connect the Movie Camera to an Editing Controller
equipped with 5-pin Edit Socket, this Movie Camera’s
playback functions can be controlled from the Editing
Controller.

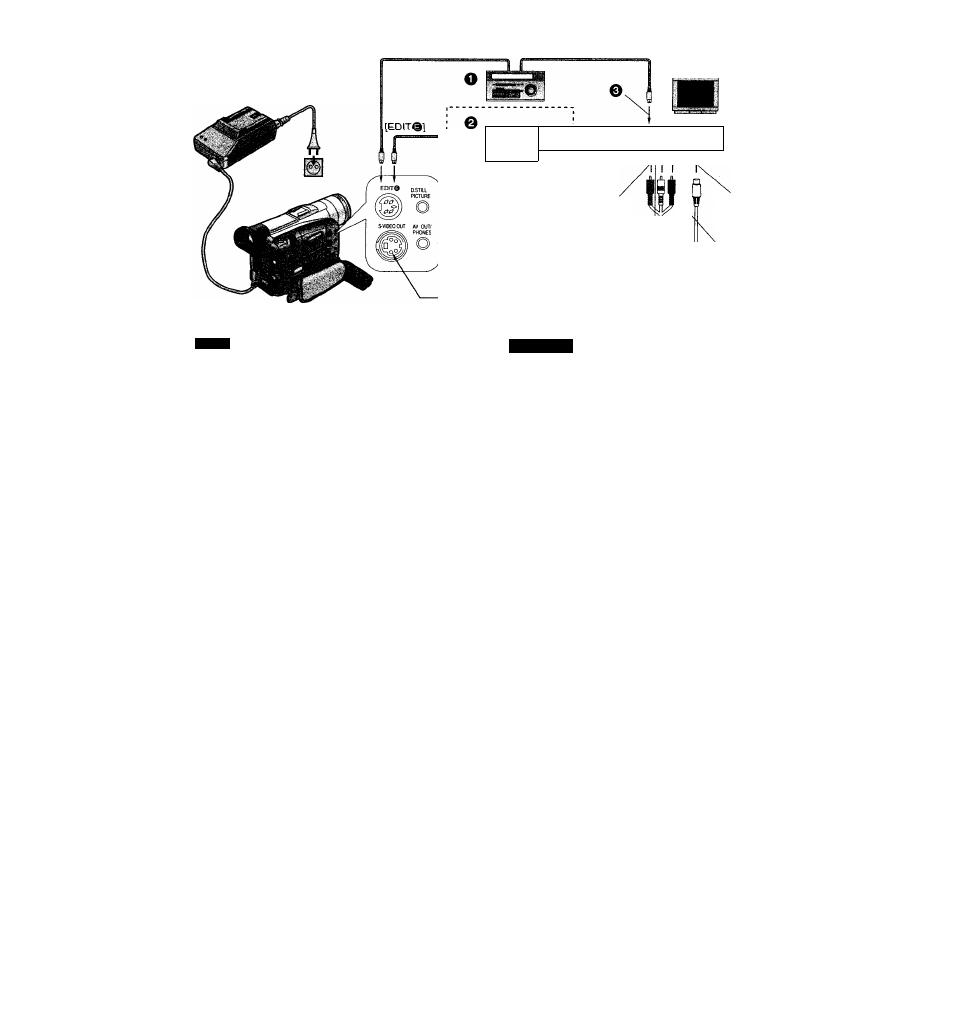

After making the connections shown above, perform the
necessary operations.
When you perform editing with the NV-HS1000 VCR
(optional) connected to this Movie Camera, first activate the
Still Playback Mode on the Movie Camera and then start the
actual editing operation.
When Connecting the Editing Controller
VW-EC500E O (optional)
•A VCR equipped with 5-pin Edit Socket is necessary.
•When you connect the VW-EC500E to the Movie Camera,
an adjustment on the VW-EC500E is necessary. For the
operation of the Editing Controller, refer to its operating
instructions.
When Connecting the Editing Controller
VW-EC1E@ (optional)
•When you use the Editing Controller VW-EC1E, it is not
necessary to connect it to the Edit Socket on the VCR, as
the VCR’s operation is performed via infrared remote
control. Therefore, editing is also possible onto VCRs not
equipped with an Edit Socket.
• For the operation of the Editing Controller, refer to its
operating instructions.
When Editing with Time Code
Set [C.DISPLAY] on the [DISPLAY SETUP] Sub-Menu of the
[VCR FUNCTIONS] Main-Menu to [TIMECODE] to make the
Time Code appear.
•When the Time Code is displayed, the Time Code Signal Is
output from the Edit Socket.
•When the Counter Indication is displayed, the Linear Tape
Counter Signal is output.
o To Edit Socket
138-
