Panasonic NV-DS15EN - Инструкция (Страница 127)

X ENGLISH
(ilM)
$PSt$fflDV(gdsfift)^,^VW-CD1E(S,8Sp°p)Q ■
i^«|B«'t;:aiiDViiA/$itBwi(i,LINK)&^i(iiiii1tig1i(W
itmii rs].
1 [&»«]
2 mmm]
»
3 [Wimm]
4 m^m]
-3iS[REC](iS^)ffl ■ -a«[PLAY](»ii[)ffl(Mfl
-
iSBf¥ifl[ii]sgi?j±i5[B] ■ ^i¥±mm °
• ^lraitiiii[CAMERA FUNCTIONS]±Sm±[RECORDING
SETUP]AS¥4’S^iS@ [AUDIO REC]&^IS^iPfHJ •
• ' *A9ittSsSc
«M±6^«®)S^Tg|55ItgfS±A* ■ ^^Hit^4±T
SBiit - °
• DymtLWAn.)m.m ■ a«»s*e»® °

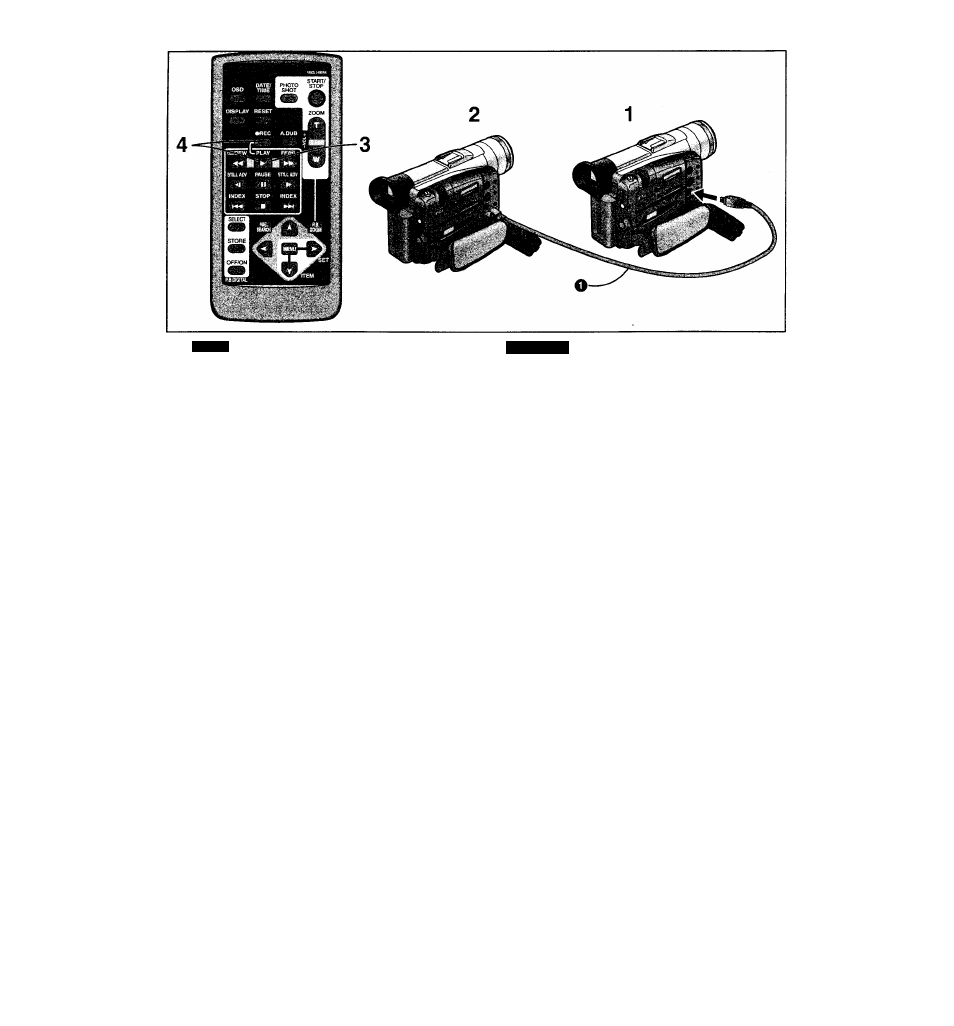

Using with Digital Video Equipment
(Dubbing)
If you connect this Movie Camera with other Digital Video
equipment (for example another Movie Camera of the
same type) equipped with DV Input/Output Terminal
(i.LINK) using the DV Cable VW-CD1E (optional) Q, you
can dub high-quality picture and sound in the digital
format.
1 [Playback Unit]
Insert the recorded cassette and set the Movie
Camera to the VCR Mode.
2 [Recording Unit]
Insert a cassette onto which you want to
perform dubbing and set the Movie Camera to
the VCR Mode.
3 [Playback Unit]
Press the Play Button [P^] to start playback.
4 [Recording Unit]
While pressing the [REC] Button, press the
[PLAY] Button (both on the Remote Controller).
Recording starts.
Stopping Dubbing
Press the Pause Button [II] or the Stop Button [■] to stop
recording.
• Dubbing is automatically performed in the same audio
recording mode as that of the cassette in the playback unit,
regardless of the setting for [AUDIO REC] on the
[RECORDING SETUP] Sub-Menu of the [CAMERA
FUNCTIONS] Main-Menu of the recording unit.
•The lower part of the monitor picture of the recording unit
(the picture displayed on the LCD Monitor, Finder or TV)
may be distorted, or the picture may roll up or down.
However, this is not a malfunction and does not affect the
picture being recorded.
• If the DV Cable is not connected, a black picture is
recorded.
-136-
