Playing Back on a TV
(With the Output Terminal Box [AV ONE TOUCH
STATION] Attached)
Attaching the Output Terminal Box [AV ONE TOUCH
STATION] to the Movie Camera makes it possible to play
back recorded scenes on a TV.

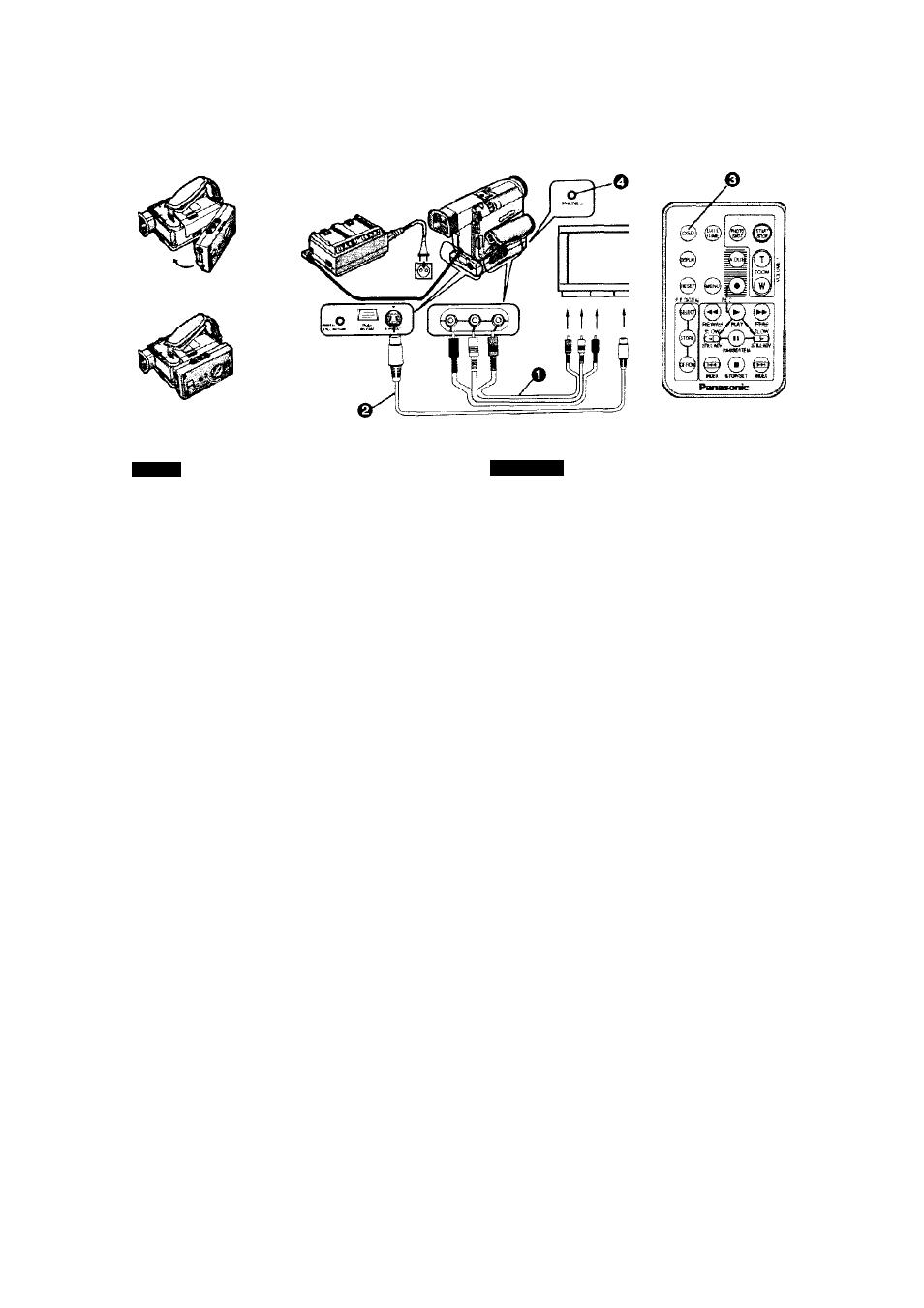

1
Attach the Output Terminal Box [AV ONE
TOUCH STATION]. (-M10)
2
Connect the Video and Audio Output
Sockets to the Video and Audio input
Sockets on the TV.
Use the AV Cable © to connect to the TV. If your
TV IS equipped with an S-Video Socket, also
connect the S-Video Cable Q
♦Before connecting, turn off both the Movie Camera and
the TV
• If a cassette recorded with copyright protection signal is j
played back, the screen becomes black. However,
scenes recorded with this Movie Camera do not contain
a copyright protection signal.
Making the Indications Appear on the TV Screen
Press the [OSD] Button © on the Remote Controller.
The On-Screen Indications also appear on the TV screen.
Listening to the Playback Sound via Headphones
ff you want to use headphones to iisien to the playback
sound, connect them to the [PHONES] Socket © on the
Output Terminal Box [AV ONE TOUCH STATION]. In this
case, no sound is reproduced from the Movie Camera's
built-in speaker, and the volume ol the playback sound
cannot be adjusted.
