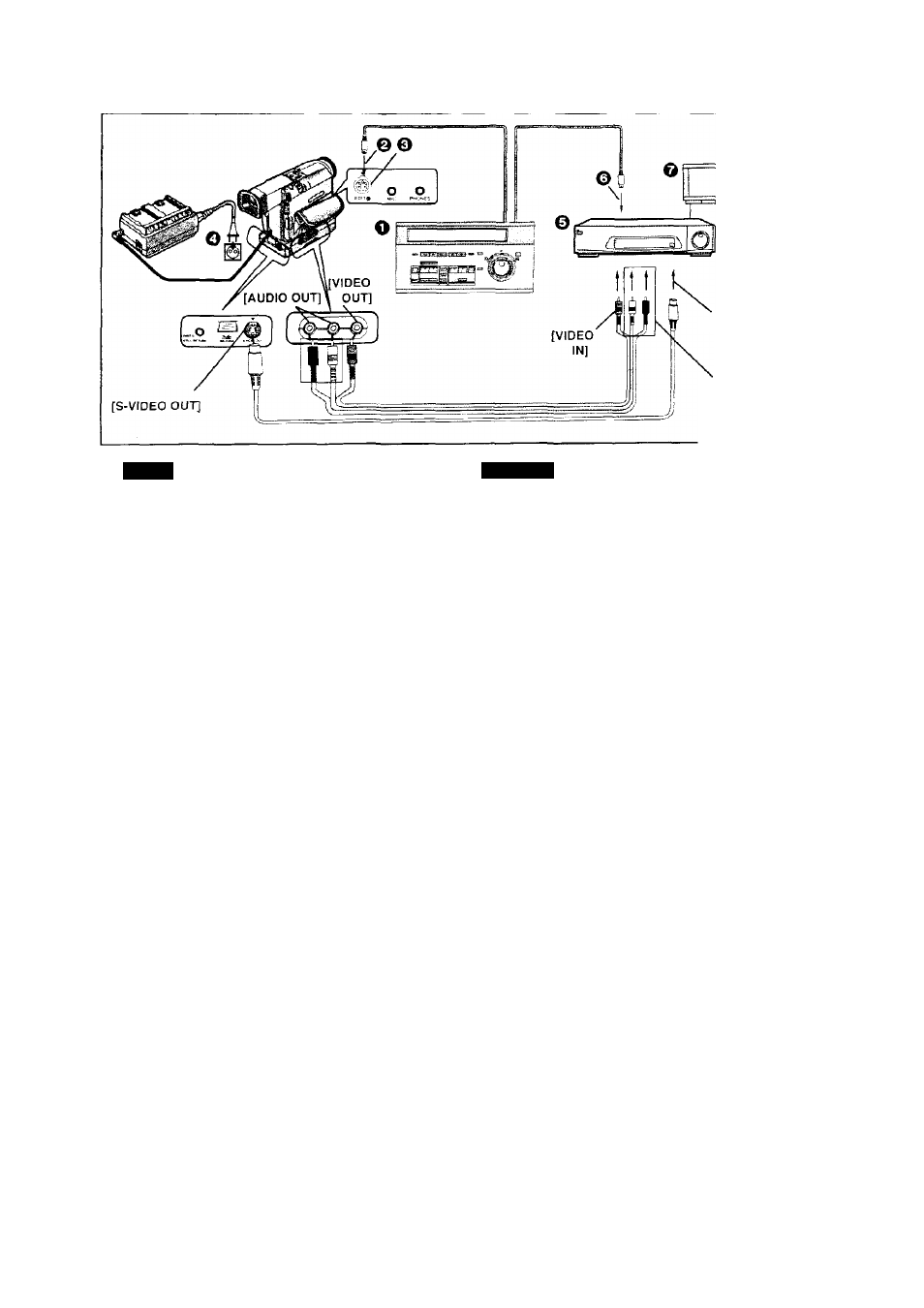

Copying with the Help of an Editing
Controiier
If you connect the Movie Camera to an Editing Controller
equipped with 5-pin Edit Socket, this Movie Camera's
playback functions can be controlled from the Editing
Controller.
(The Output Terminal Box [AV ONE TOUCH STATION]
IS necessary.)
After connecting all equipment as shown above,
perform the necessary operations.
When Connecting the Editing Controller
VW-EC500E O (optional)
• A VCR equipped with 5-pin Edit Socket is necessary.
• Vyhen you connect the VW-EC500E to the Movie
Camera, an adjustment on the VW-EC500E is
necessary. For the operation of the tditirig Controller,
refer to its operating instructions.
When Editing with Time Code
Press the [DISPLAY] Button on the Remote Controller to
make the Time Code appear,
• When the Time Code is displayed, the Time Code
Signal Is output from the Edit Socket.
• When the Counter Indication is displayed, the Linear
Tape Counter Signal is output.
0
To Edit Socket
0 Edit Socket
O Connect the AC Adaptor
0 VCR (not supplied}
0 To Edit Socket
0 TV (not supplied)
