l Fourth order Polynomial Based on PV

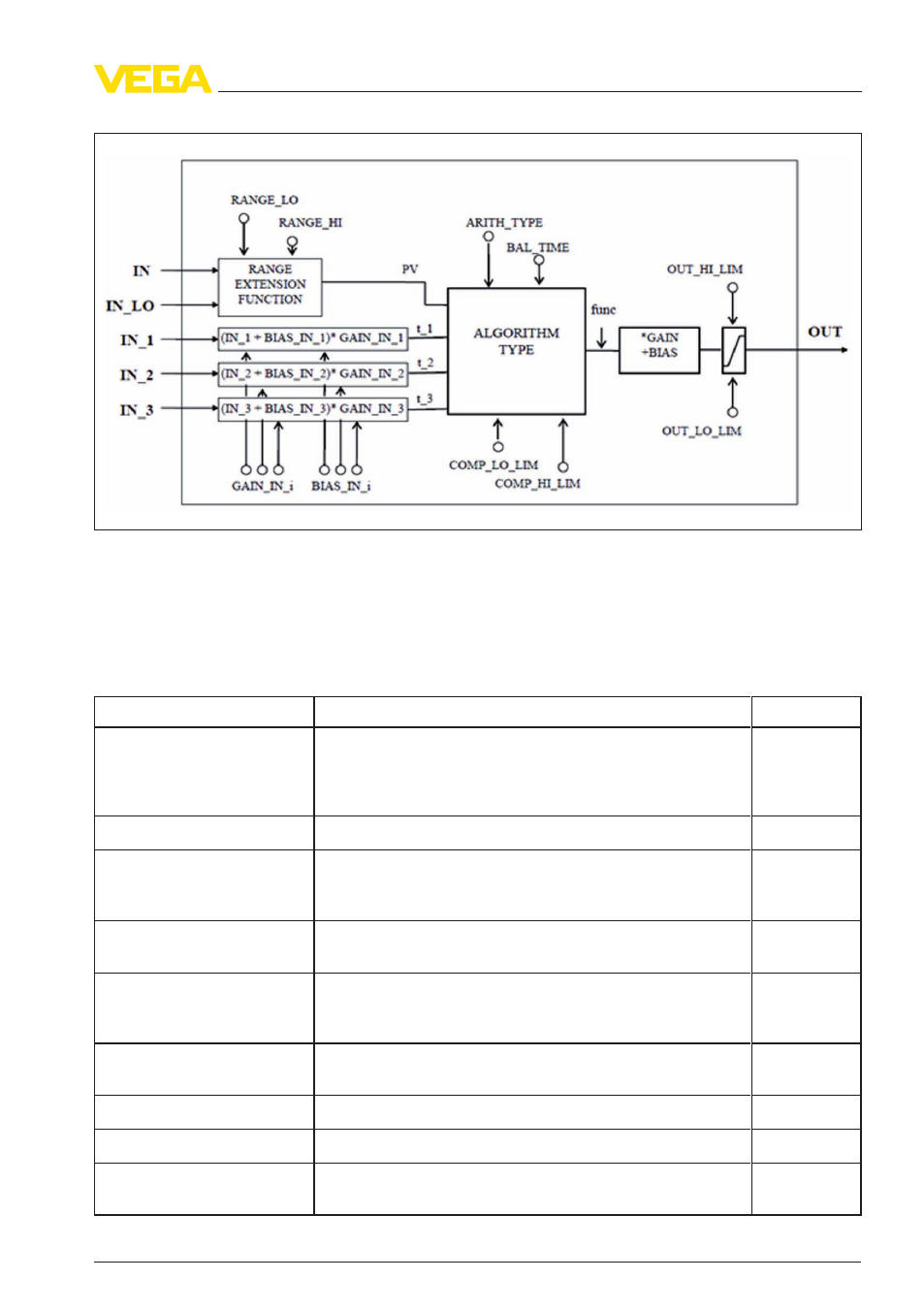

Рис. 58: Схема функционального блока Arithmetic
Список параметров
В следующей таблице приведен обзор используемых параметров.
FF desciptor Description Unit
PRIMARY_VALUE PRIMARY_VALUE (Linearized value). This is the process value
after min/max adjustment and Linearization with the status of
the transducer block. The unit is defined in
"
PRIMARY_VALUE_UNIT "
PRIMARY_VALUE_UNIT Selected unit code for " PRIMARY_VALUE "
SECONDARY_VALUE_1 This is the measured value after min/max adjustment with the
status of the transducer block. The unit is defined in
"
SECONDARY_VALUE_1_UNIT "
SECONDARY_VALUE_1_UNI-
T Selected unit code for " SECONDARY_VALUE_1 "
SECONDARY_VALUE_2 This is the distance value (" sensor_value " ) with the status of
the transducer block. The unit is defined in
"
SECONDARY_VALUE_2_UNIT "
FILL_HEIGHT_VALUE Filling height. The unit is defined in
"
FILL_HEIGHT_VALUE_UNIT "
FILL_HEIGHT_VALUE_UNIT Filling height unit
CONST_VALUE Constant value
SECONDARY_VALUE_1_TYP-
E Secondary value 1 type
