Инструкция по эксплуатации ZTE ZXR10 2900E series
Страница 97
Глава 5
Конфигурация услуг
Собственность корпорации ZTE. Конфиденциально. 85

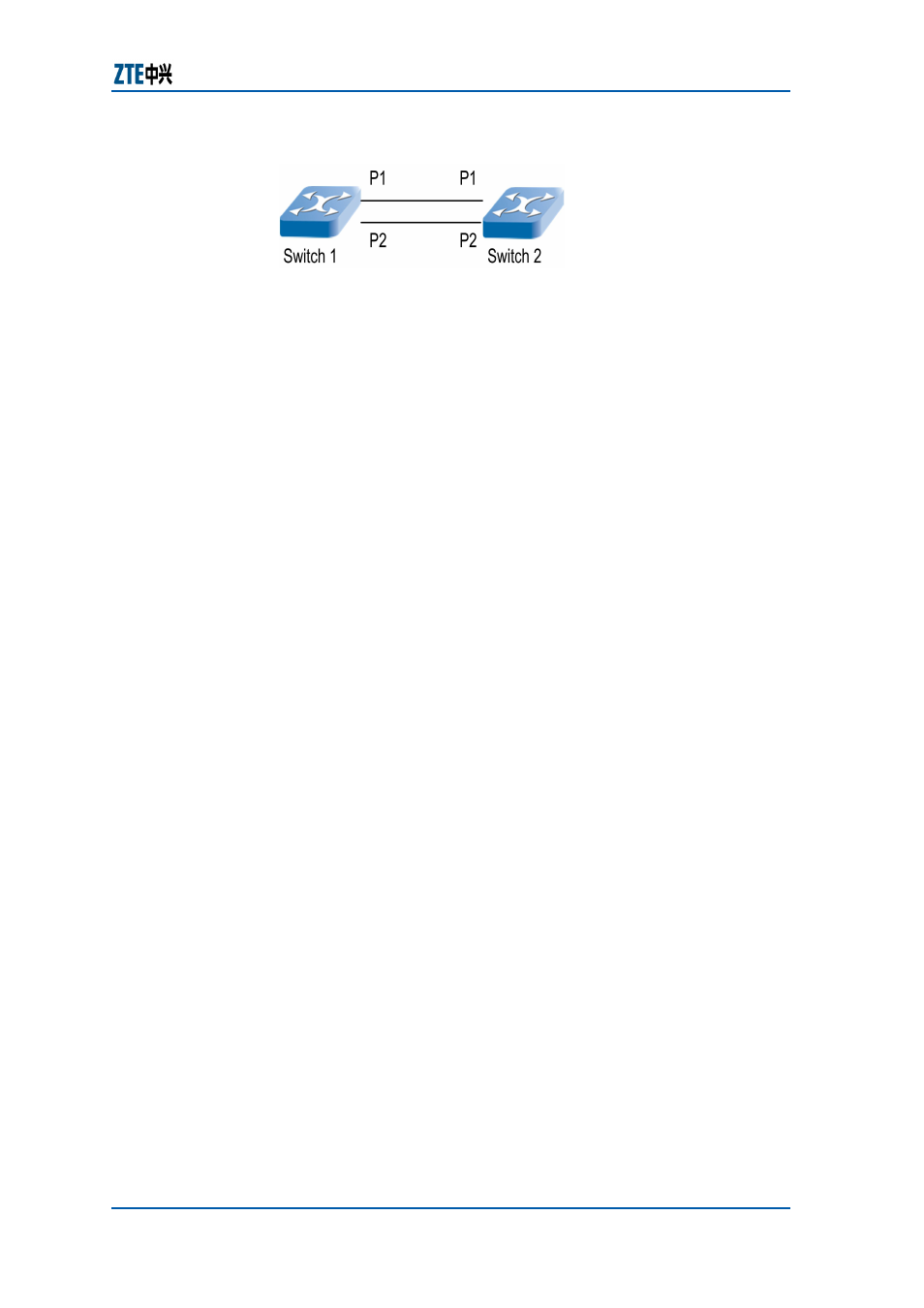

Р
И С
.
5 -9 .
П
Р И М Е Р К О Н Ф И Г У Р А Ц И И
S T P
Порядок конфигурации
zte(cfg)#set stp enable
/*enable the stp protocol of switch1 and switch2*/
zte(cfg)#set stp forceversion stp
/*set STP forceversion as stp*/
Проверка конфигурации
1. Проверьте состояние STP коммутатора 1 в общей
информации о системе.
zte(cfg)#show stp instance
Spanning tree enabled protocol stp
RootID:
Priority : 32768 Address : 00.d0.d0.02.00.54
HelloTime(s) : 2 MaxAge(s): 20
ForwardDelay(s): 15
Reg RootID:
Priority : 32768 Address : 00.d0.d0.02.00.54
RemainHops : 20
BridgeID:
Priority : 32768 Address : 00.d0.d0.02.00.54
HelloTime(s) : 2 MaxAge(s): 20
ForwardDelay(s): 15 MaxHops : 20
Interface PortId Cost Status Role Bound GuardStatus
--------- ------ ------- ------- ---------- ----- -----------
1 128.1 200000 Forward Designated SSTP None
2 128.2 200000 Forward Designated SSTP None
2. Проверьте состояние STP коммутатора 2 в общей
информации о системе.
zte(cfg)#show stp instance
Spanning tree enabled protocol stp
RootID:
Priority : 32768 Address : 00.d0.d0.02.00.54
HelloTime(s) : 2 MaxAge(s): 20
ForwardDelay(s):15
Reg RootID:
Priority : 32768 Address : 00.d0.d0.29.52.06
RemainHops : 20
BridgeID:
Priority : 32768 Address : 00.d0.d0.29.52.06
HelloTime(s) : 2 MaxAge(s): 20
ForwardDelay(s): 15 MaxHops : 20
Interface PortId Cost Status Role Bound GuardStatus
--------- ------ ------- ------- ---------- ----- -----------
1 128.1 200000 Forward Root SSTP None
2 128.2 200000 Discard Alternate SSTP None
