In models with " covered terminal block"
In mix models a cable supplied with a plug with your oven (H05 V V-F 3G 1.5 mm2)
If a cable without a plug is provided together with your oven (H05
VV-F3G 2,5 mm2)
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
Green/Yellow cable = E (Earth )
rO-o >
0-0
^o«o
-^0^0
Lo-o
—OihO
AC 220/230/240 V
If your oven is supplied without supply cord use schema-1 to choose
supply cord and use schema-ll for installation of cord.
The cable length should be max 2m long for isolation safety.

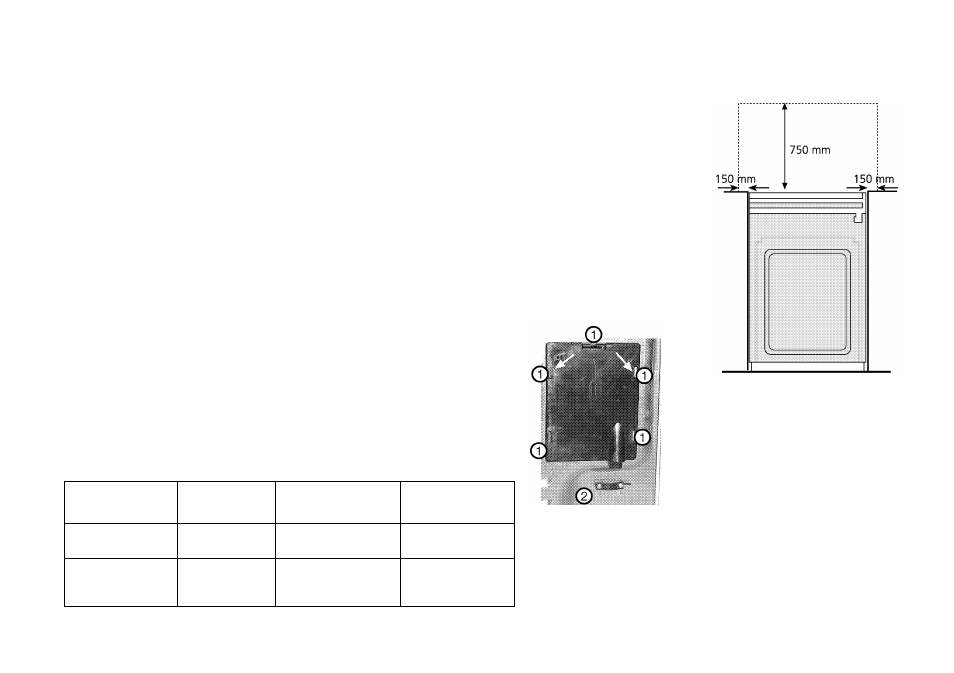

Open the terminal block cover (1).
Connect the supply cable according to wiring diagram on the rear cover.
«•"Assembly the terminal block cover to its place.
«•" The mains cable must pass through the cable clamp (2).
«•" Fix the supply cable to main body with two screw via cable tightener (2).
Your oven is suitable for single and three phase connection.
«•"The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed
in to position between the appliance and the wall and/or cabinet.
-
0-0
- 0-0
-o«o
^0^0
Lo-o
-QihO
3N AC 380/400/415 V
7^0-0
LO-O
-oo
^0^0
Lo-O
-ОЮ
2N AC 380/400/415 V
Schema
Connection Type Monophase Three phase
with Neutral Two phase
with Neutral
Voltage 220/230/240 V 380/400/415 V 380/400/415 V
Supply cord type
(max 2m long) 3x4.0 mm2
H05 V V-F
5x2,5 mm2
H05 VV-F 4x2,5 mm2
H05 V V-F
Schema I
Location for models having
any top gas burner
Adjacent side walls above the
appliance must not be nearer to the
cooker than 150 mm and should be
of heat resistant material. Leave at
least 750 mm clearance above the
hotplates.
The appliance should be located on
a level surface.
The two front feet can be adjusted
as required. To ensure that your
appliance is standing level adjust the
two front feet by turning clockwise
or counterclockwise until the product
is in firm contact with the floor.
