1. 355iEW^» (Wfl:)
(->20)
2. mm (HifiT)
(-►20.24)
3. nmmmnmm (snffiif^)
m^^Mmmmi^mmmnm
1
[
dc
in
]
m^i
<>
2
[DC OUT] m
TL«
100-240V •
50/60HZ) •
ENGLISH
The 3 Types of Power Supplies
To try out the Movie Camera at home, we recommend that
you use the AC Adaptor O
1. AC Adaptor (supplied)
•To use the Movie Camera indoors.
•To charge the Battery. (-► 20)
2. Battery (supplied)
•To use the Movie Camera outdoors, and also indoors
when there is no AC mains socket nearby. (-► 20,24)
3. Car Battery Charger (optional)
• To use the Movie Camera in a car.

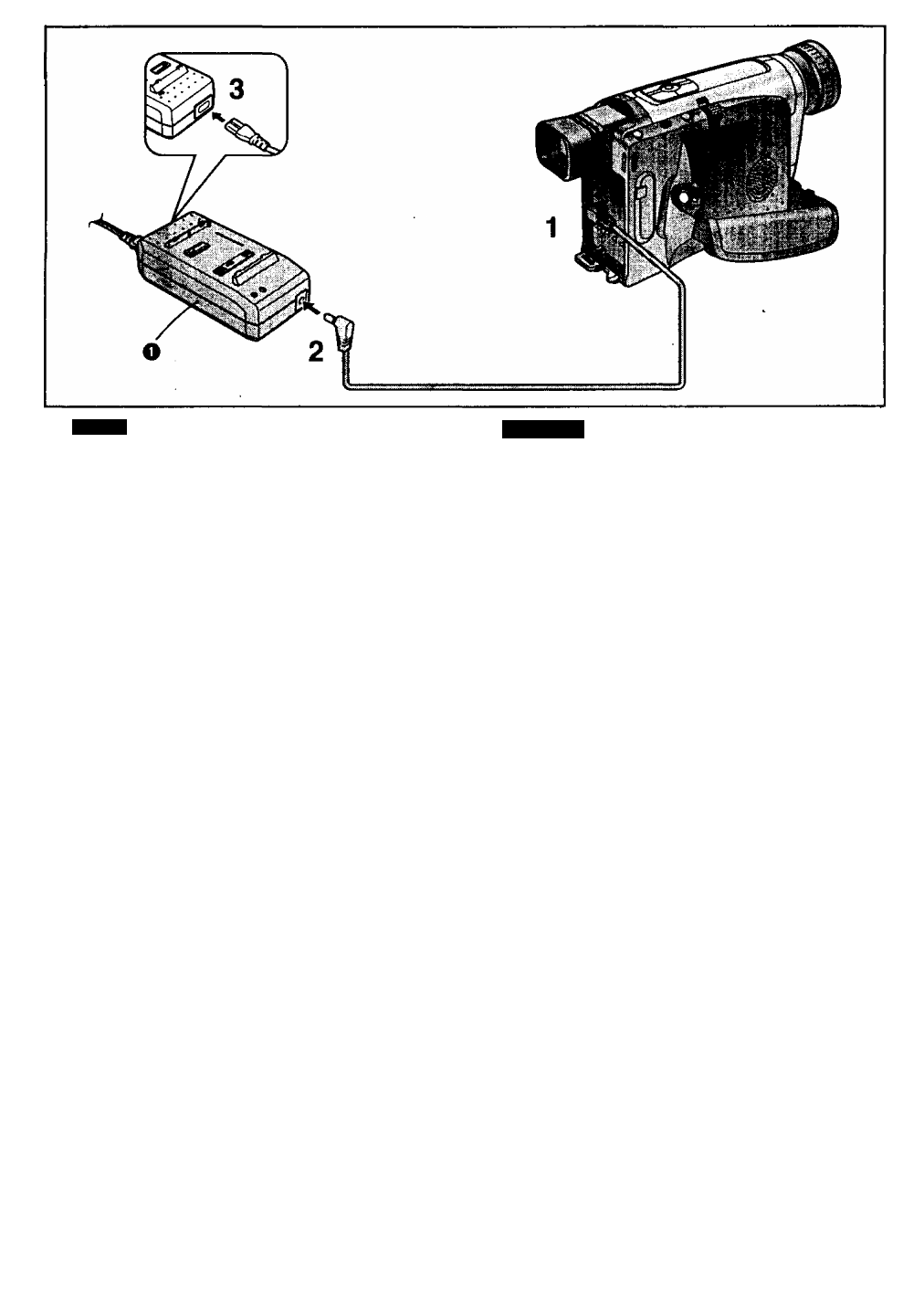

Using the AC Adaptor as Power Supply Unit
1
Connect the DC Input Lead to the [DC IN]
Socket on the Movie Camera.
2
Connect the other end of the cable to the
[DC OUT] Socket on the AC Adaptor.
3
Connect the AC Mains Lead to the AC Adaptor
and to an AC mains socket.
The AC Adaptor features automatic universal voltage
adjustment (AC 100-240 V, 50/60 Hz), therefore, there is no
need for any manual voltage adjustment for use in other
countries.
18
