Part names and functions
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
a
Remote control signal transmitter
Transmits infrared signals.
b
TRANSMIT
Lights up when a signal is output from the remote control.
c
CODE SET
Sets remote control codes for external component operations
(see page 46).
d
SOURCE POWER
Switches an external component on and off.
e
SLEEP
Switches the sleep timer operations (see page 22).
f
POWER
Switches this unit on and standby.
g
Input selection keys
h
Tuner keys
i
INFO
Changes the information shown on the front panel display
(see page 23).
j
Sound selection keys
Selects sound field programs (see page 24).
k
SCENE
Switches between linked sets of input sources and sound field
programs (see page 21).
l
SETUP
Displays the setup menu (see page 41).
m
OPTION
Displays the option menu (see page 35).
n
Cursors k / n / l / h/ENTER/RETURN
o
VOLUME +/–
Adjust the volume of this unit (see page 21).
p
DISPLAY
Changes the operation mode of the iPod connected to the
Yamaha iPod universal dock (see page 32).
q
MUTE
Turns the mute function of the sound output on and off
(see page 22).
r
External component operation keys
Operate recording, playback etc. of external components
(see page 46).
s
Numeric keys
Enter numbers.
t
TV control keys
Operate a monitor such as a TV or projector.

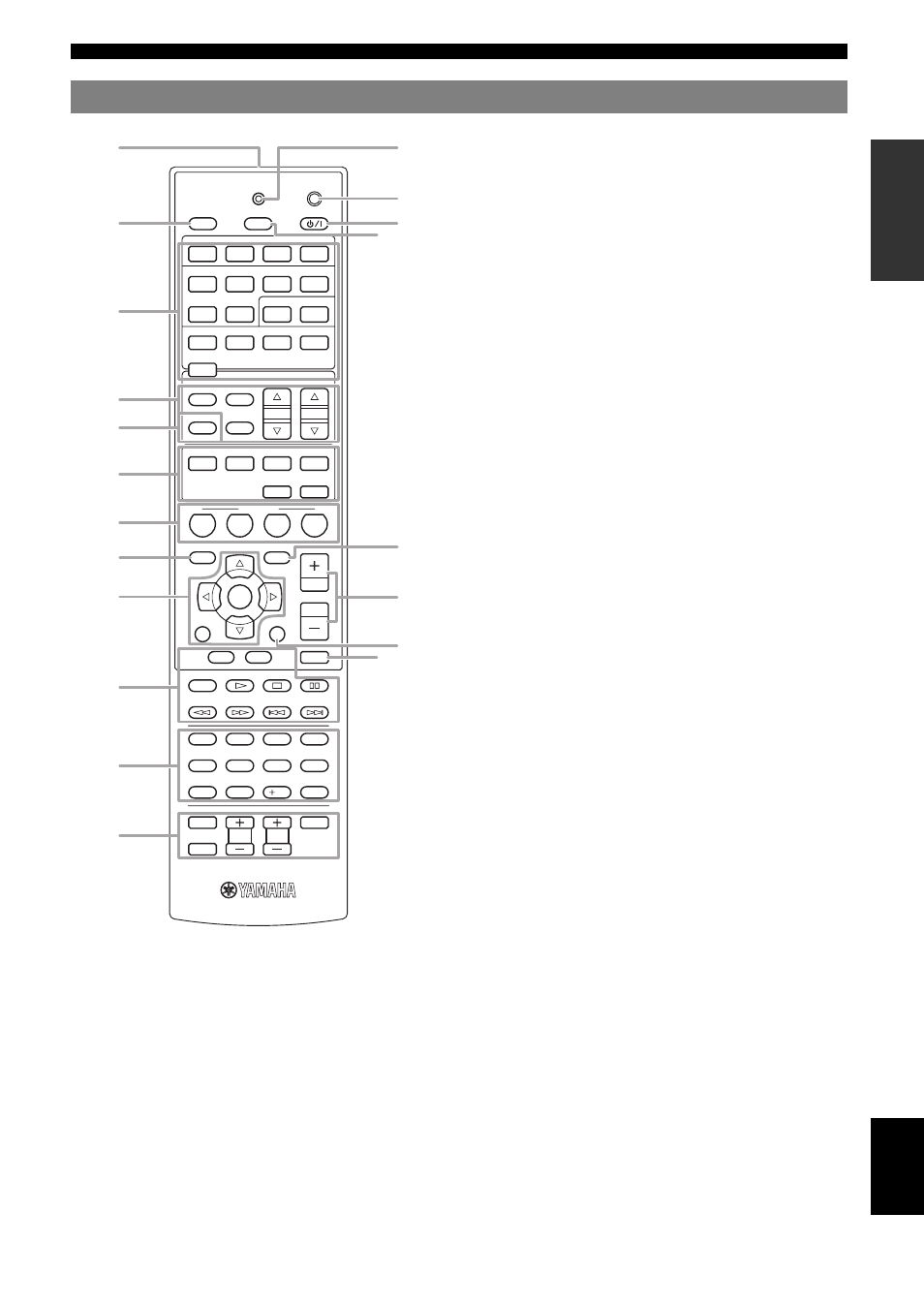

Remote control
POWER
1
2
3
4
1
2
5
6
1
2
3
4
7
8
5
6
9
0
10
1
2
3
4
POWER
SOURCE
V-AUX
[ A ]
[ B ]
DOCK
TUNER
FM
MOVIE
BD
DVD
TOP
MENU
MUSIC
SCENE
TV
CD
OPTION
SETUP
RETURN
REC
ENT
POWER
TV
TV VOL
INPUT
MUTE
TV CH
ENTER
VOLUME
DISPLAY
MUTE
MENU
RADIO
STEREO
ENHANCER SUR. DECODE
DIRECT
STRAIGHT
INFO
MEMORY
AM
PRESET
SLEEP
HDMI
AV
AUDIO
TRANSMIT
CODE SET
TUNING
a
d
e
f
g
h
j
k
l
m
o
p
q
r
s
t
b
c
n
i
HDMI 1-4
Selects HDMI inputs 1 through 4.
AV 1-6
Selects AV inputs 1 through 6.
AUDIO 1/2
Selects AUDIO inputs 1 and 2.
V-AUX
Selects the V-AUX jack on the front
panel of this unit.
[A]/[B]
To control external components using
the rExternal component
operation keys separately from
operations of this unit (see page 46).
DOCK
Selects a Yamaha iPod universal dock/
Bluetooth wireless audio receiver
connected to the DOCK terminal.
TUNER
Selects the FM/AM tuner.
FM
Switches a band between FM and AM.
AM
MEMORY
Presets radio stations.
PRESET k / n
Selects a preset station.
TUNING k / n
Changes tuning frequencies.
Cursors k / n / l / h
Select menu items displayed on the
front panel display or on a video
monitor, or change settings.
ENTER
Confirms a selected item.
RETURN
Returns to the previous screen or
ends the menu display.
