14
En
Connections
Connect a video monitor such as a TV or projector to an output terminal of this unit. You can select one of the following
three types according to the input signal format supported by the video monitor.
Note
• When you connect this unit to the video monitor, make sure that this unit is on standby.
■ To connect an HDMI video monitor
■ To connect component video monitor
Note
• Only video signals input from this unit via the component input terminal
are output from the component output terminal.
■ To connect composite video monitor
Note
• Only video signals input from this unit via the composite video input
terminal are output from the composite video output terminal.
To output sound of a TV from this unit, make connection
between the AV input 1-6 and an audio output terminal.
If the TV supports an optical digital output, we
recommend that you use the AV input 1. Connecting to the
AV input 1 allows you to switch an input source to the AV
input 1 with just a single key operation using the SCENE
function (see page 21).

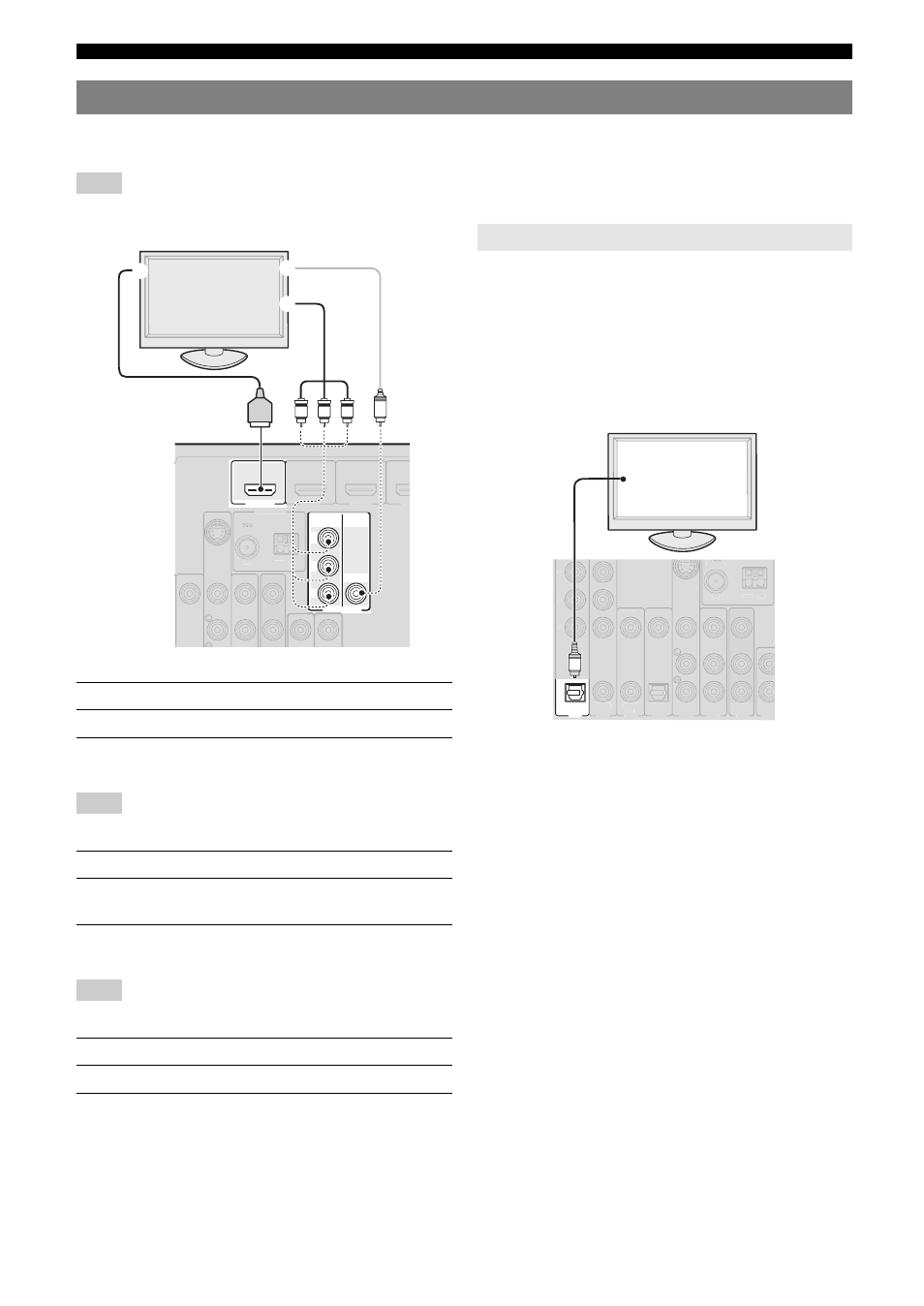

Connecting a TV monitor or projector
Jacks on components
Jacks on this unit
a HDMI input
HDMI OUT
Jacks on components
Jacks on this unit
b Component video output
MONITOR OUT
(COMPONENT VIDEO)
Jacks on components
Jacks on this unit
c Video input (composite)
MONITOR OUT (VIDEO)
P
R
P
B
Y
COMPONENT
VIDEO
HDMI OUT
VIDEO
MONITOR OUT
S VIDEO
UNBAL.
FM
GND AM
ANTENNA
HDMI 1
(BD/DVD)
HDMI 2
HD
HDMI
V
a
c
b
P
B
Y
P
R
TV, or projector
Outputting sound of a TV from this unit
OPTICAL
( TV )
AV 1
S VIDEO
UNBAL.
FM
GND AM
P
R
P
B
Y
AV 1
AV 2
COAXIAL
AV 3
(CD)
COAXIAL
OPTICAL
AV 4
AV 5
AV
OUT
VIDEO
AV 6
O
Digital output
(optical)
TV, or projector
