17
En
Connections
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
An indoor FM antenna and an AM loop antenna are
supplied with this unit. Connect these antennas properly to
the respective jacks.
y
• The supplied antennas are normally sensitive enough to obtain good
reception.
• Position the AM loop antenna away from this unit.
• If you cannot get good reception, we recommend that you use an outdoor
antenna. For more details, consult the nearest authorized Yamaha dealer
or service center.
• Always use the AM loop antenna even when the outdoor antenna is
connected.
Assembling the AM loop antenna
Connecting the AM loop antenna
The wires of the AM loop antenna have no polarity. You
can connect either wire to the AM terminal and the other
to the GND terminal.
After all connections are complete, plug the AC power
cable of this unit into an AC wall outlet.
1
Press ASTANDBY/ON (or fPOWER) to
turn on this unit.
2
Press ASTANDBY/ON (or fPOWER) again
to turn off this unit (standby mode).
y
• The unit needs a few seconds until ready to play back.
• You can also turn on this unit by pressing ISCENE (or kSCENE).
• This unit consumes a small amount of electricity even in the standby
mode. We recommend disconnecting the power cable from the AC wall
outlet.

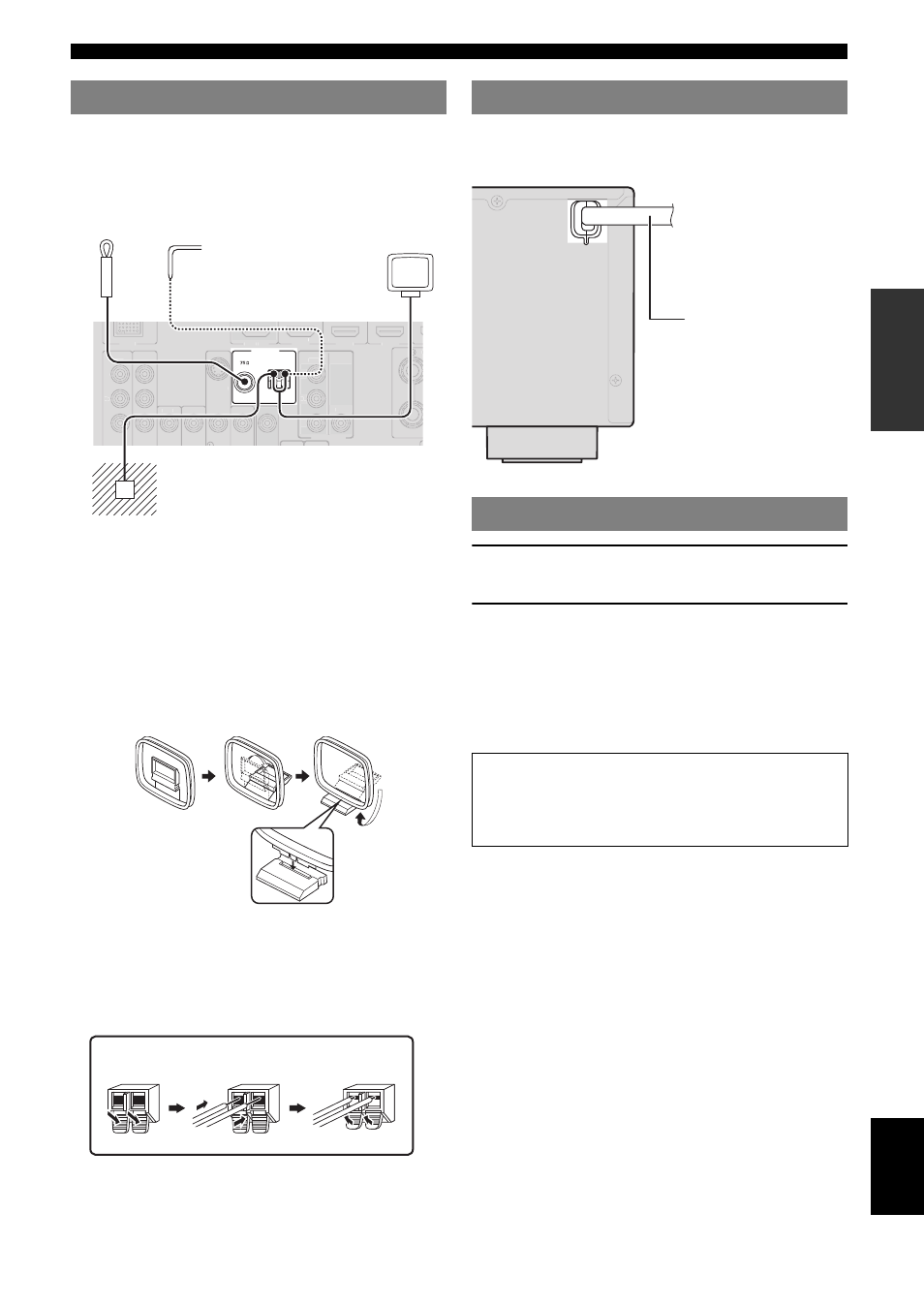

Connecting the FM and AM antennas
UNBAL.
FM GND AM
ANTENNA
S VIDEO
P R
P B
Y
COMPONENT
VIDEO
DOCK
VIDEO
P R
P B
Y
VIDEO
HDMI HDMI 1
(BD/DVD)
HDMI 2 HDMI 3 OUT
VIDEO
MONITOR OUT
F
COMPONENT
Outdoor AM antenna
Connect a 5 to 10 m (16
to 33 ft) vinyl-covered
wire, and extend it
outdoors (use the AM
loop antenna together
with this antenna).
Ground (GND terminal)
The GND terminal is not for earth
grounding.
To reduce noises, connect a ground bar or a
vinyl-covered wire with a copper plate at its
tip, and place it in the moist ground.
Indoor FM antenna AM loop
antenna
Press and hold Release Insert
Connecting the power cable
Turning this unit on and off
Caution
Do not unplug this unit while it is turned on. Doing so
may damage this unit or cause the settings of this unit
to be saved incorrectly.
To the AC wall outlet
Power cable
