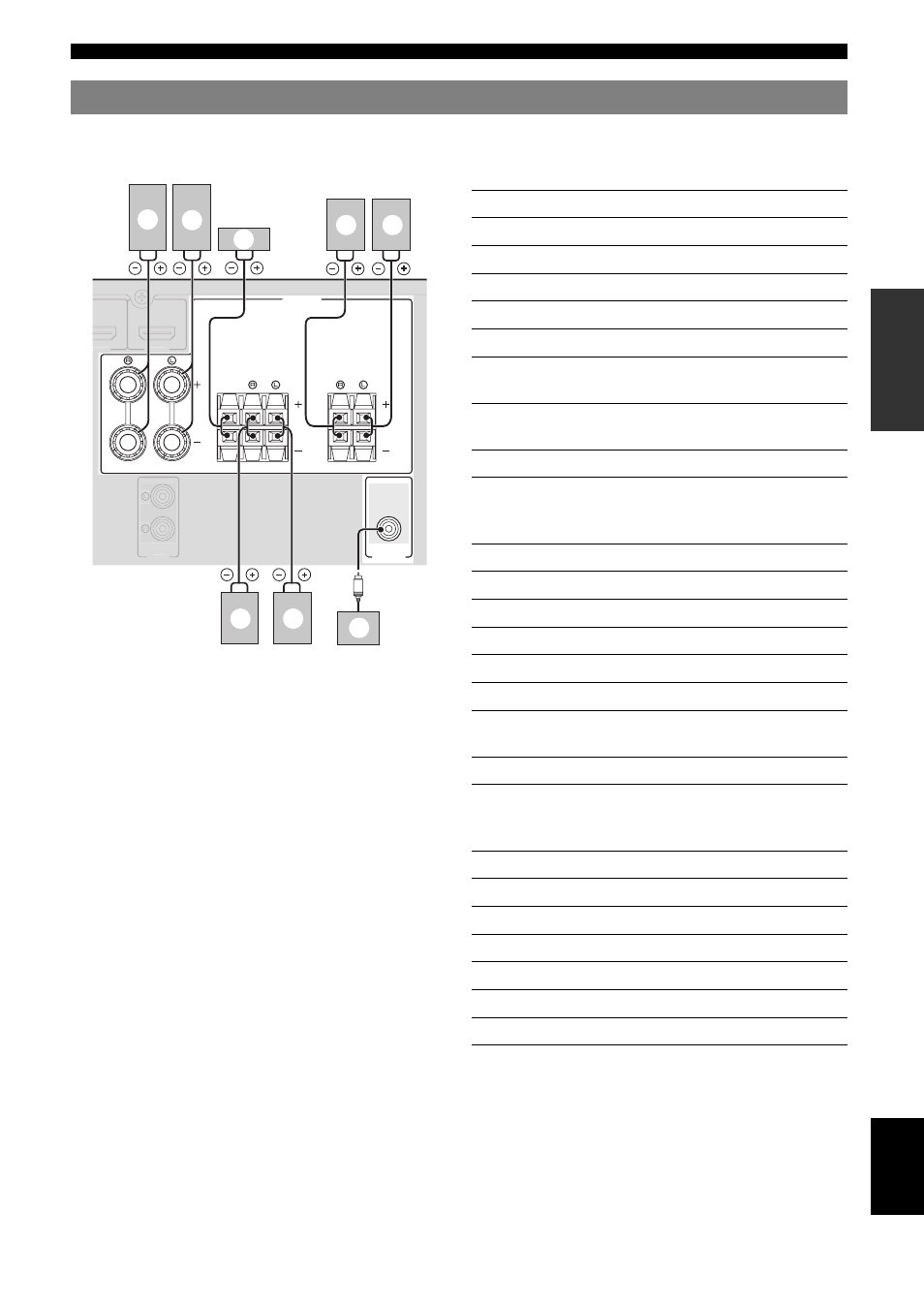

When you connect speakers, connect them to the respective terminals as follows, according to your speaker layout.
■ 7.1-channel
■ 6.1-channel
■ 5.1-channel
Connecting speakers
SPEAKERS
FRONT
CENTER SURROUND
PRE OUT
SUBWOOFER
BACK/ BI-AMP SURROUND
DMI 3 HDMI 4
AUDIO
OUT
e d
b a
c
g f
h
Speakers Jacks on this unit
a Front speaker L FRONT (L)
b Front speaker R FRONT (R)
c Center speaker CENTER
d Surround speaker L SURROUND (L)
e Surround speaker R SURROUND (R)
f Surround back speaker L SURROUND
BACK/BI-AMP (L)
g Surround back speaker R SURROUND
BACK/BI-AMP (R)
h Subwoofer SUBWOOFER
Speakers Jacks on this unit
a Front speaker L FRONT (L)
b Front speaker R FRONT (R)
c Center speaker CENTER
d Surround speaker L SURROUND (L)
e Surround speaker R SURROUND (R)
f Surround back speaker SURROUND
BACK/BI-AMP (L)
h Subwoofer SUBWOOFER
Speakers Jacks on this unit
a Front speaker L FRONT (L)
b Front speaker R FRONT (R)
c Center speaker CENTER
d Surround speaker L SURROUND (L)
e Surround speaker R SURROUND (R)
h Subwoofer SUBWOOFER
