5
En
Part names and functions
English
INTR
ODUCTION
AD
DITIONAL
INFORMA
T
ION
APPENDIX
PRE
P
ARA
T
ION
BA
S
IC
OPERA
T
ION
AD
V
ANCED
OPERA
T
ION
a DOCK terminal
For connecting an optional Yamaha iPod universal dock (YDS-
11) or Bluetooth wireless audio receiver (YBA-10)
(see page 16).
b HDMI OUT/HDMI 1-4
For connecting an HDMI-compatible video monitor or external
components for HDMI inputs 1-4 (see page 15).
c ANTENNA jack
For connecting supplied FM and AM antennas (see page 17).
d SPEAKERS terminal
For connecting front right and left, center, surround and
surround back speakers (see page 11).
e AV 1-6
For connecting external components for audio/visual inputs 1-6
(see page 15).
f AV OUT
Outputs audio/visual signals from a selected analog input source
to an external component (see page 16).
g AUDIO 1/2
For connecting external components for audio inputs 1-2
(see page 16).
h MONITOR OUT
Outputs visual signals from this unit to a video monitor, such as
a TV (see page 14).
i AUDIO OUT
Outputs audio signals from a selected analog input source to an
external component (see page 16).
j PRE OUT
For connecting a subwoofer with a built-in amplifier
(see page 11).
k Power Cable
For connecting this cable to an AC wall outlet (see page 17).

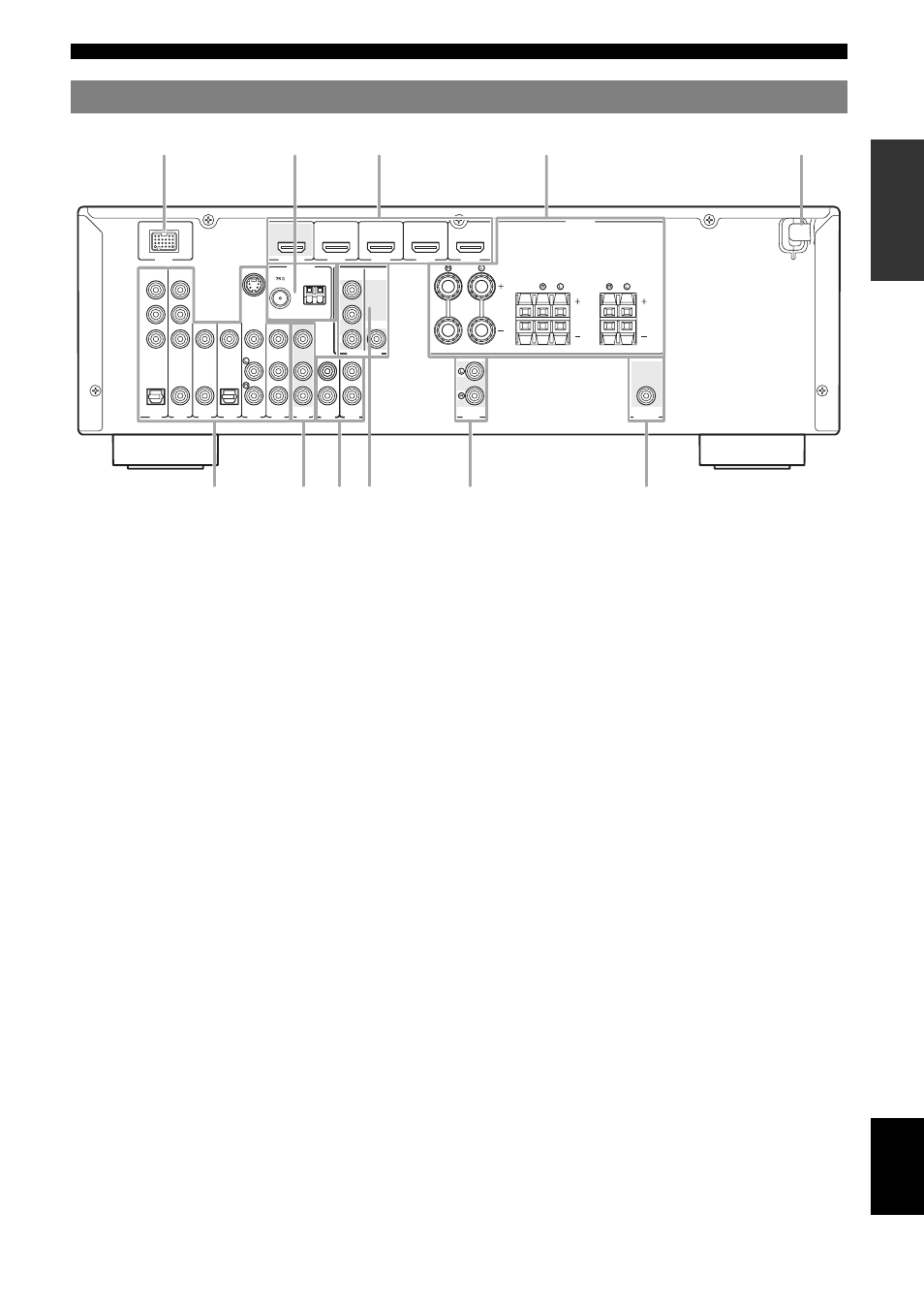

Rear panel
S VIDEO
UNBAL.
FM GND AM
ANTENNA
P R
P B
Y
COMPONENT
VIDEO
SPEAKERS
DOCK
VIDEO
P R
P B
Y
OPTICAL
( TV )
AV 1 AV 2
COAXIAL
AV 3
(CD)
COAXIAL OPTICAL
AV 4 AV 5
AV
OUT AUDIO1 AUDIO2
VIDEO
HDMI HDMI 1
(BD/DVD)
HDMI 2 HDMI 3 HDMI 4 OUT
AV 6
VIDEO
MONITOR OUT
AUDIO
OUT
FRONT
CENTER SURROUND
PRE OUT
SUBWOOFER
BACK/ BI-AMP SURROUND
COMPONENT
a b c
e f h g i j
k d
