A STANDBY/ON
Switches this unit between standby and on (see page 17).
B PHONES jack
For plugging headphones (see page 22).
C INFO
Changes information display screens on the front panel display
(see page 23).
D MEMORY
Registers FM/AM stations as preset stations (see page 29).
E PRESET l / h
Selects an FM/AM preset station (see page 29).
F FM
Sets the FM/AM tuner band to FM (see page 28).
G AM
Sets the FM/AM tuner band to AM (see page 28).
H TUNING l / h
Changes FM/AM tuner frequencies (see page 28).
I SCENE
Switches between linked sets of input sources and sound field
programs (see page 21).
J TONE CONTROL
Adjusts high-frequency/low-frequency output of speakers/
headphones (see page 22).
K PROGRAM l / h
Changes sound field programs (see page 24).
L STRAIGHT
Changes a sound field program to straight decoding mode
(see page 27).
M DIRECT
Changes a sound field program to direct mode (see page 22).
N INPUT l / h
Selects an input source (see page 21).
O OPTIMIZER MIC jack
For connecting the supplied optimizer microphone and adjusting
output characteristics of speakers (see page 18).
P VOLUME control
Controls the volume of this unit (see page 21).
Q VIDEO (VIDEO AUX) jack
For connecting the video output cable of a camcorder or game
console (see page 16).
R AUDIO L/R (VIDEO AUX) jack
For connecting the audio output cable of a camcorder or game
console (see page 16).
S PORTABLE (VIDEO AUX) jack
For connecting the audio output cable of a portable music player
(see page 16).
T Front panel display
Displays information on this unit (see page 6).
U HDMI THROUGH
Lights up during pass-through output of an HDMI signal input
to this unit while this unit is on standby (see page 44).
Part names and functions

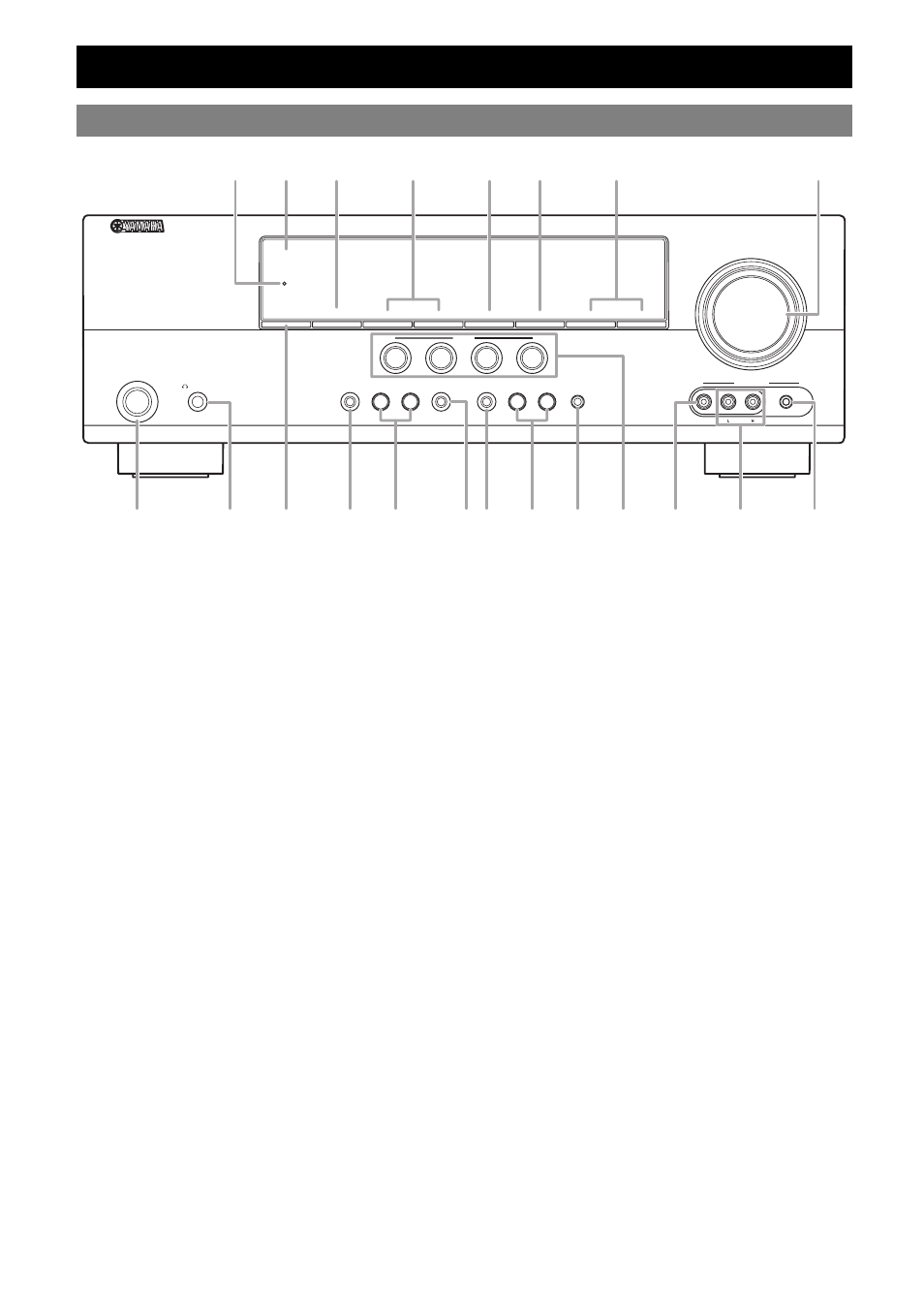

Front panel
PHONES
SILENT CINEMA
TONE CONTROL PROGRAM STRAIGHT INPUT OPTIMIZER MIC
VIDEO AUDIO PORTABLE
THROUGH
VIDEO AUX
VOLUME
HDMI
EFFECT
l h l h
BD/DVD TV CD RADIO
SCENE
INFO MEMORY PRESET l h l h TUNING FM AM
STANDBY
/ON
DIRECT
A
T D G
J M C O K N
U P F E H
I R B L Q S
