7
English
●

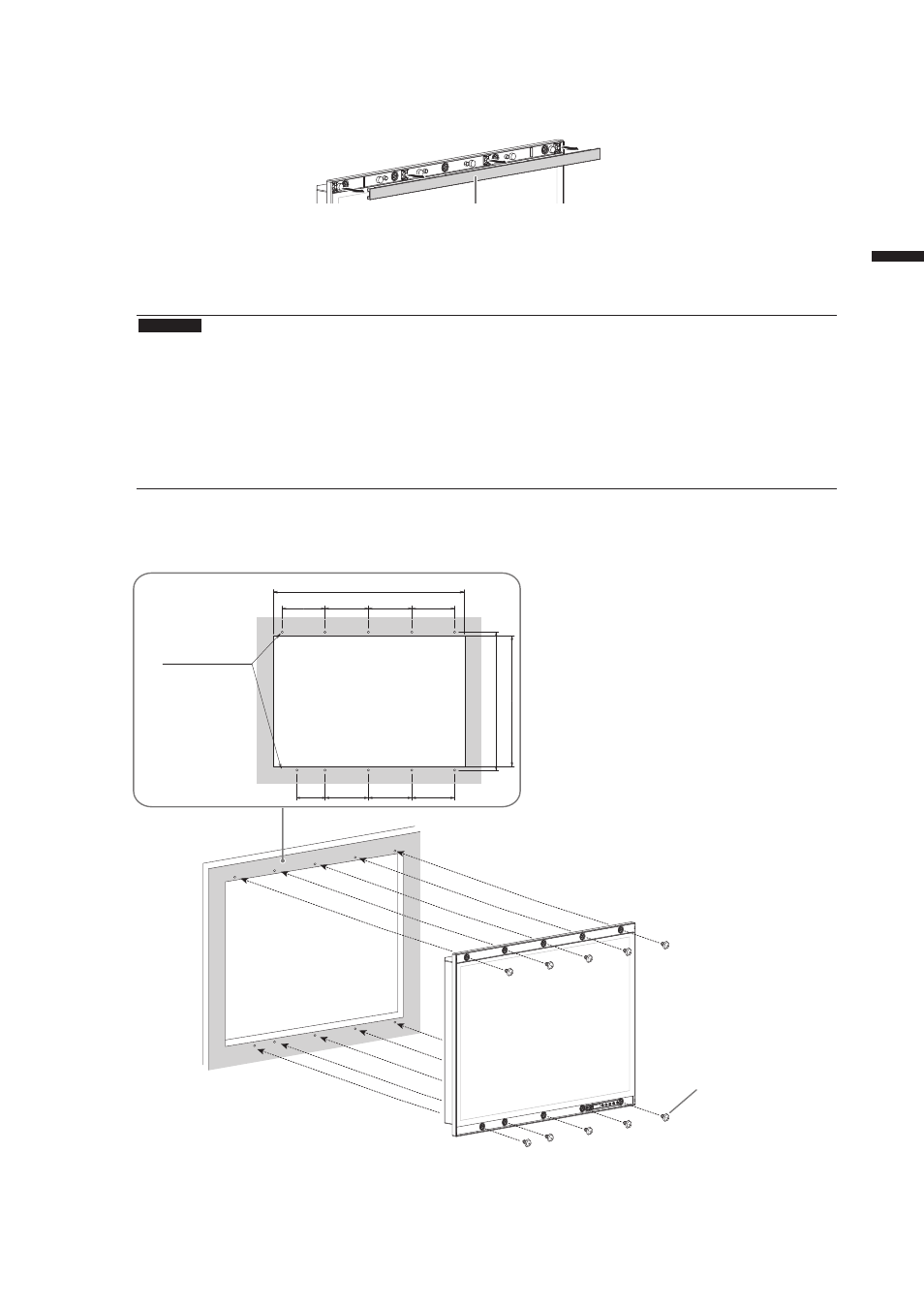

How to assemble
1.
Remove the screw covers installed on the monitor.
Screw cover (top/bottom)
2.
Fasten the screws through the enclosure mounting holes of the monitor (5
holes on top/bottom) into the enclosure (recommended torque: 1.6 to 1.8 N•m).
Attention
• The mounting screws are not supplied. Prepare 5 mm nominal diameter screws (10 pcs.) separately for the
assembly enclosure.
• The installation angles (tilt) available for this product are shown below.
- 0° (upright) to 60° upward tilt
• Install the monitor away from the compasses. Otherwise, an error may occur in the compasses.
The safe distance between the monitor and compass is shown below.
- Standard compass: 1.50m
- Steering compass: 1.00m
●
Mounting conditions
• Panel opening dimensions / Clearance between the screw holes (unit: mm)
Screw
(5 mm nominal
diameter)
410
133
133
135
429
597
135
90
133
135
135
A vent is located at the bottom of
the monitor. To maintain sufficient
space,ensure that the housing it is fitted in
is of a thickness of 7 mm or less.
Mounting holes
(5 holes on top/bottom)
nominal diameter: 5
