Connections
Connecting Audio from External Components

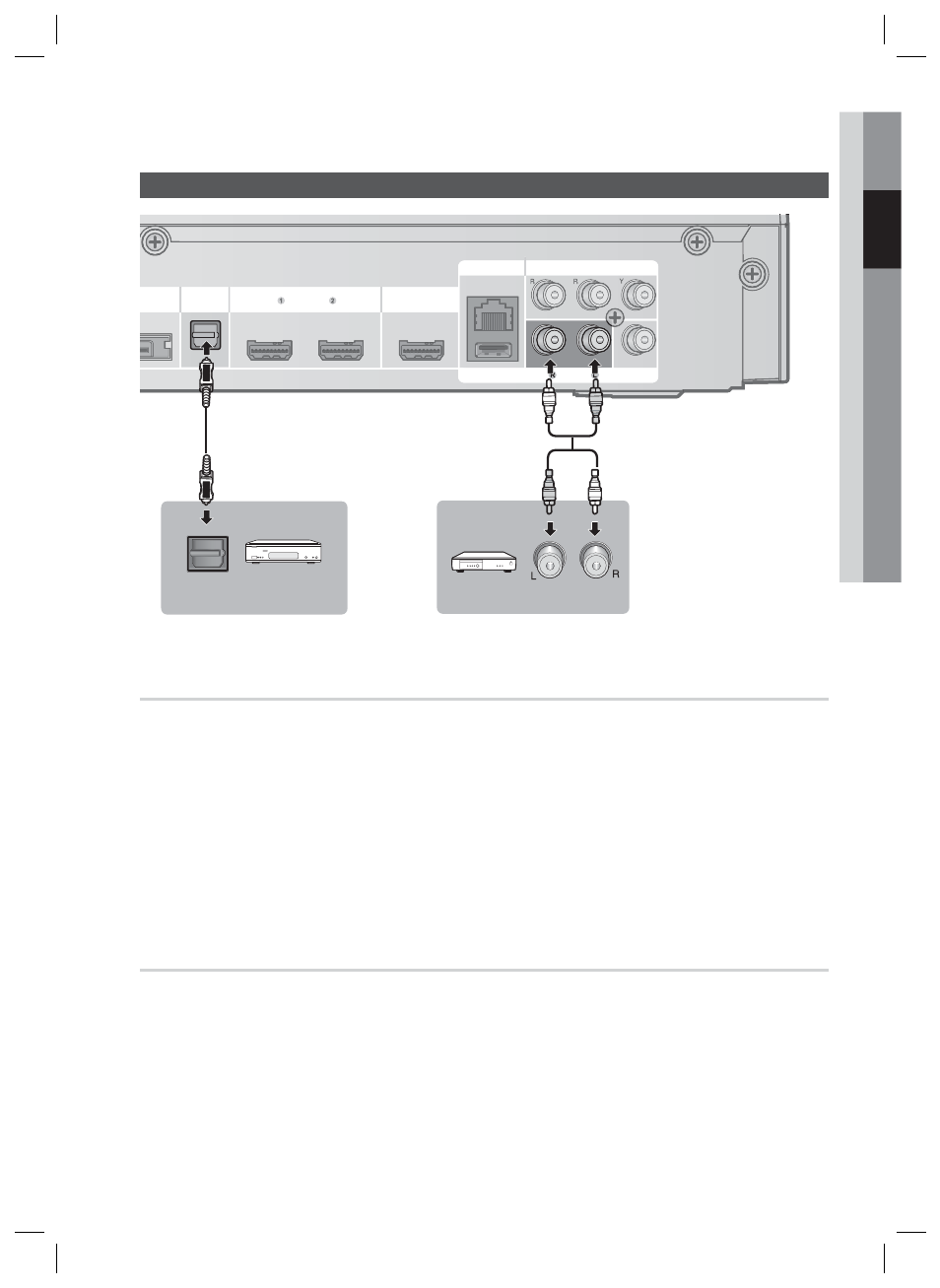

OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital
component.
Press the FUNCTION button to select D.IN input.
The mode switches as follows : BD/DVD D. IN AUX HDMI 1 HDMI 2 FM
NOTE
To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.
This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.
This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.
This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported.
AUX : Connecting an External Analogue Component
Analogue signal components such as a VCR.
Connect AUX IN (Audio) on the product to the Audio Out of the external analogue component.
Be sure to match connector colours.
Press the FUNCTION button to select AUX input.
The mode switches as follows : BD/DVD D. IN AUX HDMI 1 HDMI 2 FM
NOTE
You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of
the VCR to this product.
