Getting Started
1
5.1 CHANNEL SPEAKER OUTPUT
CONNECTORS
Connect the front, centre, surround, subwoofer speakers.
2
COOLING FAN
The cooling fan supplies cool air to the product to prevent overheating
and always revolves when the power is on.
3
FM 75 COAXIAL JACK
Connect the FM antenna.
4
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the product and the
optional wireless receiver module.
5
EXTERNAL DIGITAL OPTICAL IN JACKS
(OPTICAL)
Use this to connect external equipment capable of digital output.
6
HDMI IN JACKS
Receives digital video and audio signals simultaneously using an
HDMI cable.
7
HDMI OUT JACK
Use an HDMI cable, connect this HDMI output terminal to the HDMI
input terminal on your TV for the best quality picture.
8
WIRELESS LAN JACK
Can be used for network based services (see pages 55~60),
BD-LIVE and software upgrade with a wireless LAN adapter.
9
LAN TERMINAL
Can be used for network based services (see pages 55~60),
BD-LIVE and software upgrade under the network connection.
10
AUX IN JACKS
Connect to the 2CH analogue output of an external device
(such as a VCR)
11
COMPONENT VIDEO OUT JACKS
Connect a TV with Component video inputs to these jacks.
12
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT
Jack on this product.
CAUTION
Ensure a minimum of 10 cm of clear space on all sides of the cooling fan when installing the product.
Do not obstruct the cooling fan or ventilation holes.
!

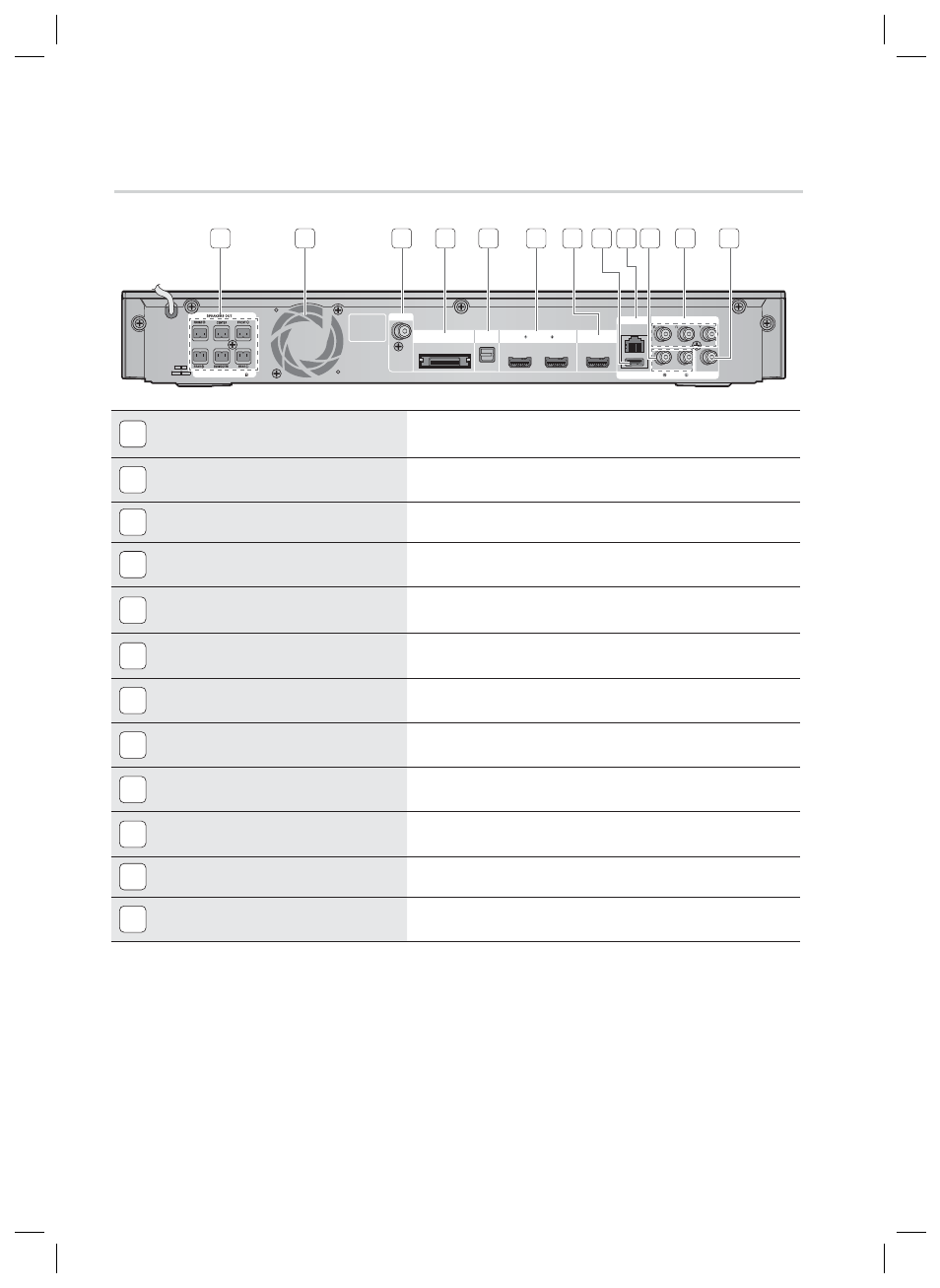

Rear Panel
SPEAKER IMPEDANCE : 3
HDMI IN
DIGITAL
AUDIO IN
WIRELESS
FM ANT
COMPONENT OUT
VIDEO OUT
LAN
AUX IN
OPTICAL
HDMI OUT
WIRELESS LAN
1
3
4
8
2
5
7
9
11
10
6
12
