Connections

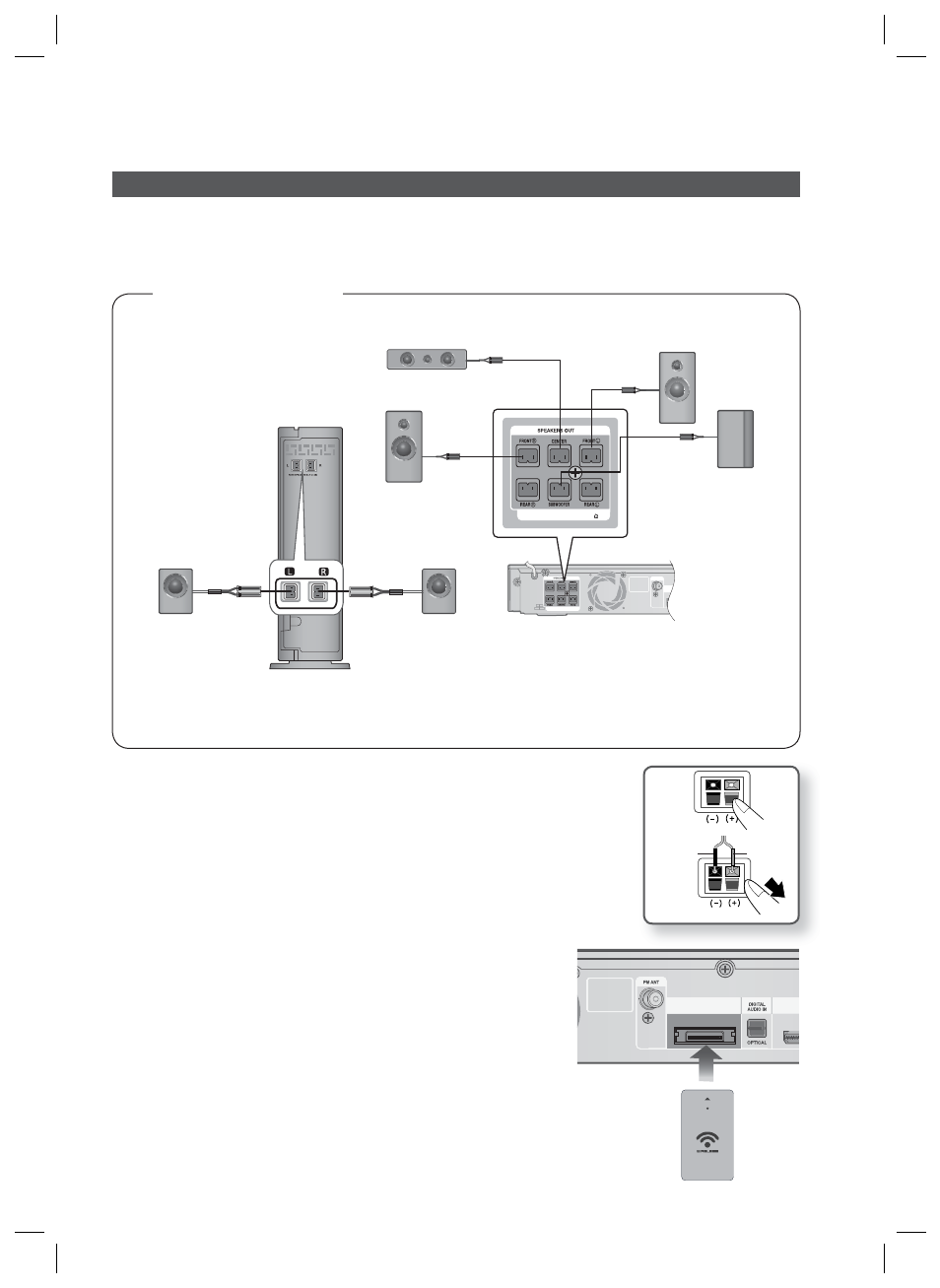

Connecting the Optional Wireless Receiver Module

To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and
TX card from your Samsung retailer.

● This product should be connected with the SWA-5000 only.

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire into the
red terminal (+), and then release the tab.

Connect the connecting plugs to the back of the product by matching the
colours of the speaker plugs to the speaker jacks.

With the product turned off, insert the TX card into the
TX Card Connection (WIRELESS) on the back of the product.

Hold the TX card so that the label "WIRELESS" faces upward
and insert the card into the port.
The TX card enables communication between the product and
the wireless receiver module.

Connect the left and right surround speakers to the wireless Receiver
module.

Plug the power cord of the wireless Receiver module in the wall
outlet .

1.

2.

3.

4.

5.

6.

Black

Red

W

FM ANT

SPEAKER IMPEDANCE : 3

FM ANT

SPEAKER IMPEDANCE : 3

SPEAKER IMPEDANCE : 3

Front Speaker (R)

Subwoofer

Centre Speaker

Wireless Receiver Module

Surround
Speaker (L)

In Case of HT-C5500

Front Speaker (L)

Surround
Speaker (R)

* Refer to page 18 for the speakers of HT-C5550.

WIRELESS

TX card
