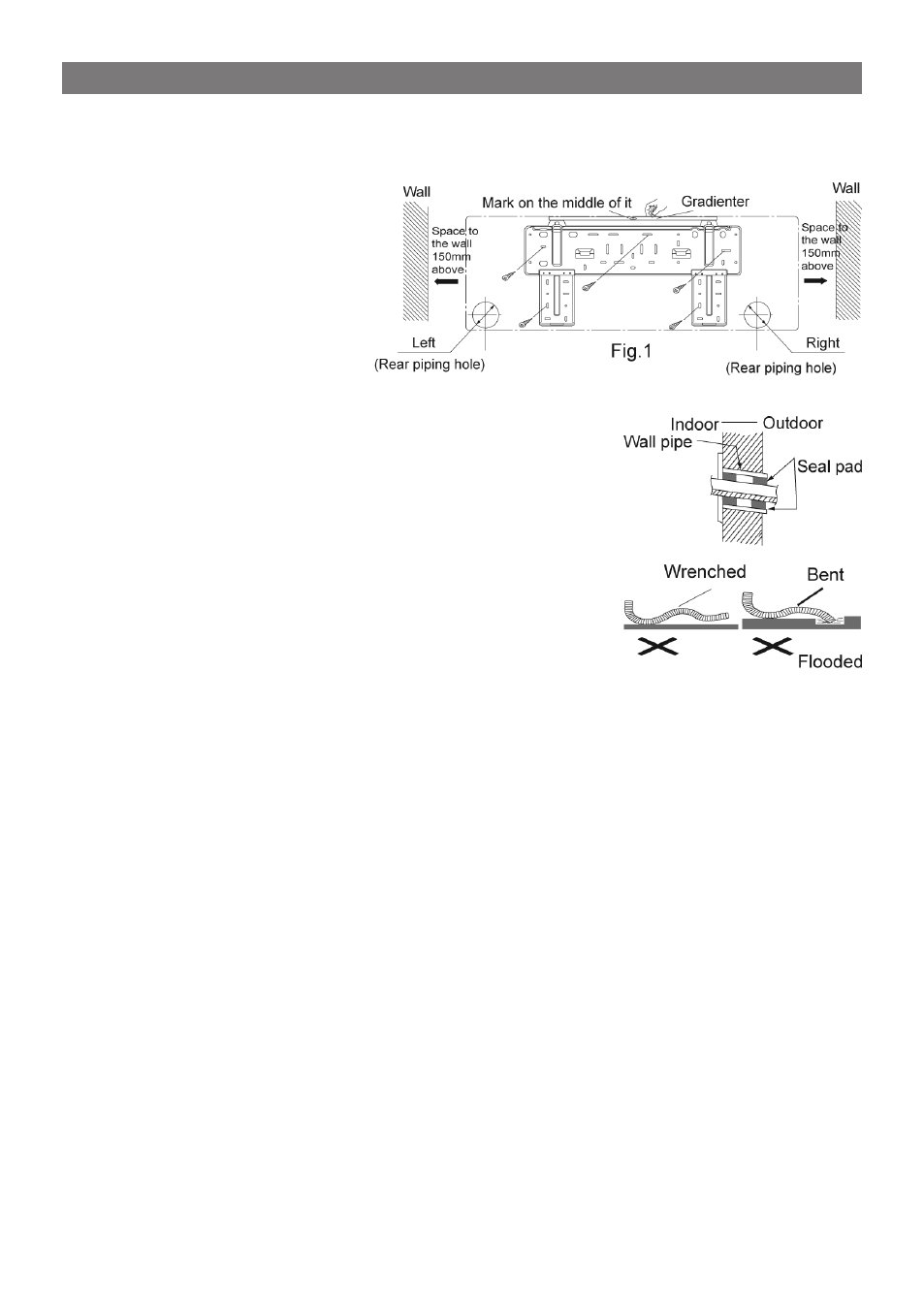

Install the rear panel
1. Always mount the rear panel horizontally. As the water drainage pipe at the
left, when adjusting the rear panel, this side should not be too high; the right
side should be slightly high.
2. Fix the rear panel on the se-
lected location
3. Be sure that the rear pan-
el has been fixed firmly
enough to withstand the
weight of an adult of 60
kg, furthermore, the weight
should be evenly shared by
each screw.
Install the piping hole
1. Make the piping hole in the wall at a slight downward
slant to the outdoor side.
2. Insert the piping-hole sleeve into the hole to prevent
the connection piping and wiring from being dam-
aged when passing through the hole.
Install the water drainage pipe
1. For well draining, the drain hose should be placed at
a downward slant.
2. Do not wrench or bend the drain hose or flood its end
by water.
3. When the long drainage hose passing through indoor, should wrap the insula-
tion materials.
Connect indoor and outdoor electric wires
1. Open the front panel upwardly.
2. Screw off the fixing screw of cover plate and screw off cover plate.
3. Put the power connection cable through the back of indoor unit wire hole and
take it out.
4. All the wiring should be connected according to the circuit diagram on the
unit.
5. Put the power connection cable the section, which with sheath into wire groove,
and cover the cover plate, screw on the fixing screw, tighten the connection
wire.
6. Cover the front panel cover.
7. For the cooling and heating unit, signal control wire can be passed through the
connection of connector and indoor unit, and use the wire clip that is under the
body case, tighten the signal control wire.
NOTE: When connecting the electric wire if the wire length is not enough, please
contact with the authorized service shop to buy a exclusive electric wire that is
long enough and the joint on the wire are not allowed.
• The electric wiring must be correctly connected, wrong connection may cause
spare parts malfunction.
• Tighten the terminal screw in order to prevent loose.
• After tighten the screw, slightly pull the wire and confirm whether is it firm or
not.
INSTALL INDOOR UNIT
