S-VIDEO IN
S-VIDEO OUT
til 5;
aii-
iiif
-
1
■ )t§aisig«aigssii
«1“
O(Wft) <■
H
o (-*40)
i
)t§[CAMERA/OFFA/CR]ll0BSt£M=i[OFF] ■>
^
' fiSc«rp;/f/TN ■ )i§^isT o
ENGLISH

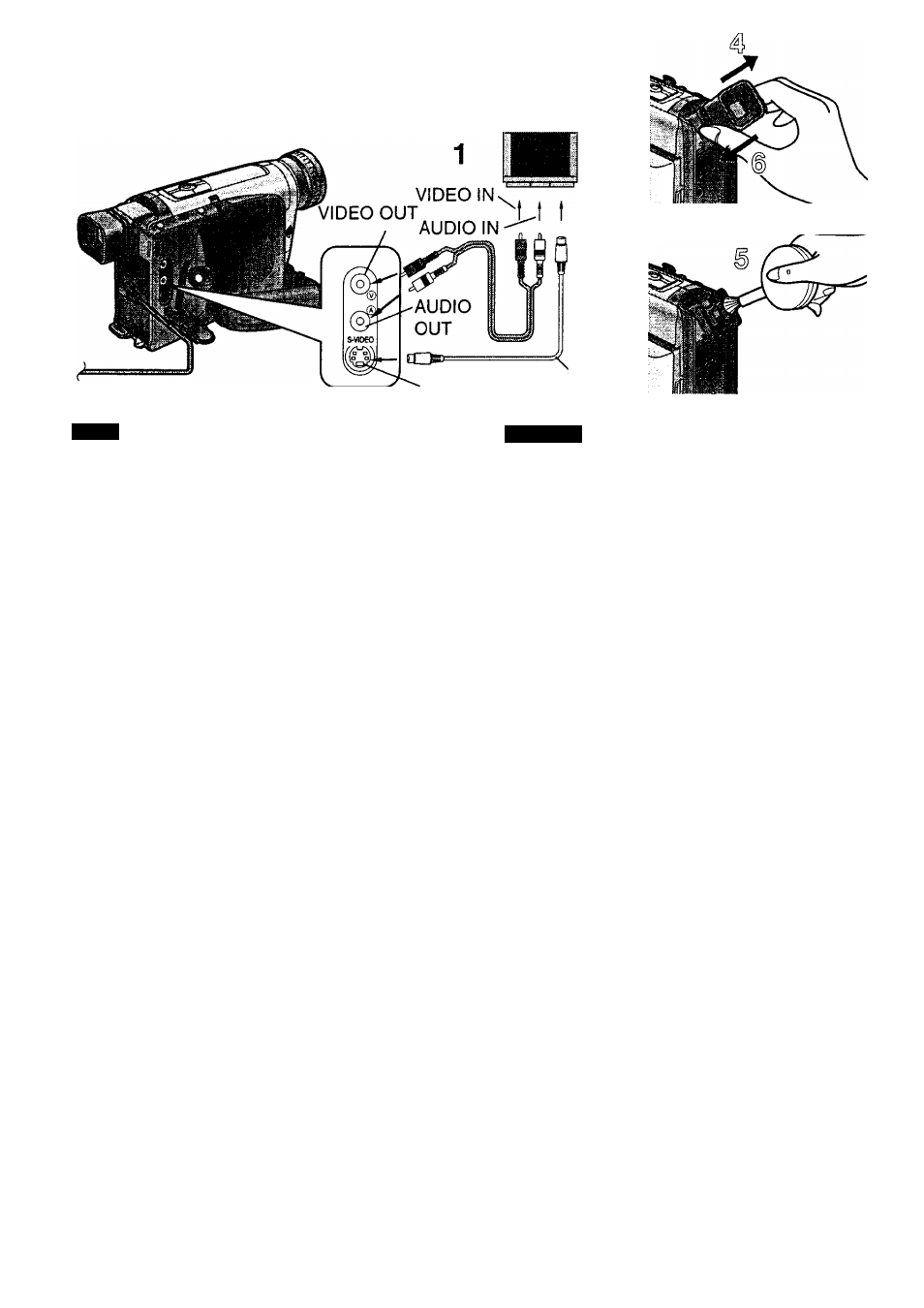

Watching Playback on a TV
By connecting the Movie Camera to a TV, you can watch
playback of the recorded scenes on the TV screen.
Before connecting, turn off both the Movie Camera and the
TV for safety’s sake.
1
Use the AV Cable (supplied) to connect the
Movie Camera with the TV.
• If your TV is equipped with an S-Video Socket, also
connect the S-Video Cable O (supplied).
After Use
H
Take out the cassette. (-^ 40)
2
Set the [CAMERA/OFF/VCR] Switch to [OFF].
3
Disconnect the AC Adaptor or remove the
Battery.
Cleaning the Finder
If dust has entered the Finder...
Push the Buttons on both sides of the Finder
and remove it in the direction of the arrow.
Remove dust with a blower brush (not
supplied).
• If you use a cotton swab or similar to clean the inside
of the Finder, use it very carefully to prevent scratching
the screen inside the Finder.
vo) To re-attach the Finder, push it forward onto
the Finder Tube until it locks with a click.
Cleaning the LCD Monitor
Clean the LCD Monitor with a soft cloth or a blower brush.
Cleaning the Movie Camera Body
Wipe it with a soft cloth.
Cleaning the Lens
Clean the lens with a soft cloth or a blower brush.
-72-
