ENGLISH

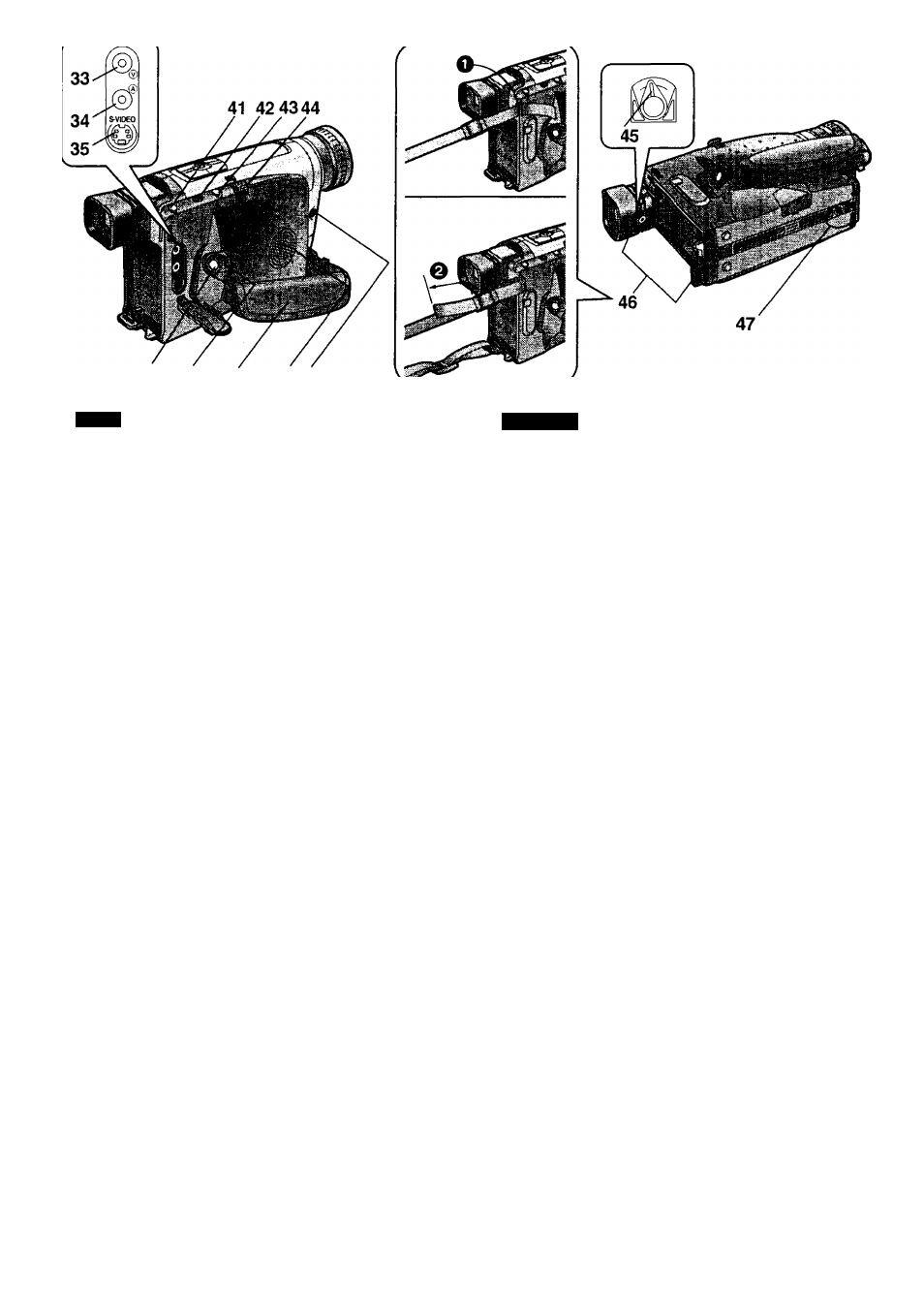

33 Vìdeo Output Socket [©] (-► 72,160,162)
34 Audio Output Socket [®] (-► 72, 160, 162)
35 S-Video Output Socket [S-VIDEO]
{-¥ 72,
160, 162)
36 Recording Start/Stop Button (-^ 54)
37 Off/On Mode Selector Switch [CAMERA/OFF/VCR]
(-♦ 46, 54, 62, 72)
38 Grip Beit (-4 46)
39 Speaker (-^ 62)
40 Digital Stili Picture Terminal [DIGITAL STILL PICTURE]
(-M62)
41 Cassette Eject Button [A EJECT] (-^ 40)
42 Daten’ime/Title Button [DATE/TITLE] (-► 52. 130,136)
43 Recording Start/Stop Button [REC] (-> 54, 56)
Multi Image/Picture-in-Pìcture Button [MULTI]
{-¥
90, 92, 94,140,142,144)
Snapshot Recording Button [SNAP] (-► 76)
44 Zoom Lever [W/T]
{-¥
60, 88)
Volume Adjustment Lever [-VOL+] (-♦ 62)
45 Eyepiece Corrector Lever (-► 46)
46 Shoulder Strap Holders
Pull one end of the Shoulder Strap through the Shoulder
Strap Holder O.
Fold the end of the Shoulder Strap back, pull it through the
Shoulder Strap Length Adjuster.
Pull it out more than 2 cm @ from the Shoulder Strap
Length Adjuster so that it cannot slip off.
47 Tripod Receptacle
