ENGLISH

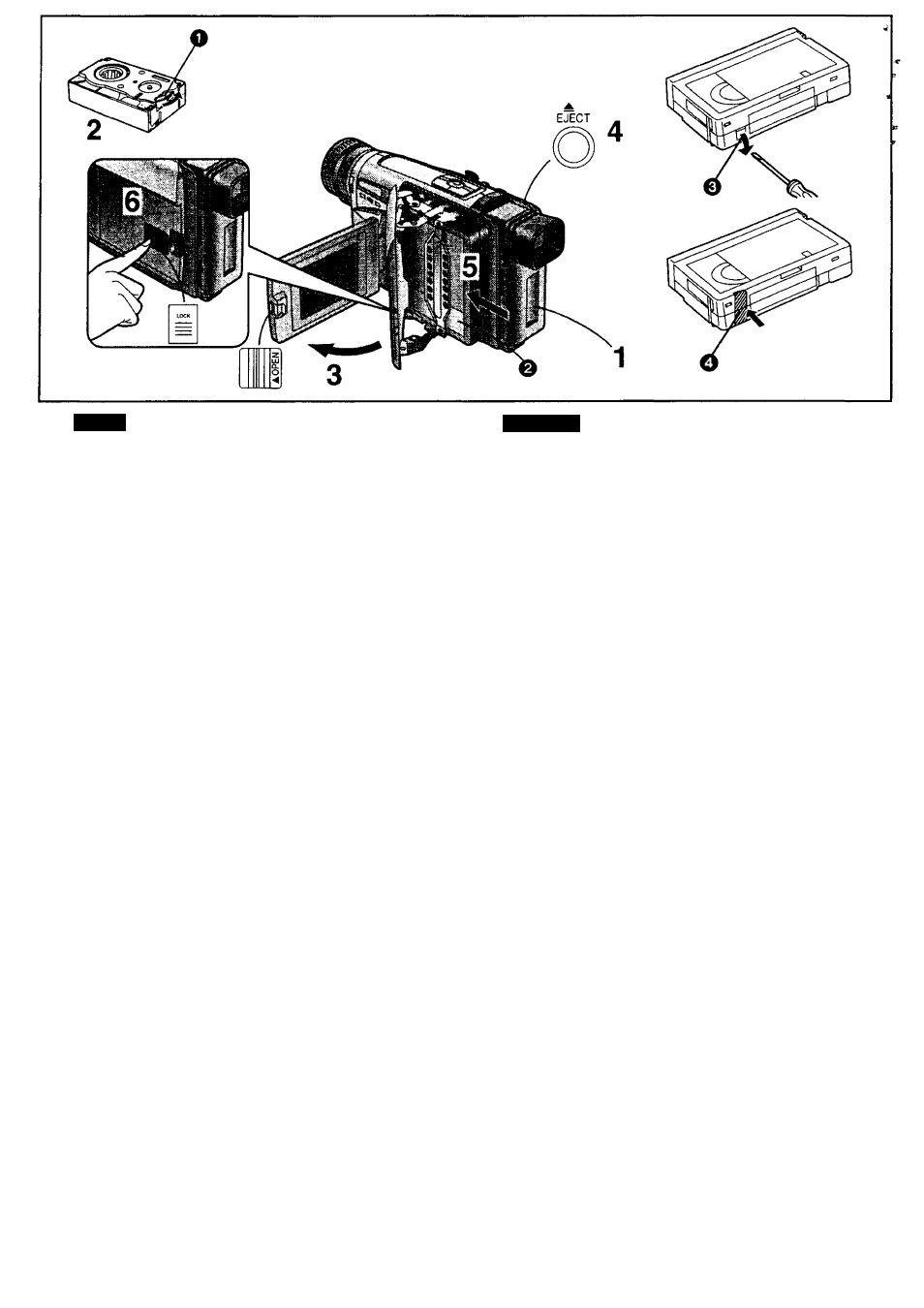

Inserting/Ejecting the Cassette
1
Connect the AC Adaptor or attach a charged
Battery. (-► 18, 20)
2
Turn the cog wheel
O
tighten the tape.
3
Slide the [AOPEN] Lever to the left and
simultaneously open the LCD Monitor in the
direction of the arrow approximately 90°.
• Be sure to keep the LCD Monitor in its vertical position,
so that the Cassette Compartment Cover, when it
opens, does not hit the LCD Monitor.
4
Press the EJECT] Button.
5
Insert the cassette with the cassette window
0
facing outward and push It all the way in.
6
Close the Cassette Compartment by pressing
the [LOCK] Button.
• If the AC Adaptor or Battery is used to supply power, it is
possible to insert or eject the cassette without turning on the
Movie Camera.
• If a cassette with broken out erasure prevention tab is
inserted, the [|^] Indication flashes.
■ Preventing Accidental Erasure of Recordings
• Recording on a previously recorded cassette erases the
existing scenes and sound.
•To protect important recordings against accidental erasure,
use a screwdriver to break out the tab
0
on the cassette
(some cassettes have sliding-type tabs),
•To be able to record again on a protected cassette, firmly
cover the hole where the tab was with two layers of
adhesive tape O-
