ENGLISH
Copying onto an S-VHS (or VHS)
Cassette (Dubbing)

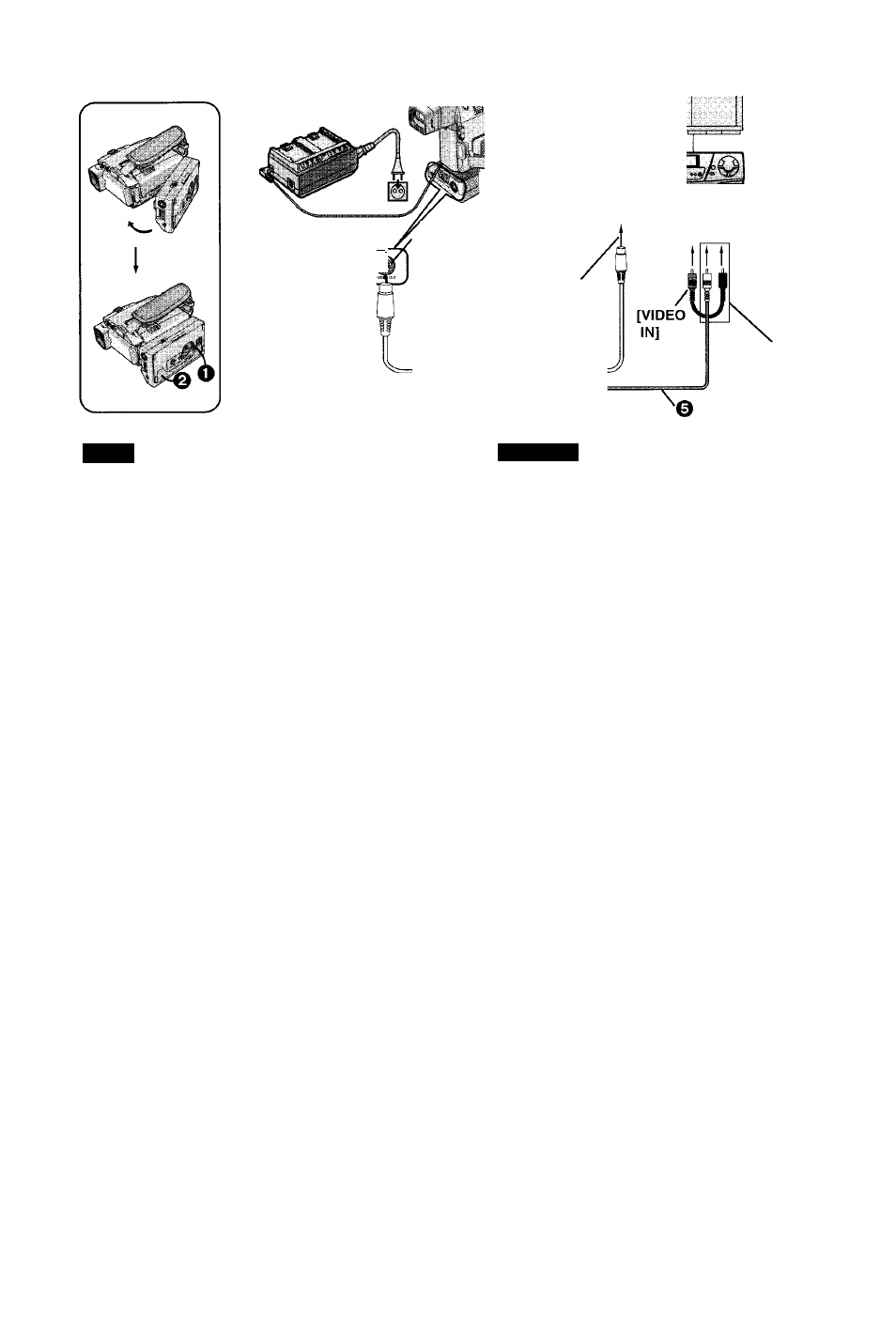

If you attach the Output Terminal Box, you can copy
cassettes recorded from this Movie Camera onto S-VHS
or VHS cassettes.
After connecting all equipment as shown above, perform
the following operations.
1
2
[Movie Camera]
Insert the recorded cassette.
Attach the Output Terminal Box to the
underside of the Movie Camera with the
Screw
O-
Extending the Support Leg © from the underside of
the Output Teminal Box makes it easier to view the
playback picture on the LCD Monitor.
[VCR]
Insert an unrecorded cassette with intact
erasure prevention tab.
[Movie Camera]
Press the Playback Button [^] to start playback.
[VCR]
Press the Recording Button to start recording.
[VCR]
Press the Pause or Stop Button to stop
recording.
7 [Movie Camera]
Press the Stop Button [■] to stop playback.
© Output Terminal Box
O S-Video Cable
@ AV Cable
• Before dubbing, press the [OSD] Button (-» 100) on the
Remote Controller so that no indications appear.
Otherwise, the Counter Indication and function
indications are also recorded onto the cassette.
4
5
6
