Installation Instructions MSMVU/LSMVU
9
WARNING: EXPLOSION AND FIRE HAZARD! CUTTING
OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH
OR SERIOUS PERSONAL INJURY! ALWAYS make certain
area behind mounting surface is free of gas, water, waste, or
any other plumbing before cutting, drilling, or installing
fasteners.

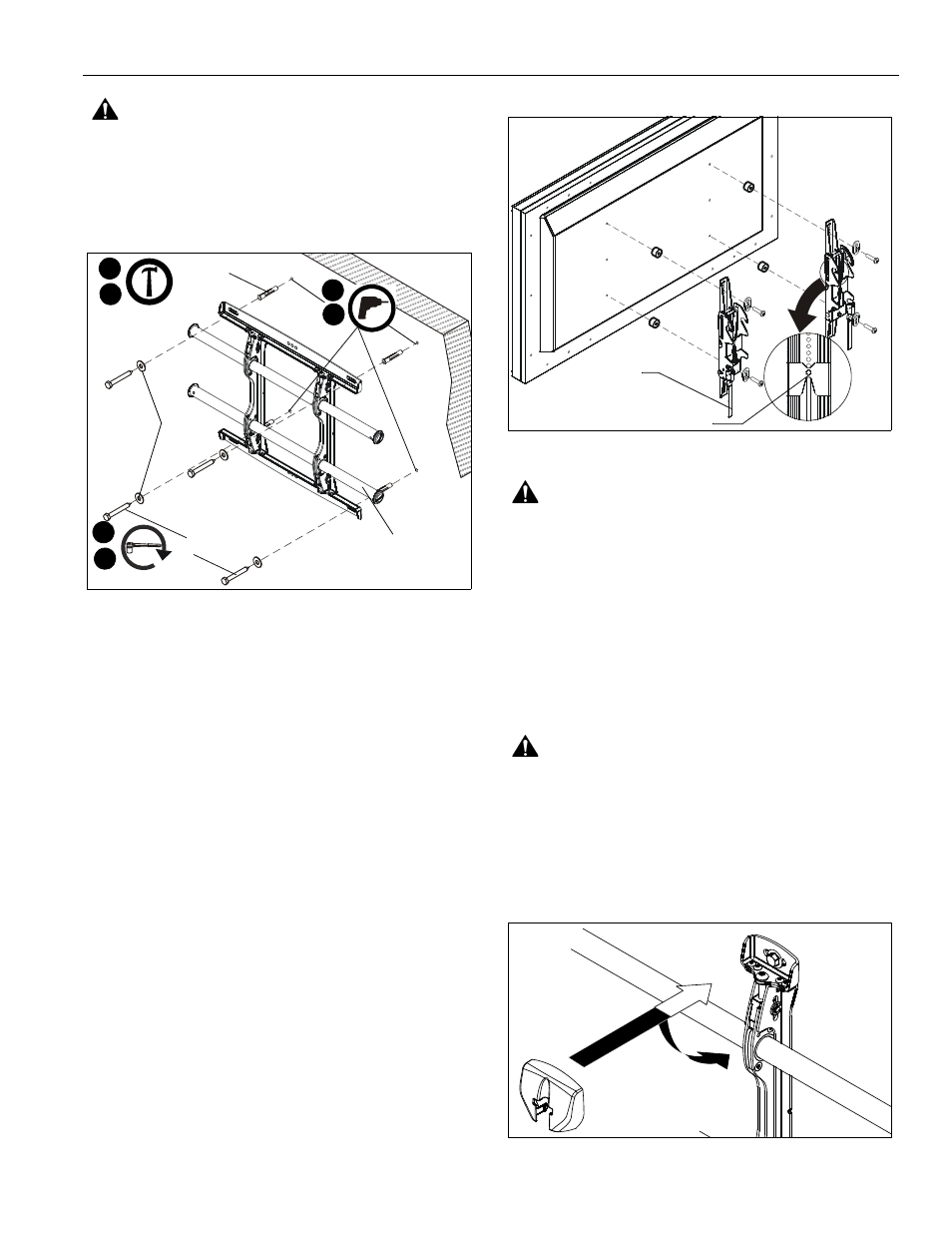

Figure 8
5. Drill one 3/8” pilot hole at each marking.
6. Install an anchor (QA) into each pilot hole using a hammer.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach top of mount to anchors in wall.
8. Mark the attachment points for the lower mounting slots.
(See Figure 8)
9. Drill one 3/8” pilot hole at each marking for lower mounting
holes. (See Figure 8)
10. Install an anchor (QA) into each pilot hole using a hammer.
11. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 8)
12. Slide rails to approximate center of screen location.
Attaching Interface Brackets to TV
1. Align the center of the pull-out uprights (U and V) with center
of screen. (See Figure 9)
NOTE: The diamond-shape hole in the bracket corresponds to
the center of the mount.
Figure 9
WARNING: IMPROPER INSTALLATION CAN LEAD TO
DISPLAY FALLING CAUSING SERIOUS PERSONAL
INJURY OR DAMAGE TO EQUIPMENT! Using screws of
improper size may damage your display. Properly sized
screws will easily and completely thread into display
mounting holes. If spacers are required, be sure to use longer
screws of the same diameter.
2. Select correct screws, spacers (if necessary) and universal
washers from the hardware bag (A-N) and attach brackets
(U and V) to back of screen. (See Figure 9)
NOTE: Uprights may need to be pulled out to the extended
position in order to install screws through proper holes.
WARNING: IMPROPER USE CAN LEAD TO DISPLAY
FALLING CAUSING SERIOUS PERSONAL INJURY OR
DAMAGE TO EQUIPMENT! The pull-out feature is ONLY to
be used during installation and service!
Attaching Screen to Wall Mount
1. (LSMVU only) Attach wall bracket caps (Y) to top and
bottom of both wall brackets. (See Figure 10)
Figure 10
5
6 (QA) x 2
10
9
7
11
(QC) x 2
(QB x 4)
(R)
Center of bracket
Pull strap
(Y) x 4
