Installation Instructions MSMVU/LSMVU
7
6. Drill one 7/32” pilot hole in each stud.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach top of mount (R) to wall. (See
Figure 3)
8. Mark the attachment points for the lower mounting slots,
making sure the attachment points are located on the studs.
(See Figure 3)
9. Drill 7/32” pilot holes at markings for lower mounting holes.
(See Figure 3)
10. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 3)
11. Slide rails to approximate center of screen location.
Installing LSMVU to Wall - Concrete, Concrete
Block
1. Determine the center of the TV screen, and where it should
be located on the wall.
2. Line up the notches on mount (R) with center of screen
marking to determine vertical center. (See Figure 4)
3. Measure up 7-1/2” (190.5mm) from the center point to mark
location of the upper mounting slots. (See Figure 4)
4. Using a level, mark the wall through both upper mounting
slots. (See Figure 4)
CAUTION: WHEN INSTALLING LSMVU TO CONCRETE
THE HORIZONTAL DISTANCE BETWEEN WALL
BRACKETS IS 24" (609.6mm). Do not place mounting
brackets closer together than 24" (609.6mm).
WARNING: ELECTRICAL SHOCK HAZARD! CUTTING
OR DRILLING INTO ELECTRICAL CORDS OR CABLES
CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!
ALWAYS make certain area behind mounting surface is free
of electrical wires and cables before drilling or installing
fasteners.
WARNING: EXPLOSION AND FIRE HAZARD! CUTTING
OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH
OR SERIOUS PERSONAL INJURY! ALWAYS make certain
area behind mounting surface is free of gas, water, waste, or
any other plumbing before cutting, drilling, or installing
fasteners.
5. Drill one 3/8” pilot hole at each marking.
6. Install an anchor (QA) into each upper pilot hole using a
hammer, making sure that the anchor is flush with the wall.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach top of mount (R) to anchors in wall.
8. Mark the attachment points for the lower mounting slots.
(See Figure 4)
9. Drill one 3/8” pilot hole at each marking for lower mounting
holes. (See Figure 4)
10. Install an anchor (QA) into each lower pilot hole using a
hammer. (See Figure 4)
11. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 4)
12. Slide rails to approximate center of screen location.

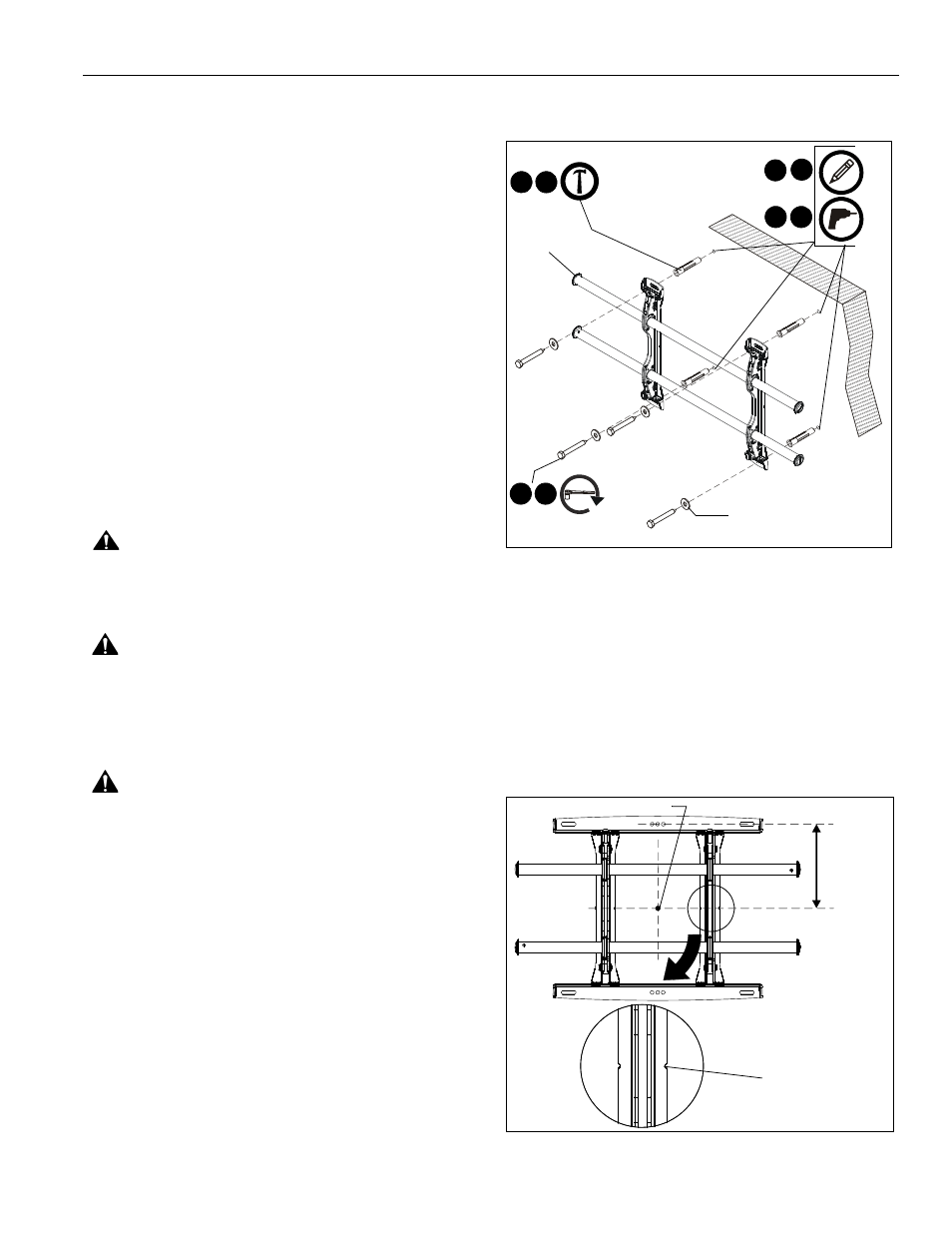

Figure 4
Installing MSMVU to a Wood Stud Wall
1. Determine the center of the TV screen, and where it should
be located on the wall.
2. Locate the closest stud to the left and right of the selected
location.
NOTE: The MSMVU can only be installed on two 16" (minimum
on center) wood studs! DO NOT INSTALL ONTO A
SINGLE STUD!
3. Line up the notches on mount (R) with center of screen
marking to determine vertical center. (See Figure 5)
Figure 5
8
5
6
4
9
x 4
(QA) x 4
10
7 11 (QC) x 4
(QB) x 4
(R)
Center of screen
7-1/2”
Vertical center
of mount
(190.5mm)
