MSMVU/LSMVU Installation Instructions
8
4. Measure up 7-1/2” (190.5mm) from the center point to mark
location of the upper mounting slots.
5. Using a level, mark the wall on each stud to attach the
mount through the upper mounting slots. (See Figure 6)

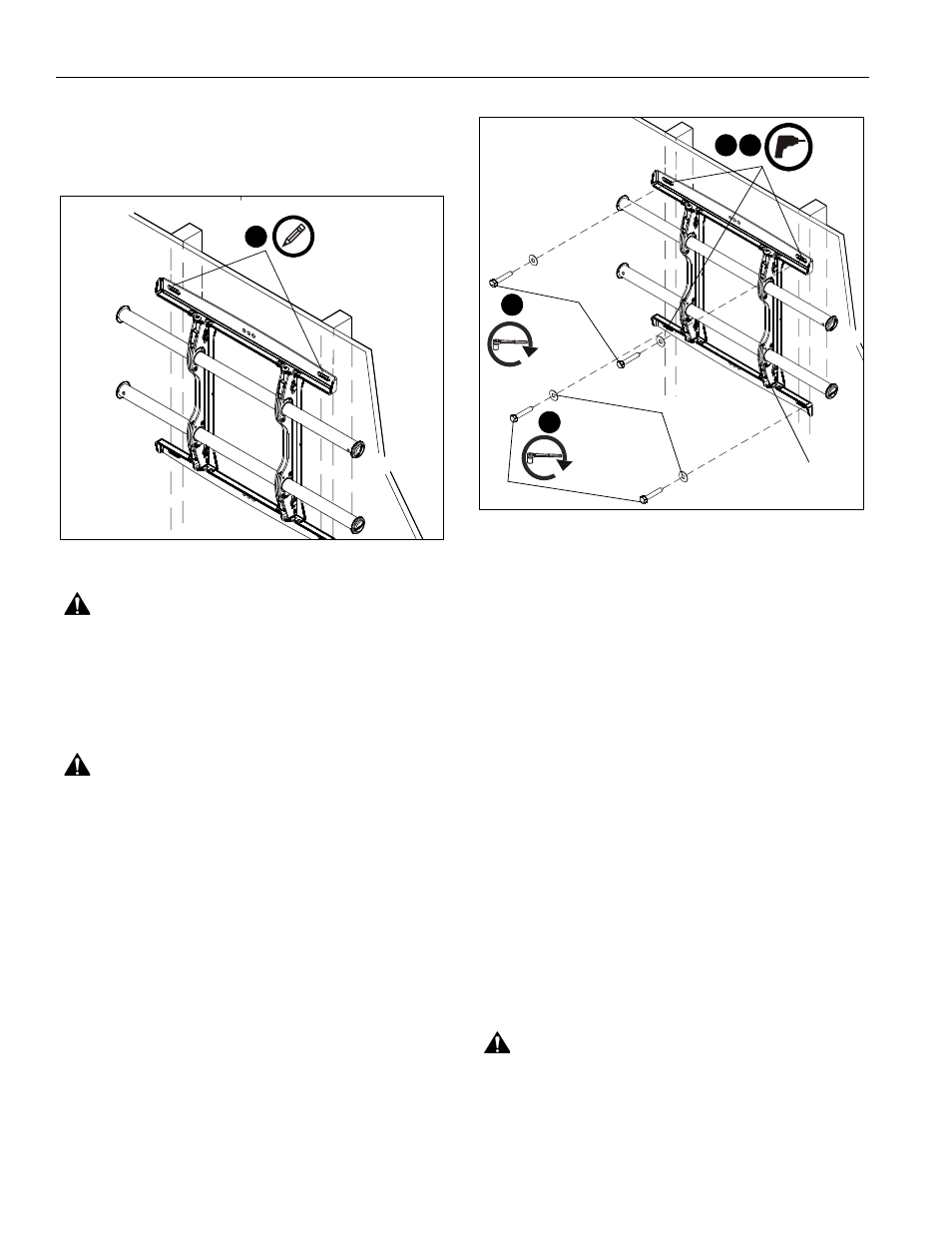

Figure 6
WARNING: ELECTRICAL SHOCK HAZARD! CUTTING
OR DRILLING INTO ELECTRICAL CORDS OR CABLES
CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!
ALWAYS make certain area behind mounting surface is free
of electrical wires and cables before drilling or installing
fasteners.
WARNING: EXPLOSION AND FIRE HAZARD! CUTTING
OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH
OR SERIOUS PERSONAL INJURY! ALWAYS make certain
area behind mounting surface is free of gas, water, waste, or
any other plumbing before cutting, drilling, or installing
fasteners.
Figure 7
6. Drill one 7/32” pilot hole in each stud.
7. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach top of mount to wall. (See Figure 7)
8. Mark the attachment points for the lower mounting slots,
making sure the attachment points are located on the studs.
(See Figure 7)
9. Drill 7/32” pilot holes at markings for lower mounting holes.
(See Figure 7)
10. Use two 5/16 x 2-1/2” lag bolts (QC) and two 5/16” flat
washers (QB) to attach the mount to the wall through the
lower mounting holes. (See Figure 7)
11. Slide rails to approximate center of screen location.
Installing MSMVU to Wall - Concrete, Concrete
Block
1. Determine the center of the TV screen, and where it should
be located on the wall.
2. Line up the notches on mount (R) with center of screen
marking to determine vertical center. (See Figure 8)
3. Measure up 7-1/2” (190.5mm) from the center point to mark
location of the upper mounting slots. (See Figure 8)
4. Using a level, mark the wall through both upper mounting
slots. (See Figure 8)
IMPORTANT ! : Lag screw holes must be spaced a
minimum of 16" apart.
WARNING: ELECTRICAL SHOCK HAZARD! CUTTING
OR DRILLING INTO ELECTRICAL CORDS OR CABLES
CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY!
ALWAYS make certain area behind mounting surface is free
of electrical wires and cables before drilling or installing
fasteners.
5
x
6 x 4 9
7
10
(QC) x 2
(QC) x 2
(QB x 4)
(R)
