MSMVU/LSMVU Installation Instructions
5

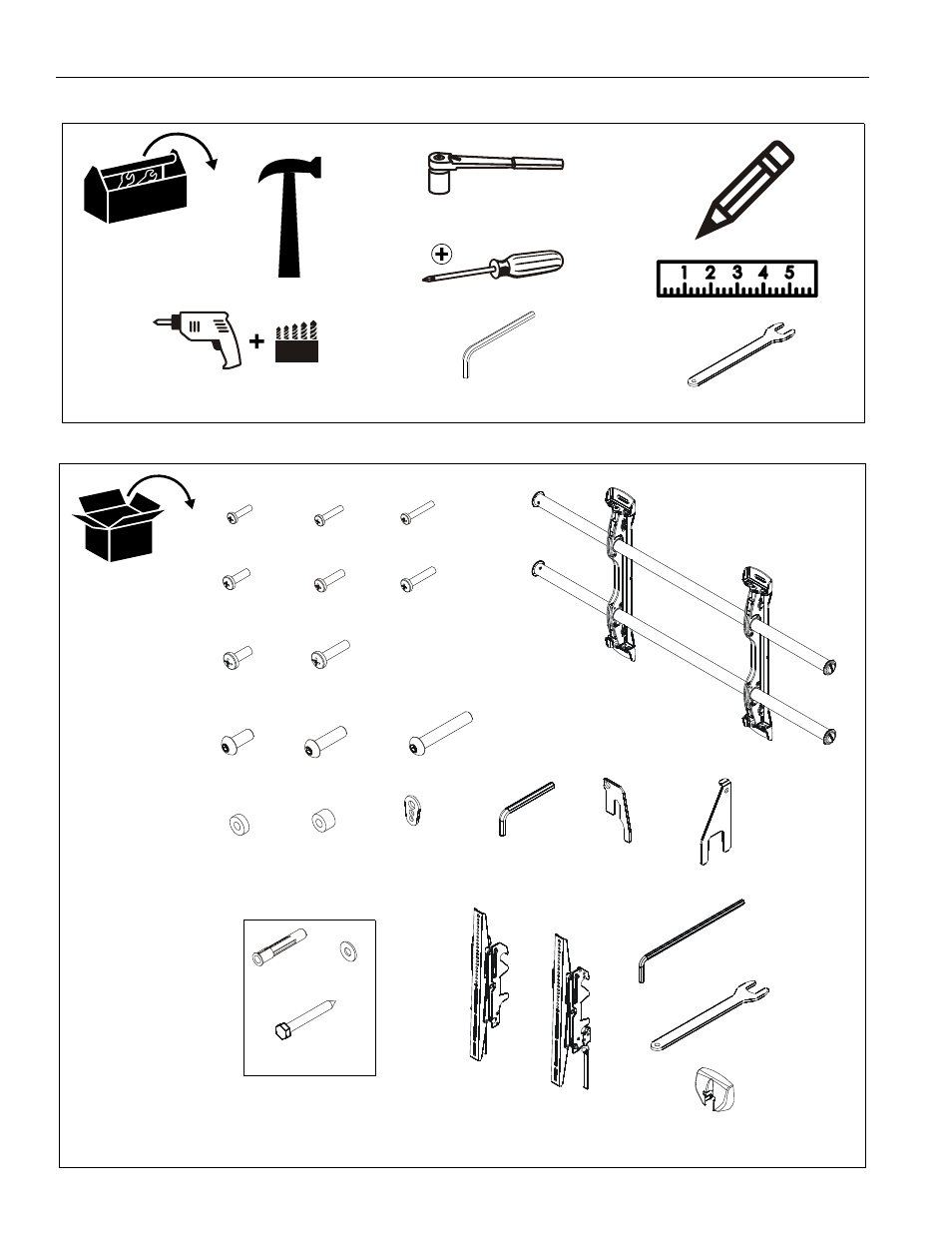

TOOLS REQUIRED FOR INSTALLATION
PARTS
7/32” (5.5mm) Wood Stud
5/16” (7.9mm) Concrete
#2
M5 (included)
3/16-6” (included)
1/2”
(included)
C (6)
E (6)
R (1)
S (2)
T (2)
A (8)
M4x16mm
B (6)
M4x20mm M4x25mm
D (6)
M5x16mm
M5x20mm
F (6)
M5x25mm
G (6)
M6x16mm
H (6)
M6x25mm
I (6)
M8x20mm
J (6)
M8x30mm
K (4)
M8x50mm
L (8)
.750x.323x.250
M (8)
.750x.344x.500
N (8)
QA (4)
UX10
QB (4)
5/16”
QC (4)
5/16” x 2-1/2”
W (1)
U (1)
V (1)
Y (4)
X (1)
[wall mount]
(LSMVU shown)
[left pull-out upright]
[right pull-out upright]
[security bracket]
[hold-back bracket]
3/16 -6”
[wall bracket cap]
1/2”
(LSMVU only)
(LSMVU uprights shown)
[universal washer] P (1)
M5
[packed with ’N’]
