59
Description (Fig. A)
The meat mincer consists of:
1 Drive unit – each drive of the machine is adjusted to the
assembly of each of the mincing set and the shredder
produced by ZELMER. There are some ventilation inlets
in rear casing of the 586 and 686 drives.
Mincing set, which consists of:
2 Mincing chamber
3 Feed screw with assembled coupling
4 Cutter knife
5 Screen with 4mm holes
6 ring collar
7 Food tray
8 Pusher
Equipment, which includes:
9 Screen with 8 mm holes
10 Sausage stuffer
11 Separator
Mechanical safety device for the motor (Fig. B)
1 Scroll
2 Clutch
3 Screw M5x20
The meat mincer is equipped with mechanical protection,
which secures the motor against any damage – teeth of the
coupling break, when the meat mincer is overloaded (f. ex.
when bones have entered into the mincing chamber).

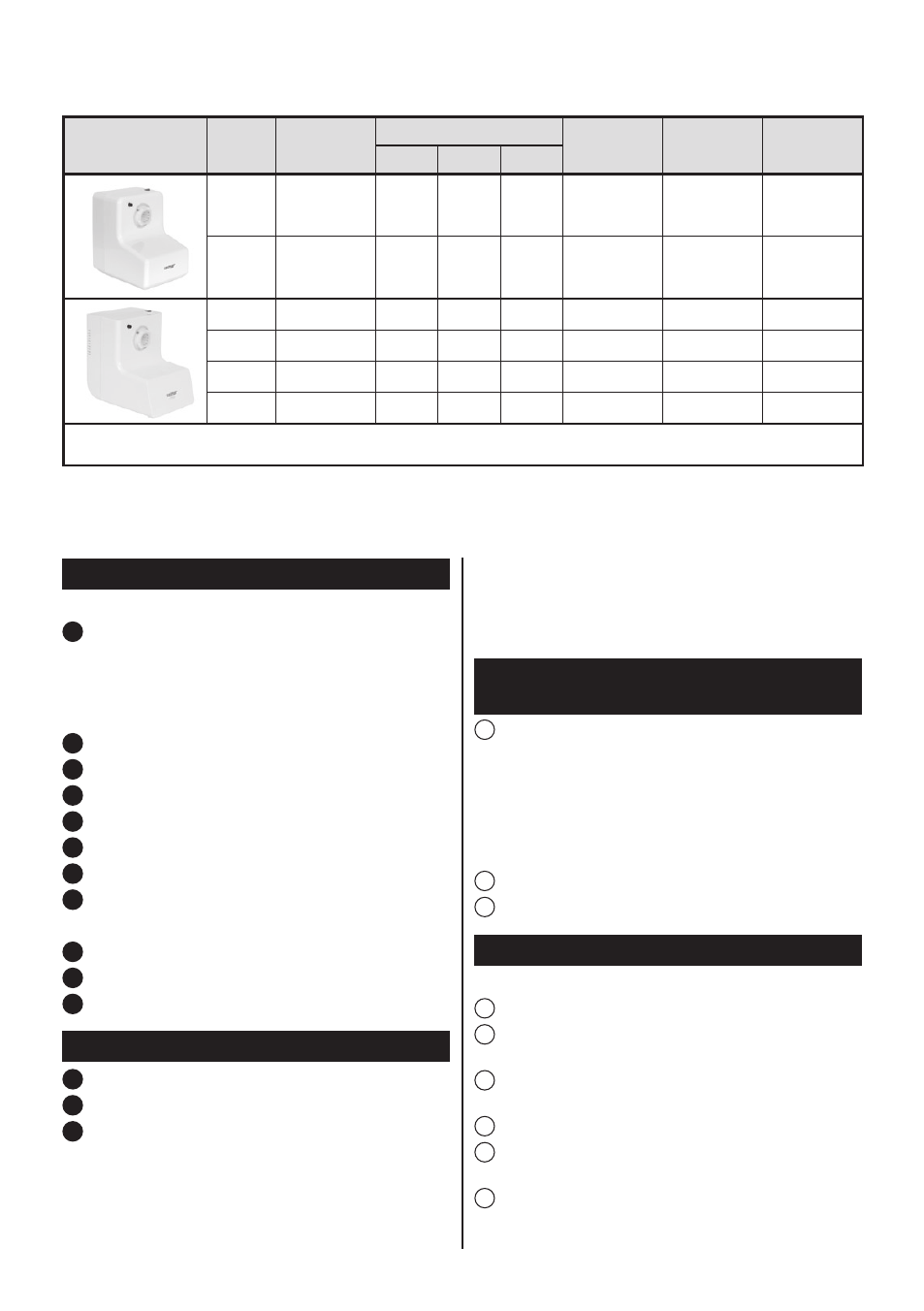

TYPES OF ZELMER MEAT MINCERS
Below, you can see an assortment of equipment anticipated for the meat mincers, which the user manual refers to.
Drive unit Typ Cutter knife
Screen
Sausage
stuffer
Pasta and
pastry set
Shredder
2,7 4 8
586.5
● ○ ● ● ● ○ ○
586.54
● ○ ● ● ● ○ ●
686.5
● ○ ● ● ● ○ ○
686.54
● ○ ● ● ● ○ ●
686.8
● ○ ● ● ● – ○
686.84
● ○ ● ● ● – ●
●
– basic accessories,
○
– additional equipment, which can be bought in shops, household appliances stores,
–
– unavailable accessories
The mincer is equipped with one mincing unit.
The broken coupling should be replaced with a new one:
unscrew the coupling from the feed screw,
●
remove the broken coupling,
●
put on the new coupling and screw it.
●
Preparing the meat mincer to work
and the actuation of the appliance (Fig. C)
1 Place the drive unit close to the power network socket,
on a fi rm surface so as not to cover the ventilation holes
within the casing.
Before the fi rst use of the meat mincer, wash the
●
equipment elements.
Assemble the appropriate equipment and join it with the
●
drive unit.
2 Put the power cord into the supply network socket.
3 Turn the meat mincer on with the main switch.
Operating the mincing set (Fig. D)
Put the following elements into the mincing chamber:
1 Feed screw with the coupling towards the middle.
2 Put the cutter knife on the feed screw end, with the sharp
edges facing outside.
3 Put the screen so that the chamber’s protrusion enters
the rut of the screen.
4 Tighten all the elements of the mincing set – until home.
5 Put the assembled unit onto the drive unit and turn into
the position, when you hear click of the safety lock.
6 Put the food tray onto the mincing chamber.
