30
En
Connections
1 HDMI indicator
Lights up when the signal of the selected input source is
input at the HDMI IN jacks (see page 18).
2 ADAPTIVE DRC indicator
Lights up when the adaptive dynamic range control
feature is turned on (see page 81).
3 DOCK indicator
• Lights up when you station your iPod in a Yamaha
iPod universal dock (such as YDS-10, sold separately)
connected to the DOCK terminal of this unit (see
page 25) and V-AUX is selected as the input source.
The DOCK indicator also lights up when this unit is
charging the battery of the stationed iPod in the
standby mode.
• Flashes while the connected Yamaha Bluetooth adapter
(such as YBA-10, sold separately) and the Bluetooth
component is in the paring or the Bluetooth adapter is
searching the Bluetooth component (see page 62).
• Light up while the Yamaha Bluetooth adapter is
connected to the Bluetooth component (see page 62).
4 ENHANCER indicator
Lights up when the Compressed Music Enhancer mode is
selected (see page 50).
5 Input source indicators
The corresponding cursor lights up to show the currently
selected input source.
6 YPAO indicator
Lights up when you run “AUTO SETUP” and when the
speaker settings set in “AUTO SETUP” are used without
any modifications (see page 32).
7 Tuner indicators
Lights up when this unit is in the FM or AM tuning mode
(see pages 53 to 56).
8 96/24 indicator
Lights up when a DTS 96/24 signal is input to this unit.
9 MUTE indicator and VOLUME level indicator
• The MUTE indicator flashes while the MUTE function
is on (see page 45).
• Indicates the current volume level.
0 Input signal indicators
Lights up when this unit is reproducing PCM (Pulse Code
Modulation) or DSD (Direct Stream Digital) digital audio
signals.
A Decoder indicators
The respective indicator lights up when any of the
decoders of this unit function.
B Sound field indicators
Light up to indicate the active sound fields (see page 48).
C Headphone indicator
Lights up when headphones are connected (see page 45).
D SP A B indicators
Light up according to the set of front speakers activated
(see page 43).
SP A:
The FRONT A speakers are activated.
SP B: The FRONT B speakers are activated.
SP A B: The FRONT A and FRONT B speakers are
activated.
E ZONE2 indicator
Lights up when Zone 2 is turned on (see page 105).
F DSP indicators
The respective indicator lights up when any of the sound
field programs are selected (see page 48).
CINEMA DSP indicator
Lights up when you select a CINEMA DSP sound
field program (see page 48).

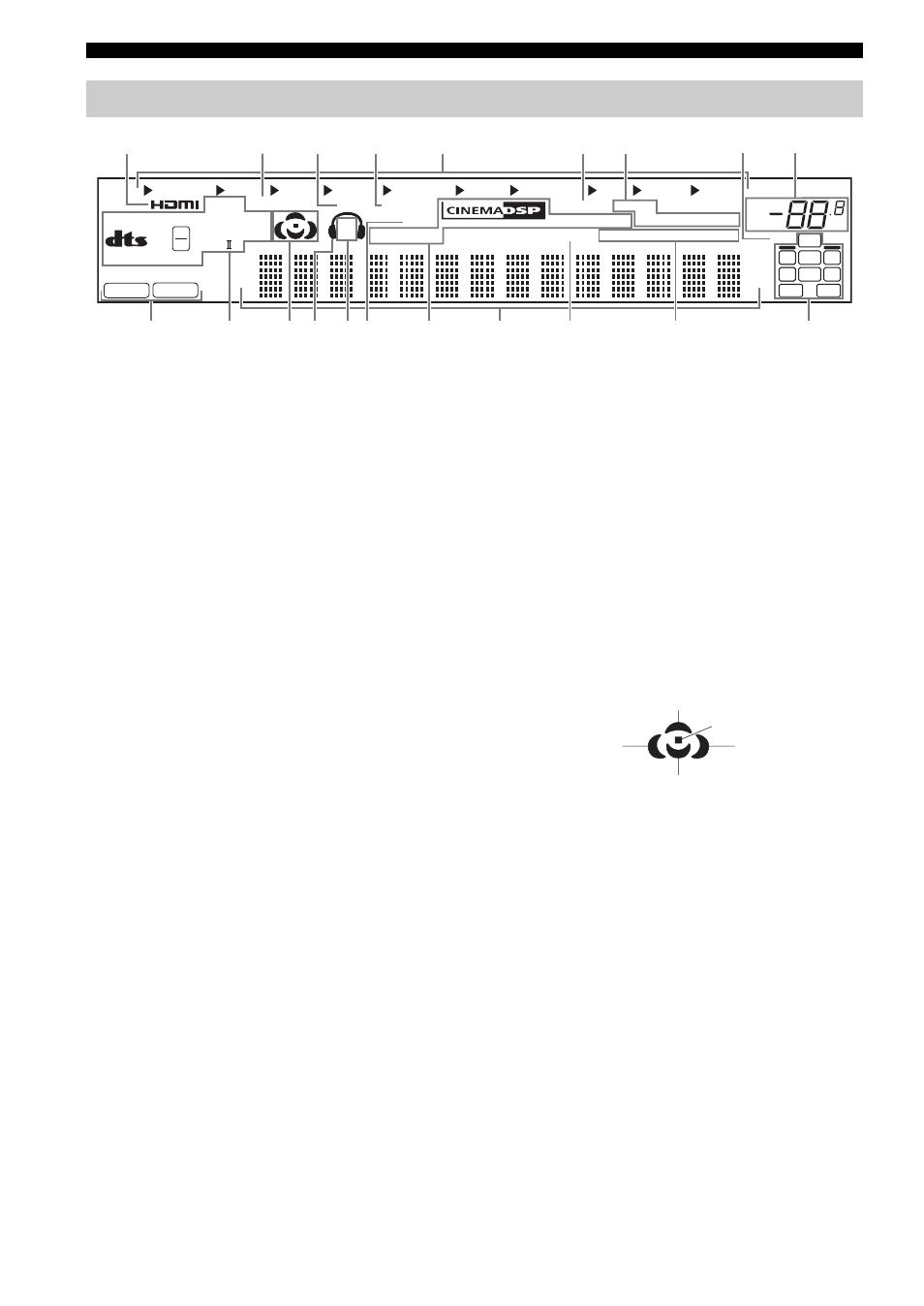

Front panel display
MUTE
VOL.
dB
DSD PCM
96/24
VIRTUAL AUTO
YPAO MEMORY
TUNED STEREO
EON CT RT PTY PS HOLD PTY SLEEP
MULTI CH VCR DVR V-AUX DTV/CBL DVD CD MD/CD-R TUNER PHONO
MATRIX DISCRETE
MASTER AUDIO
HD
ES
ADAPTIVE DRC DOCK ENHANCER
SILENT CINEMA
ZONE 2 SP
A B 96
24 q
q PL x
LFE
L L C R
SL SB SR
SBR SBL
TRUE HD
q EX
q DIGITAL PLUS
J H I G E D F C A B 0
1 2 3 4 5 6 7 8 9
Presence sound field
Listening position
Surround left
sound field Surround right
sound field
Surround back sound field
