Yamaha RX-V863 - Инструкция (Страница 23)

21
En
Connections
PREP
ARA
TION
English
• When “VIDEO CONV.” is set to “OFF” (see page 88), be sure
to make the same type of video connections as those made for
your TV (see page 20). For example, if you connected your TV
to the VIDEO MONITOR OUT jack of this unit, connect your
other components to the VIDEO jacks.
• When “VIDEO CONV.” is set to “ON” (see page 88), the
converted video signals are output only at the MONITOR OUT
jacks. To record a source, make the same type of video
connections between each component.
• To make a digital connection to a component other than the
default component assigned to each DIGITAL INPUT or
DIGITAL OUTPUT jack, select the corresponding setting for
“OPTICAL OUT”, “OPTICAL IN”, or “COAXIAL IN” in “I/O
ASSIGNMENT” (see page 85).
• If you connect your DVD player to both the DIGITAL INPUT
(OPTICAL) and the DIGITAL INPUT (COAXIAL) jacks,
priority is given to the signals input at the DIGITAL INPUT
(COAXIAL) jack.

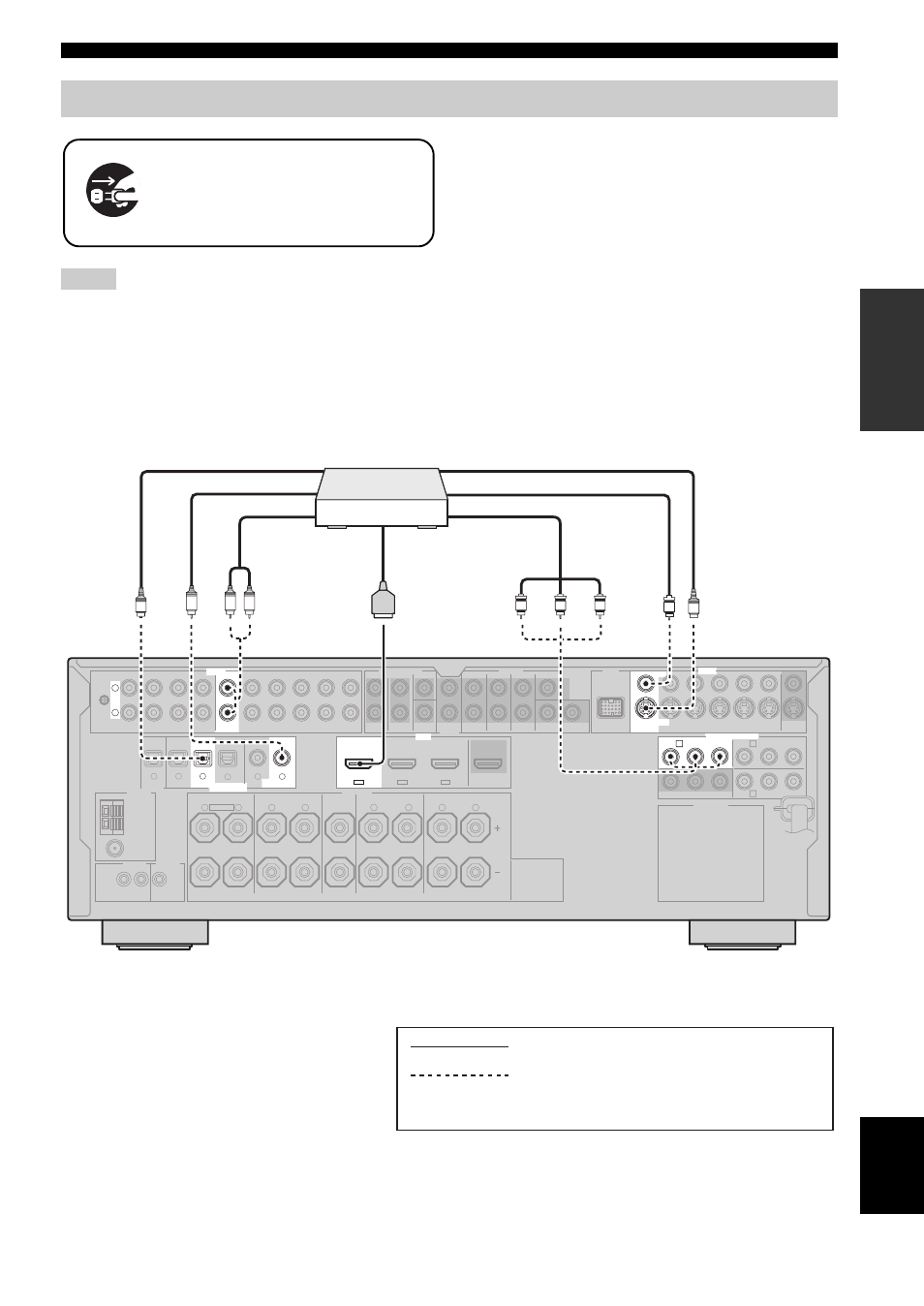

■ Connecting a DVD player
Connecting other components
Notes
Make sure that this unit and other
components are unplugged from the
AC wall outlets.
SINGLE
AC OUTLETS
R
L
AUDIO MULTI CH INPUT PRE OUT DOCK VIDEO
COMPONENT VIDEO HDMI
DIGITAL INPUT
ANTENNA
REMOTE
DIGITAL
OUTPUT
TRIGGER
OUT
SPEAKERS
DVD SUBWOOFER FRONT SB (8CH) ZONE 2
OUT
SUB
WOOFER SUR. BACK SURROUND
SINGLE CENTER CENTER FRONT (6CH)
SURROUND
DVD
DTV/CBL
S VIDEO
VIDEO
DTV/CBL
DVR
DVR MONITOR OUT
VCR OUT IN IN OUT 1 2
DVD
DVD CD DTV/CBL
OPTICAL COAXIAL
DVD
DVR OUT
SURROUND BACK/BI-AMP SURROUND CENTER FRONT A
AM
+12V
15mA MAX.
GND
FRONT B/ZONE B/
ZONE 2/PRESENCE
DTV/CBL DVD
MD/CD-R MD/CD-R
PHONO
GND
CD
MD/
CD-R
IN
(PLAY)
OUT
(REC) DTV/CBL DVR VCR OUT IN IN OUT
IN OUT
MONITOR
OUT
FM
UNBAL.
R L R L R L R L
6 5 4 3 2 1
IN2 IN3 IN1
EXTRA SP
Y P R P B Y P R P B A B
C
75 Ω
R L C
O V S P R P B Y
DVD player
HDMI out
Component video out
S-video out
Video out
Optical out
Audio out
indicates recommended connections
indicates alternative connections
(One for the video connection, and one for the
audio connection)
Coaxial out
