Installation of gas cookers
•‘Before your appliance is
connected to the gas supply,
check the ensure that the gas
category and pressure
specifications shown in the data
plate corresponds with your gas
supply. If necessary call
authorized service
for adjusting
to gas category.
«•This appliance shall be installed
in
accordance
with
the
regulations in force and only used
in a well ventilated space. Read
the instructions before installing
or
using
this
appliances.
In the interest of safety this
appliances
must
be
installed
and/or serviced by a competent
person as stated in the gas safety
regulations current editions.
«• Please refer to the data plate
for details about gas supply and
pressures.
«• The appliance must not be
installed in a room without a
window
or
other
controllable
opening. If is installed in a room
without a door which opens
directly
to
tohe
outside,
a
permanent opening is required.
The air circulation should be 2
m3/h per kW of burners.

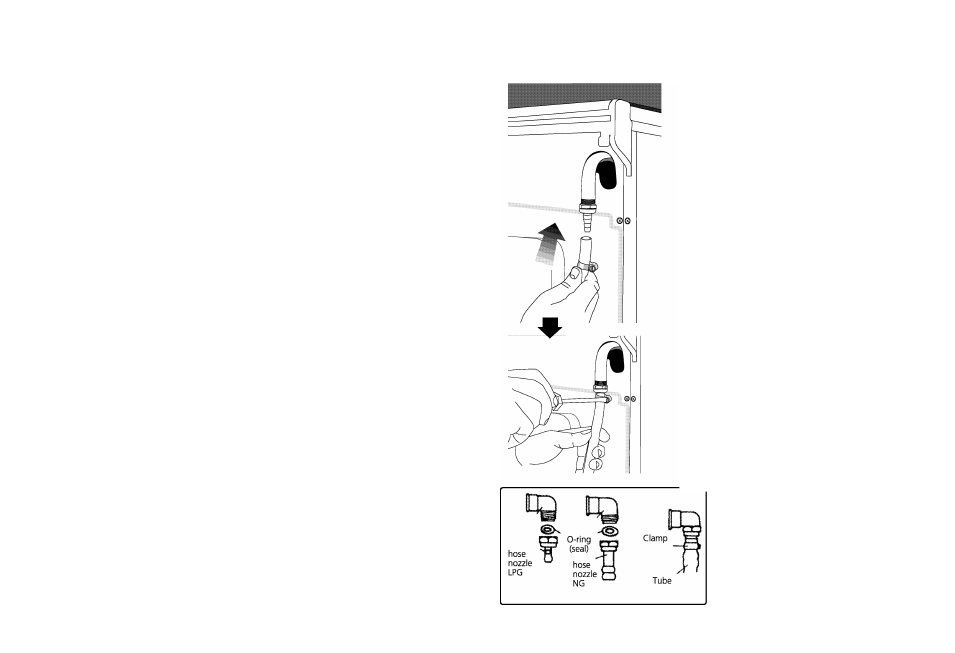

Connection of the gas hose to the oven
Convenient position is selected by interchanging
the hose nozzle and plug according to the
location of the main gas inlet valve. If you make
a connection with a flexible metal hose, locate
a seal between the main gas pipe. The inner
diameter of the flexible hose, which the butane
hose nozzle is connected, should be 6mm for
the house-type gas tubes.
The inner diameter of the flexible hose, which
the natural hose nozzle is connected, should
be 15mm. The hose should tightly be fitted to
the hose nozzle by squeezing with a clamp.The
plastic hose end is soaked in hot water for
one minute to soften and inserted fully
into the hose nozzle. The clamp is fastened
securely by a screw driver. The other end
of the hose is connected to the gas valve
with the same operation.
The hose should be replaced before its last
expiry date.
plug
Hose nozzle
Caution!
Make the oven connection to the
gas inlet valve, the hose length
must be short and be sure that
there is no leakage. The hose used
should not be longer than 125 cm
for safety.
Connection of the gas hose to
the oven
Convenient position is selected by
interchanging the hose nozzle and
plug according to the location of
the main gas inlet valve. The plastic
hose end is soaked in hot water for
one minute to soften and inserted
fully into the hose nozzle. The clamp
is fastened securely by a screw
driver. The other end of the hose
is connected to the gas valve with
the same operation.
Gas leakage control
During control, be sure that the
control knobs are closed and the gas
inlet valve is open. Apply soap bubbles
to the connections for leakage
control. In case leakage exists, buble
will appear. In such case, check the
gas connection immediately. Do not
control gas leaks by using fire.
Caution!
Never use lighter or match
flame, for controlling the gas
kckage.
Hose nozzle and elbow types
for Natural gas and
Butane/propane
