Part 2
I Important Installation and preparation of your oven
Before your appliance is connected to the mains
electricity supply, check to ensure that the voltage
and the frequency shown in the data plate
corresponds with your power supply. The data plate
is situated back cover of the oven, or it is situated
in the front of the storage compartment and can
be seen by opening the storage compartment cover
or pulling the drawer.
Warning!
This appliance must be earthed
Our company shall not held responsible for any
damage caused by the utilisation of the oven
without ground socket.
Before applying to Authorized service, have the
electrical wiring of your home ready for connection.
If the appliances is connected by a plug, that the
plug is easily accessible after installation (but not
above the hob)
^•‘This product must only be installed by a qualified
electrician eg. local electricity company to a suitable
double pole control unit with a minimum contact
clearance of 3 mm in all poles which should be
adjacent to (but not above) the cooker in accordance
with lEE regulation. Failure to observe this instruction
may result in operational problems and invalidation
of the product warranty. If the appliance is
connected by a plug, that the plug is easily accessible
after installation (but not above the hob).
The cable length should be 2 mt max for
isolation safety.
in modeis with "smaii type- terminal block"
In mix models a cable supplied with a plug with your
oven (H05 VV-F3G 1.5 mm2)
If a cable without a plug is provided together
with your oven (H05 V V-F 3G 2,5 mm2 )
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
GreenA^ellow cable = E (Earth )

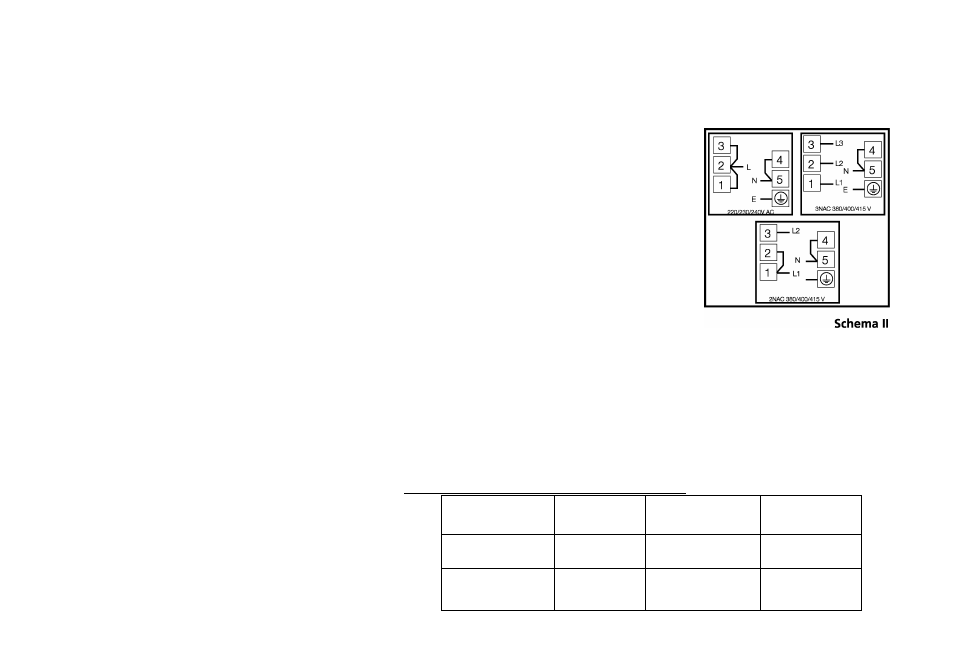

If your oven is supplied without supply cord use
schema-l to choose supply cord and use schema-
II for installation of cord.
The cable length should be max 2m long for isolation
safety.
«•"Open the terminal block cover.
«•"Connect the supply cable according to wiring diagram on the rear
cover.
«•" Fix the supply cable to main body with integrated screw via cable
tightener.
^
Assembly the terminal block cover to its place.
Your oven is suitable for single and three phase connection.
^•"The mains cable must pass through the cable clamp.
«•"The mains cable should be routed away from the appliance and in particular
ventilation slots, the vent outlet and should not be obstructed when pushed
in to position between the appliance and the wall and/or cabinet.
Connection Type
Monophase
Three phase
with Neutral
Two phase
with Neutral
Voltage
220/230/240
V 380/400/415 V
380/400/415 V
Supply LUfd Lype—
(max 2m long)
3x2,5 mm2
H05 V V-F
5x2,5 mm2
H05 VV-F
4x2,5 mm2
H05 VV-F
(Z
E
Z)
