— Change the source from radio (MW/LW
or FM) to another source.
— Turn the source off
— Turn off the ignition switch (ACC OFF)
! If [Ant CTRL] mode is set to [Power], the
vehicle
’s aerial can be stowed or turned off
only when the ignition switch is turned off
(ACC OFF).
! Do not connect this lead to the system con-
trol terminal of external power amps.
! Be sure not to use this lead as the power
supply lead for the auto-aerial or aerial
booster. Such connection could cause ex-
cessive current drain and malfunction.
Notice for the blue/white lead
! When the ignition switch is turned on (ACC
ON), a control signal is output through the
blue/white lead. Connect to an external
power amp
’s system remote control term-
inal (max. 300 mA 12 V DC). The control sig-
nal is output through the blue/white lead,
even if the audio source is switched off.
! Do not connect this lead to the auto-aerial
relay control terminal or the aerial booster
power control terminal.
! Be sure not to use this lead as the power
supply lead for the external power amps.
Such connection could cause excessive
current drain and malfunction.

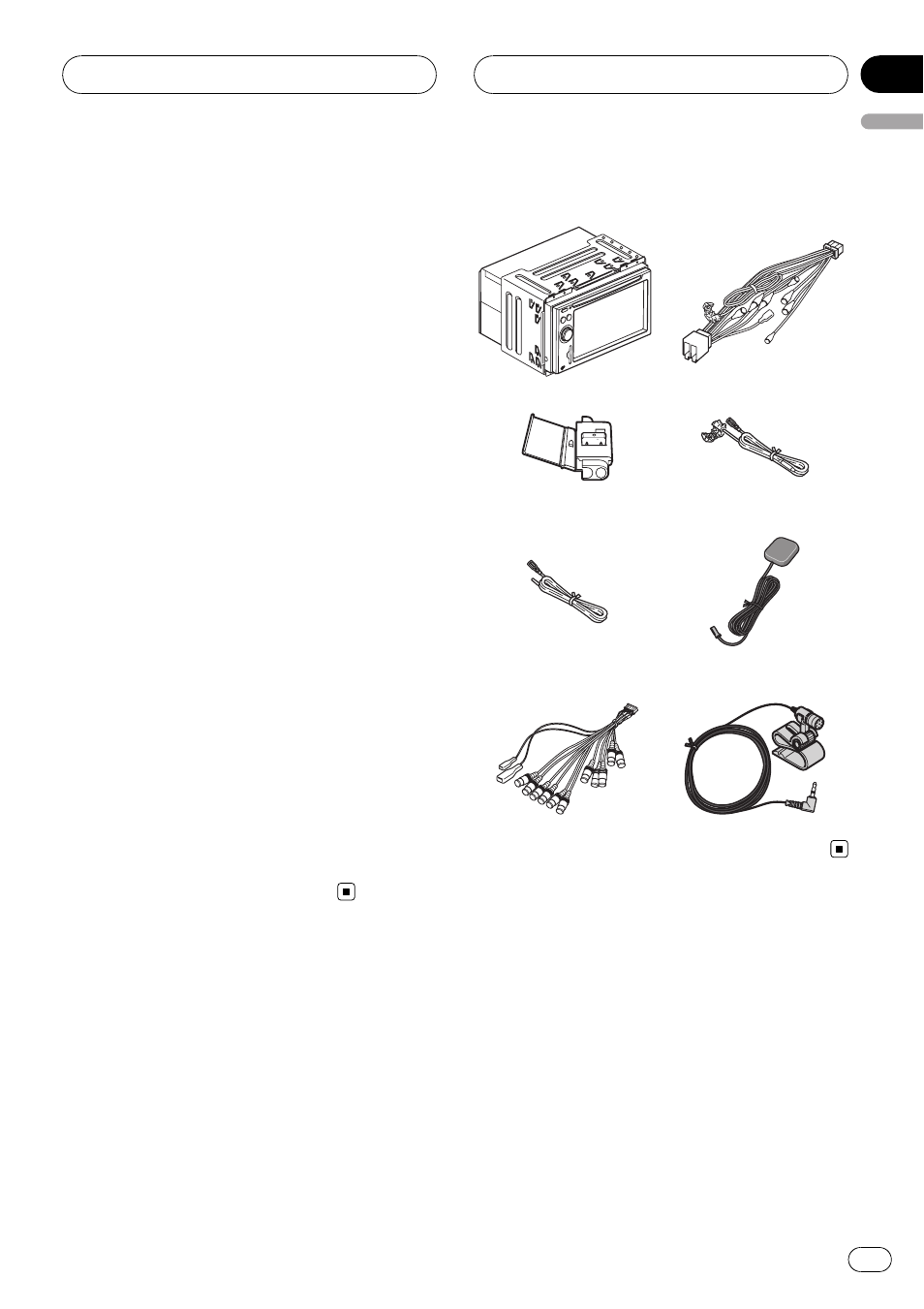

Parts supplied
The navigation unit Power cord
Connector Extension lead
(for reverse signal)
Extension lead
(for speed signal) GPS aerial
RCA connector Microphone
