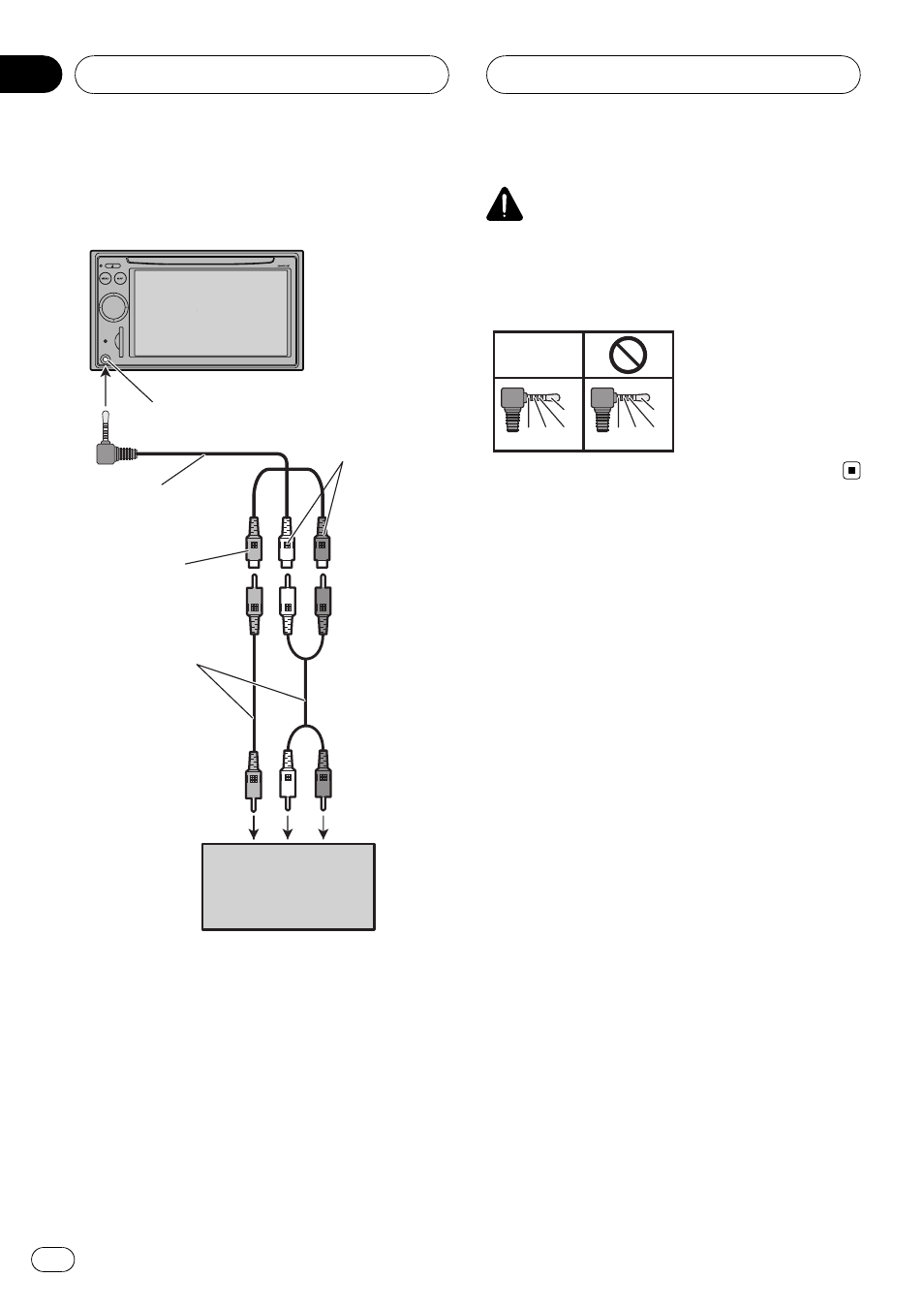

Using
“AV2 Input” (AV2)
The navigation unit
Yellow
Red, white
External
component
(sold separately)
video
To video output
To audio outputs
Mini jack
CD-RM10
(sold separately)
RCA cables
(
sold separately)
! It is necessary to set [AV2 Input] in [AV
Settings] to [Video] when connecting the
external video component. (For details,
refer to
“Operation Manual”.)
CAUTION
Be sure to use a CD-RM10 (sold separately) for
wiring. If you use other cables, there is a case
where wiring position differs, images and sounds
may be disturbed.
OK
G
V
R
L
G
R
V
L
L : Left audio (White)
R : Right audio (Red)
V : Video (Yellow)
G : Earth
Connecting the System
Engb
18
Section
03
