Before installing this
product
! This product is for vehicles with a 12-volt
battery and negative earthing. Check the
battery voltage of your vehicle before instal-
lation.

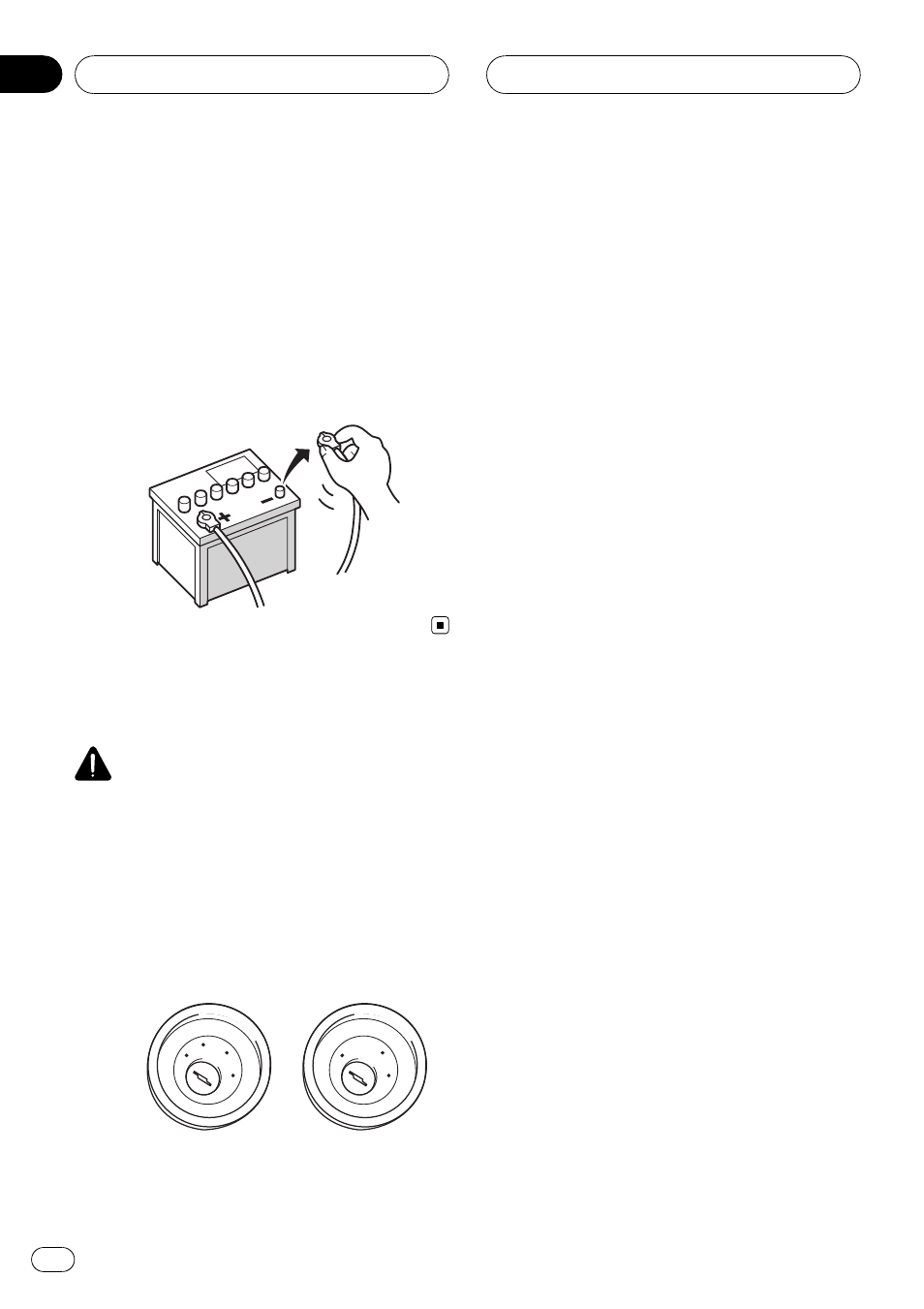

! To avoid shorts in the electrical system, be
sure to disconnect the (
–) battery cable be-
fore beginning installation.
To prevent damage
WARNING
! When replacing the fuse, be sure to only
use a fuse of the rating prescribed on the
fuse holder.
! When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.
! This product cannot be installed in a vehi-
cle without ACC (accessory) position on
the ignition switch.
ACC ON
S
TA
RT
O
FF
ON
S
TA
RT
O
FF
ACC position No ACC position
! To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
! Attach the connectors of the same colour
to the corresponding coloured port, i.e.,
blue connector to the blue port, black to
black, etc.
! Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
! Since a unique BPTL circuit is employed,
do not directly earth the
* side of the
speaker lead or connect the
* sides of the
speaker leads together. Be sure to connect
the
* side of the speaker lead to the *
side of the speaker lead on this navigation
system.
! If the RCA pin jack on this product will not
be used, do not remove the caps attached
to the end of the connector.
! Never connect speakers with an output rat-
ing of less than 50 W channel or impe-
dance outside of the 4 ohms to 8 ohms
specifications to your navigation system.
Connecting speakers with output and/or
impedance values other than those noted
here may result in the speakers catching
fire, emitting smoke, or becoming da-
maged.
Notice for the blue lead
! A signal is output through the blue lead to
control the aerial of your vehicle. The tim-
ing varies depending on the setting. (For
more detailed information on changing
[
Ant CTRL] mode, refer to
“Operation Man-
ual
”.)
! When [Ant CTRL] mode is set to [Radio],
the vehicle
’s aerial can be stowed or turned
off by following the instructions below.
Connecting the System
Engb
6
Section
03
