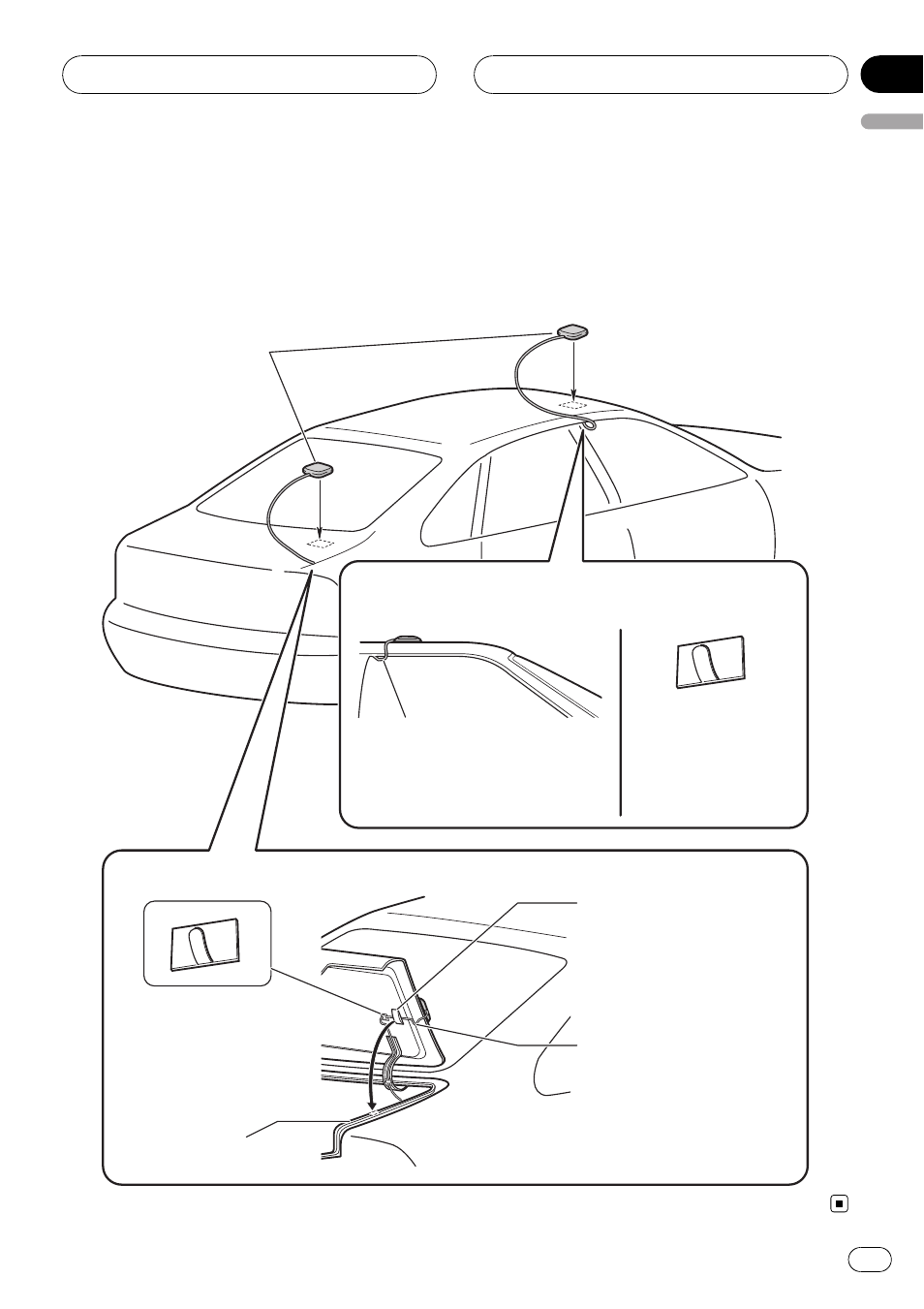

When installing the aerial
outside the vehicle (on the body)

Put the GPS aerial in a position as level as pos-
sible, such as on the roof or boot lid. (The GPS
aerial is fastened with a magnet.)

GPS aerial

Makea U-shaped loop in the lead on
the outside to prevent rainwater
from flowing along thelead into the
interior of the vehicle.

Makea U-shaped loop in the
lead outside the rubber
packing to prevent rainwater
from flowing along the lead
into the interior of the vehicle.

Water proofpad
Make sure the water proofpad
contacts the top of the rubber
packing.

Clamps
Use clamps to secure
the lead where
necessary inside the
vehicle.

Clamps
Use clamps to secure
the lead where
necessary inside the
vehicle.

When routing the lead in from inside the boot

Rubber packing

When routing the lead in from the top of the
door

Installation

Engb

27

English

Section

04
