Power cord
Violet/white (REVERSEGEAR SIGNAL INPUT)
This is connected so that the navigation system can detect
whether the vehicle is moving forwards or backwards.
Connect the violet/white lead to the lead whose voltage
changes when the reverse gear is engaged. Unless
connected, the sensor may not detect your vehicle
travelling forward/backward properly, and thus the position
of your vehicle detected by the sensor may be misaligned
from the actual position.
When you use a rear view camera, please make
sure to connect this lead. Otherwise you cannot
switch to rear view camera picture.
Be sure to use only the supplied extension lead. Use of another
lead could cause fire, smoke and/or damage this navigation
system.

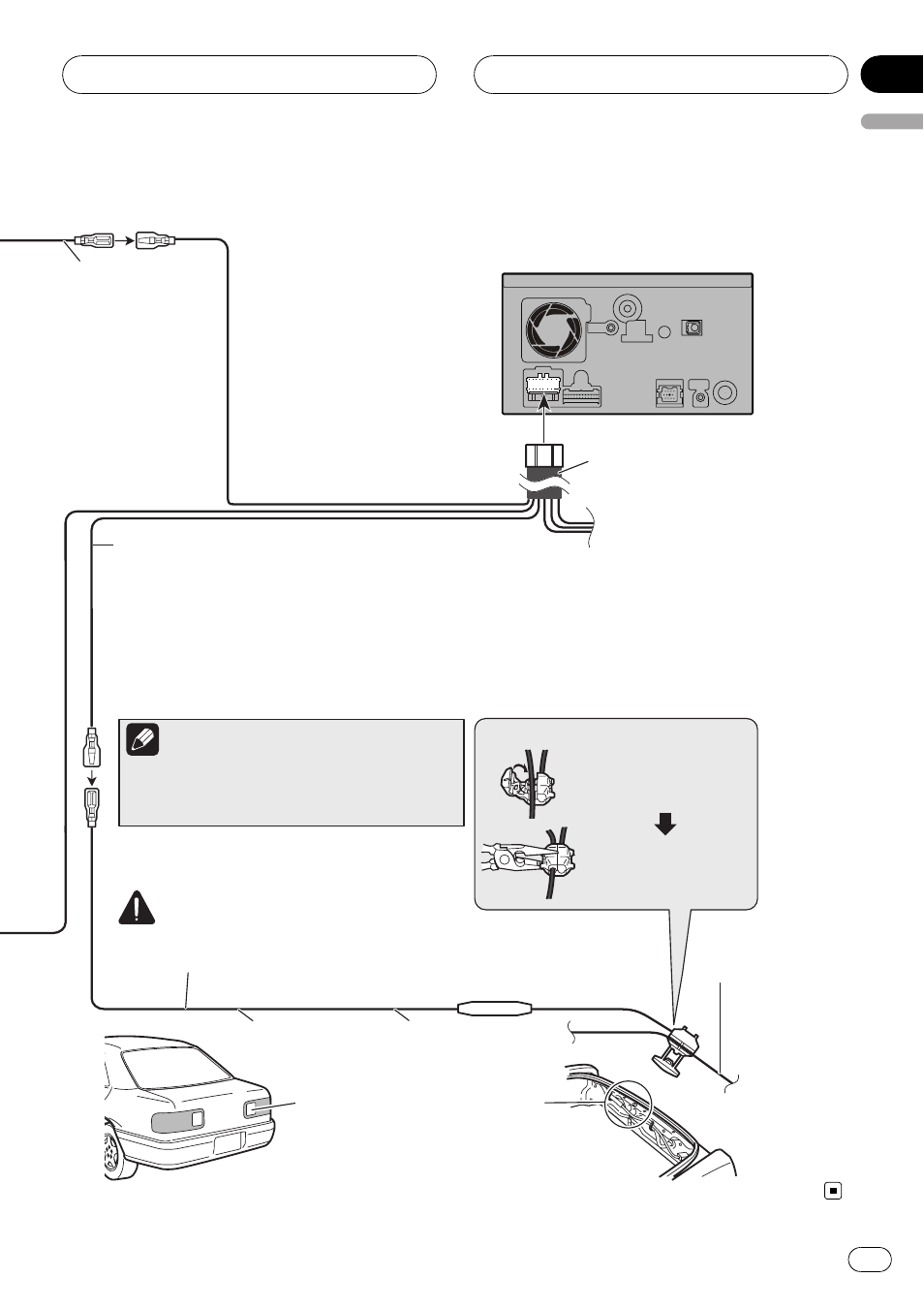

Connection method
Check the position of your
vehicle´s reversing lamp (the one
that lights up when the gearstick is
in reverse [R]) and find the
reversing lamp lead in the boot.
Extension lead
(for reverse signal)
Extension lead
(for speed signal) The navigation unit
5 m
Fuse resistor
Reversing
lamp lead
Clamp the reversing
lamp lead.
Clamp firmly with
needle-nosed
pliers.
Note
CAUTION
Connecting the System
Engb
13
English
Section
03
