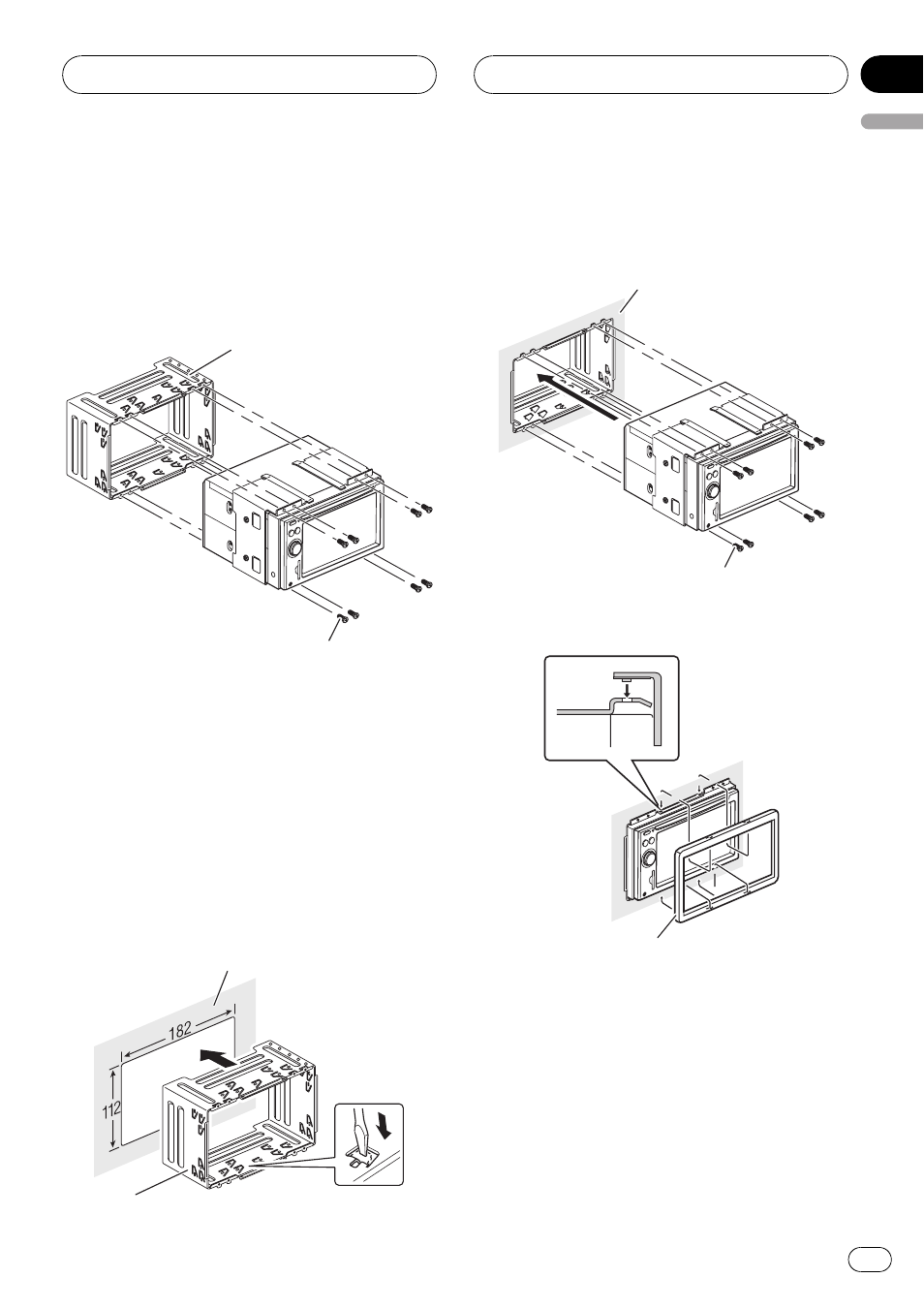

Before installing this navigation
unit

% Remove the holder.
Loosen the screws (3 mm × 6 mm) to remove
the holder.

Holder

Screw (3 mm × 6 mm)

Installation with the holder and
side bracket

1

Install the holder into the dashboard.

After inserting the holder into the dashboard,
select and bend the tabs appropriate to the
thickness of the dashboard material. (Install
this navigation unit as firmly as possible using
the top and bottom tabs. To secure this naviga-
tion unit, bend the tabs 90 degrees.)

Dashboard

Holder

2

Install this navigation unit and fasten

the screws.

Dashboard

Screw (3 mm × 6 mm)

3

Attach the trim ring.

Trim ring

Installation

Engb

23

English

Section

04
