Страница 140: Boundary wire (4a)
1
2
1 cm
1 cm
3G
3F
3e
3D
additional Boundary Wire
Extra direct burial Boundary Wire can be purchased in 150 m spools at the store
where you purchased the kit or through the Customer Care Centre.
Note: When adding Boundary Wire, it must act as a continuous loop.
The table at right indicates the approximate length of Boundary Wire needed for a
square, Single Loop layout. Length will vary due to the amount of twisted wire and
layout used. Remember that a Double Loop will require twice as much wire.
area to be enclosed approximate wire length required
Ar
Ac
M
Ft
10
1/4
127
415
13
1/3
146
480
20
1/2
180
590
40
1
255
835
80
2
360
1180
200
5
570
1870
400
10
854
2800
sTeP 4
Connect the Wires to the Fence Transmitter

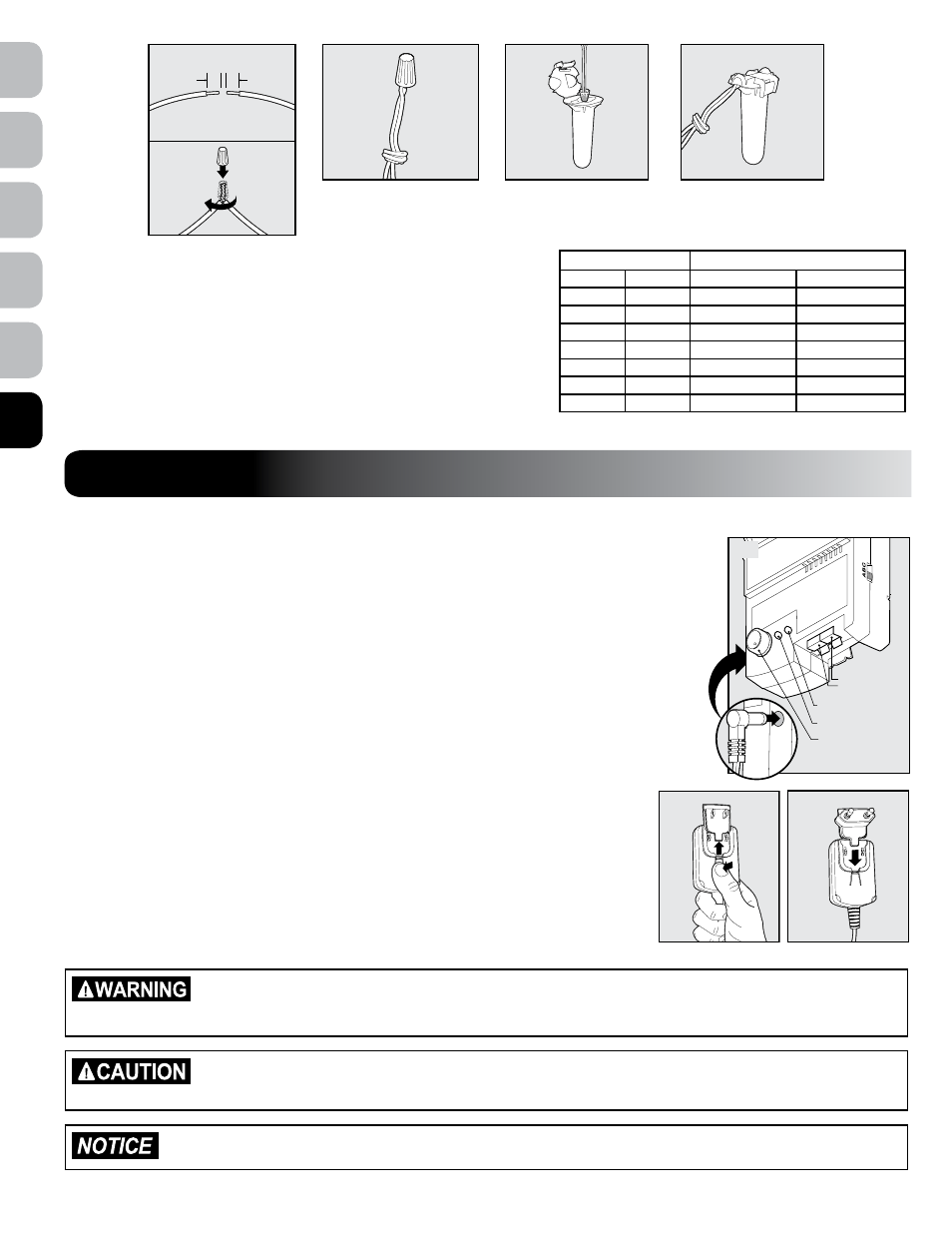

Boundary Wire (4a)
1. Run the Boundary Wire to the Fence Transmitter through a window, under a door, through a crawl
space vent, or any other appropriate available access. You can also drill a hole through your wall.
2. Strip the ends of the Boundary Wire approximately 1 cm.
3. Insert the Boundary Wires into the Boundary Wire Terminals on the Fence Transmitter. Make sure the
wires do not touch each other at the terminals.
4. Turn the Boundary Width Control knob to 10. This will set the Warning Zone at the maximum width.
5. Plug the Power Adapter into the Power Socket and a working outlet. The Power Adapter comes with the
North American plug installed and additional plugs for the UK, Europe, and Australia.
To change the plug:
a. Push in the tab on the Power Adapter and remove the plug by sliding it off as shown
(4B).
b. Slide the proper plug for your electrical outlet onto the Power Adapter as shown
(4C).
6. The Power Light and Loop Indicator Lights should come on. If this does not happen, see the
“Troubleshooting” section.
•Do not install, connect, or remove your system during a lightning storm. If the storm is close enough for you to hear thunder,
it is close enough to create hazardous surges.
•Risk of electric shock. Use the fence transmitter indoors in a dry location only.
If possible, DO NOT use an outlet protected with a Residual Current Device (RCD) or Ground Fault Circuit Interrupter (GFCI).
The fence system will function properly, but in rare cases, nearby lightning strikes may cause the RCD or GFCI to trip. Without
power, your pet may be vulnerable to escape. You will have to reset the RCD or GFCI to restore power to the system.
For added protection for the Fence Transmitter when unused for long periods of time or prior to thunderstorms, disconnect the
wires and unplug from the wall outlet. This will prevent damage to the Transmitter due to surges.
}
Boundary Wire
Terminals
Loop Indicator Light
Power Light
Boundary
Width Control
Power
Jack
4a
4B
4C
