Инструкция по эксплуатации Jet Tools PM-1800
Страница 29
79
TS-0680091 ............ Flat Washer ......................................................... 3/4.............................. 1
80
TS-0051071 ............ Hex Cap Screw.................................................... 5/16-18x1-1/2............. 1
81
PM1800-281............. Wire for Limit Switch (not shown) ............................................................ 1
82
PM1800-BA.............. Brake Assembly (index # 42,44,45,57,59,60,62,63,64) ........................... 1

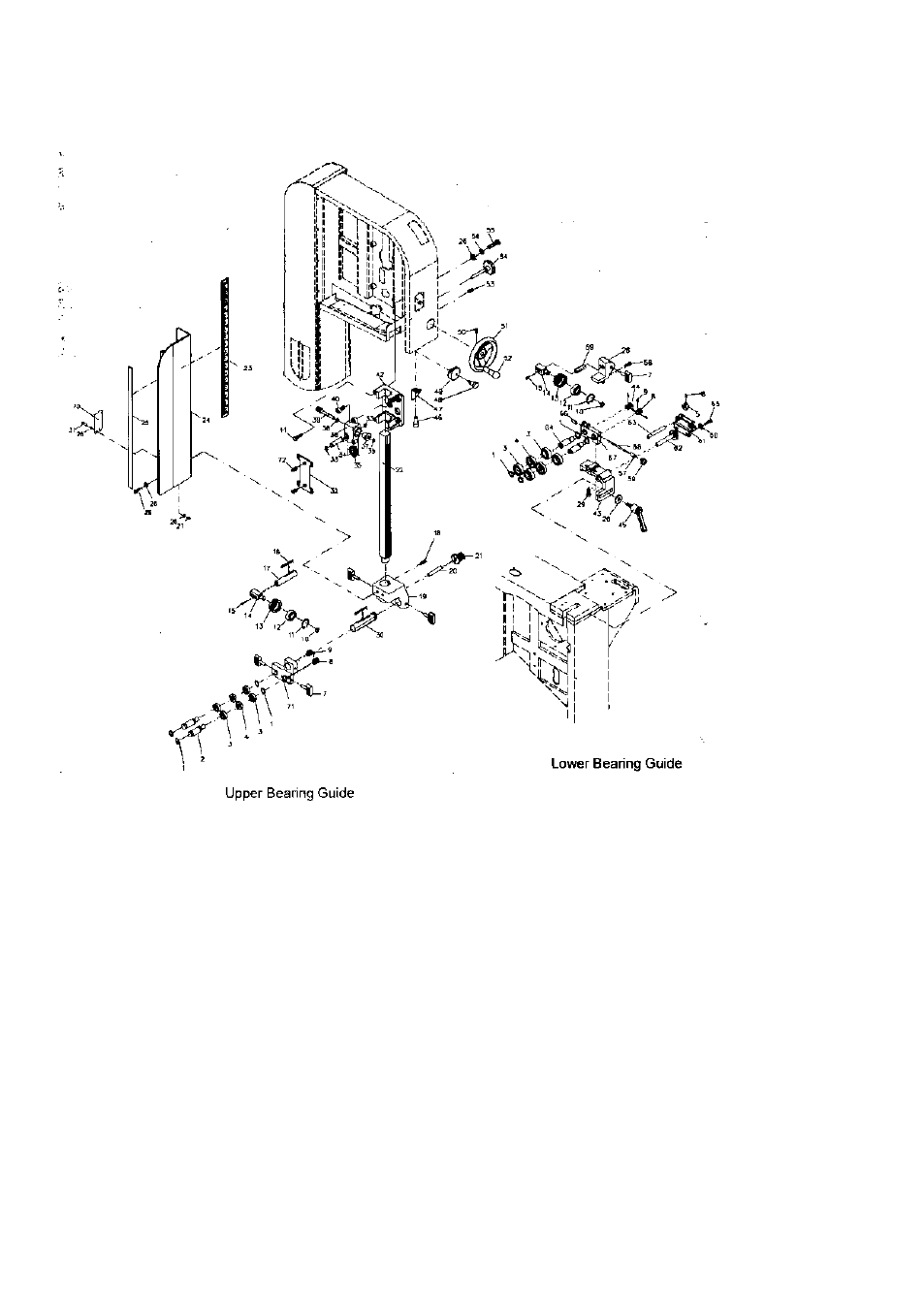

Blade Guide Assembly - Exploded View
Blade Guide Assembly - Parts List
Index No. Part No.
Description
Size Qty
1
JWBS20-326.............C-Ring ................................................................ S15 ............................ 8
2
JWBS20-329.............Upper Shaft ............................................................................................ 2
3
BB-6202ZZ................Ball Bearing........................................................ 6202zz ....................... 8
4
JWBS20-328.............Spacer.................................................................................................... 4
5
JWBS18DX-363........Nut.......................................................................................................... 1
6
TS-0267021 .............Socket Set Screw ............................................... 1/4-20x1/4.................. 1
7
PM 1800-307 ............Locking Screw........................................................................................ 5
8
JWBS20-349.............Thumb Knob........................................................................................... 3
9
TS-1521011 .............Socket Set Screw ............................................... M4x4 .......................... 8
10
PM 1800-310 ............C-Ring ................................................................ S-10 ........................... 2
11
PM1800-311 .............Retaining Ring.................................................... R-26 ........................... 2
