820
870 170
220
140
190
30
100
900

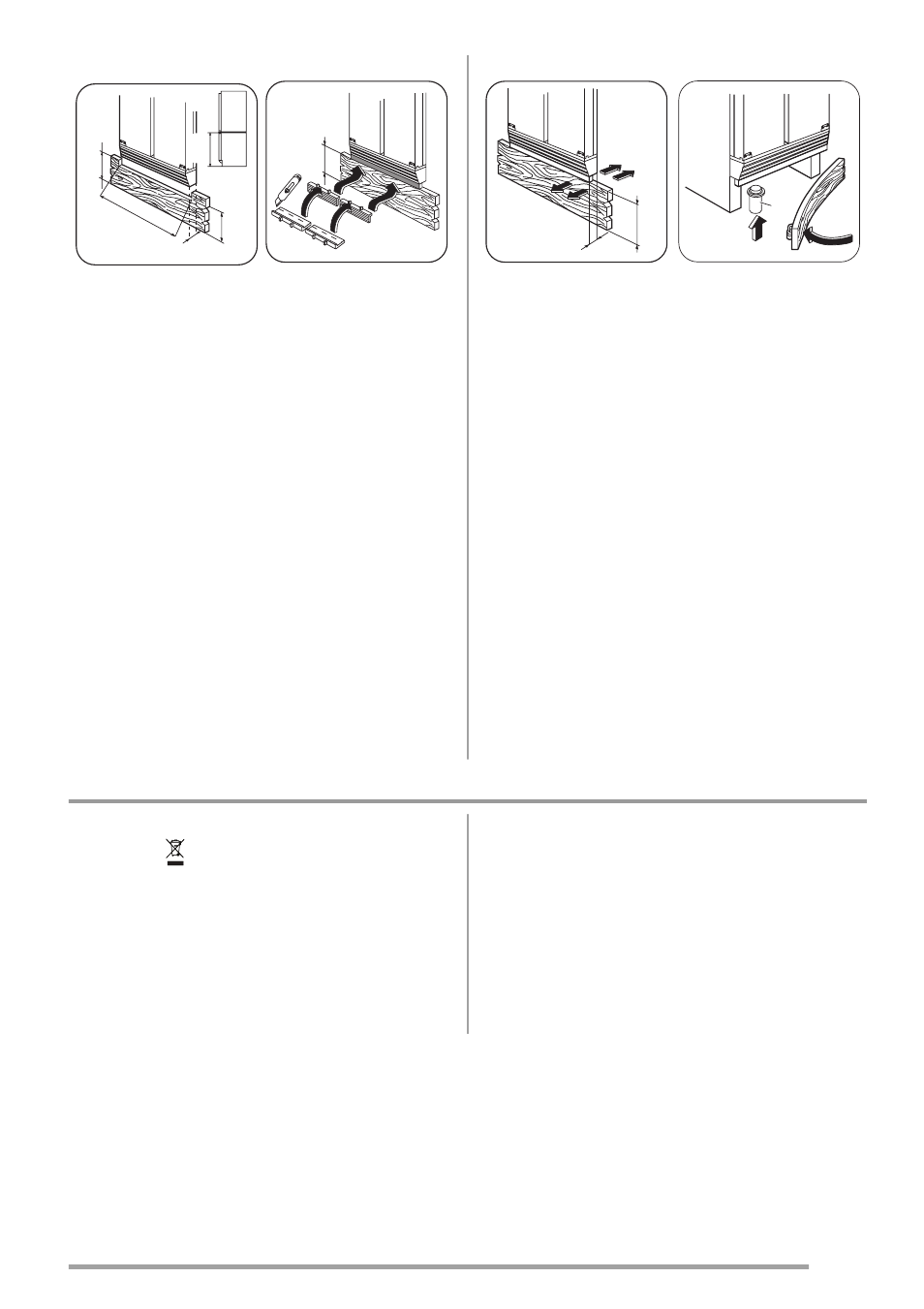

• If using a 140 to
170 mm plinth,
make a cut-out as
shown.
140
190
• If using a plinth
higher than 100
mm but less than
140 mm, cut the
height compensa-
tion strip supplied
with the appliance
to the required
depth and fit it be-
tween the plinth
and the ventilation
grille, pressing it
into position below
this grille.
• If using a 100 mm
plinth, fit the com-
plete height com-
pensation strip.
Alignment height of 870 mm
100
150
30
100
• If using a 190 to
220 mm plinth,
make a shown.
• If using a plinth
higher than 150
mm but less than
190 mm, cut the
height compensa-
tion strip supplied
with the appliance
to the required
depth and fit it be-
tween the plinth
and the ventilation
grille.
• If using a 150 mm
plinth, fit the com-
plete height com-
pensation strip.
E
• If the appliance is
installed at the end
of a row of units,
insert foot E to
hold the plinth in
place.
Environmental concerns
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it
should be taken to the appropriate collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local council, your
household waste disposal service or the shop
where you purchased the product.
