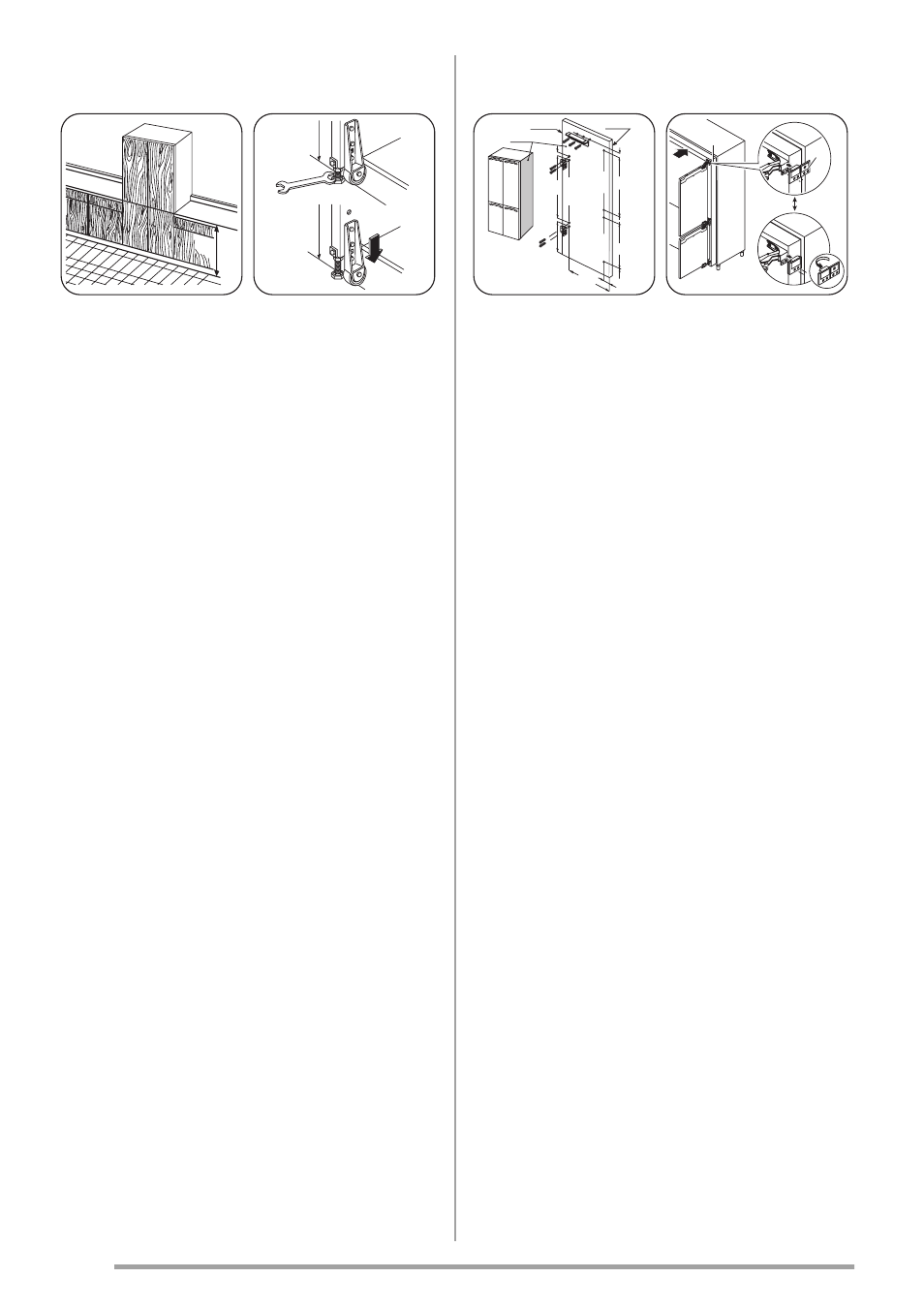

Height adjustment
820
870
The height of the ap-
pliance is adjustable
from 820 to 870 mm
to fine up with exist-
ing kitchen units.
820
870
Before installing the
appliance between
units, adjust the
height of the feet and
rear wheels.
The wheels are facto-
ry set for a height of
820 mm.
To align the appli-
ance to a height of
870 mm, raise it by
adjusting the feet
with a spanner, then
remove the wheels
and refit them in the
lowest position.
Fitting the side panels
1
17,5
1015
64
539
260*
541
280
15
820
15
30
2
3
• Fit the brackets on-
to the panels in the
positions shown in
the diagram. The
dimension of 260*
mm is allowed for
fitting a 100 mm
plinth below the
panel. For different
plinth sizes, in-
crease the dimen-
sion of 260* mm
accordingly.
1. Rear edge
2. Front edge
3. Right hand side
panel
2
D
D
1a
1b
• Apply spacers to
the hinges before
installing the appli-
ance into the cabi-
net . See picture.
12
