45

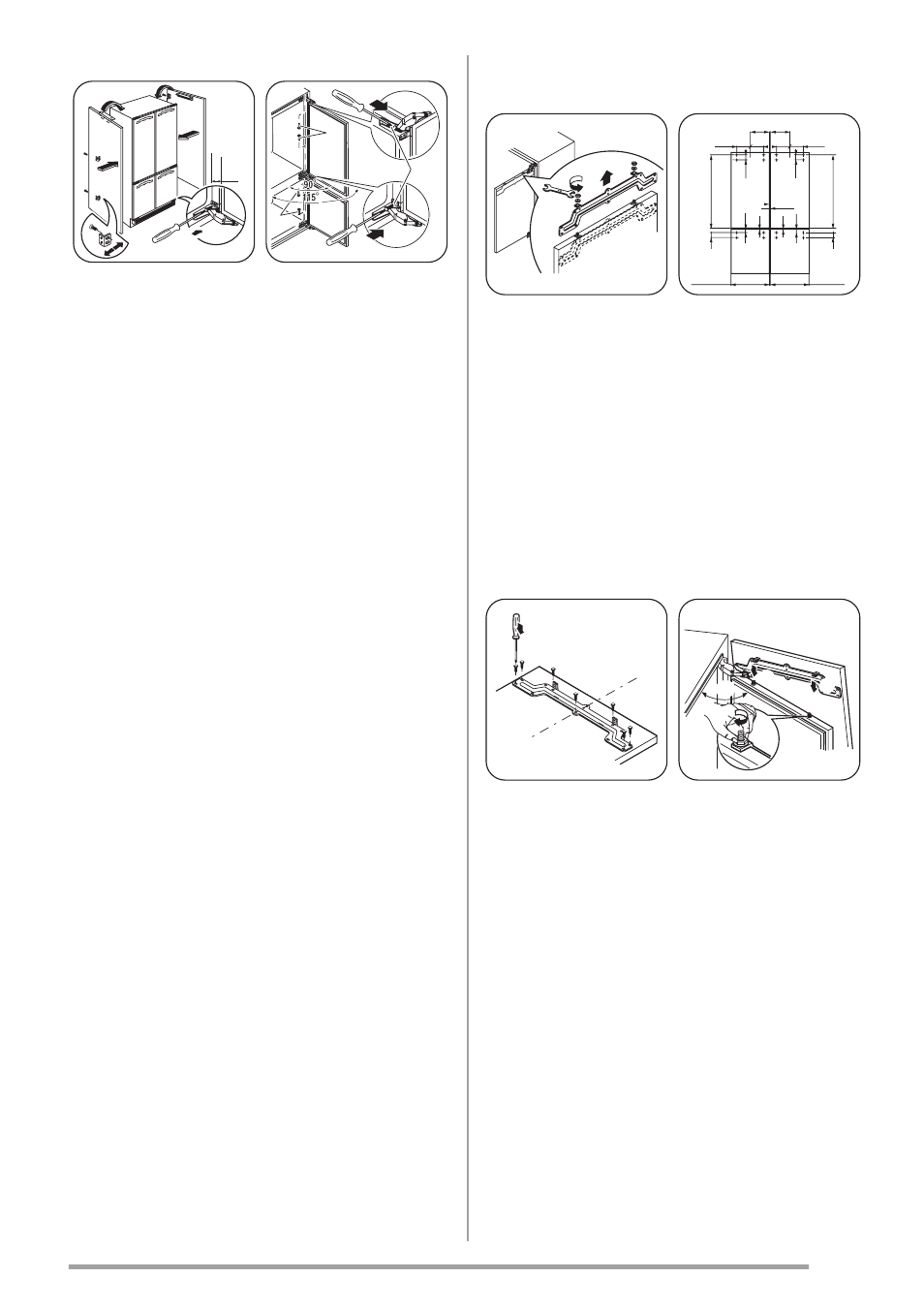

• Rest the panels
against the appli-
ance.
• Fit the rear brack-
ets, taking into ac-
count the thickness
of the panels (max-
imum width of unit
900 mm).
• For a correct align-
ment make sure
that the distance
between the appli-
ance and the cabi-
net is of 45 mm.
• Secure the panels
at the front.
• Fix the squares
(contained in the
bag) to the lower
part of the door
(references already
provided).
L
L
2
1
N
• If necessary, door
opening agle max
90° can be ob-
tained by introduc-
ing the pivots sup-
plied separately.
See picture.
Fitting the door panels
1
2
• Open a door a re-
move the bracket
cover.
Undo the nuts with
washers and re-
move the bracket
from the door.
1013
25
1013
25
60 4
4 60
444MIN.
447MAX.
444MIN.
447MAX.
4
5
6
7
25
25
193
193
193
193
3MIN
214 214
• Drill the small
doors as shown in
the figure.
1.
Top right-hand
front panel
2.
Top left-hand
front panel
3.
Bottom right-
hand front panel
4.
Bottom left-hand
front panel
• Fix the bracket to
the door with the
screws contained
in the bag.
1
2
3
90
o
• Refit the bracket
on the adjustment
screws and screw
the nuts with
washers without
tightening them
down.
13
