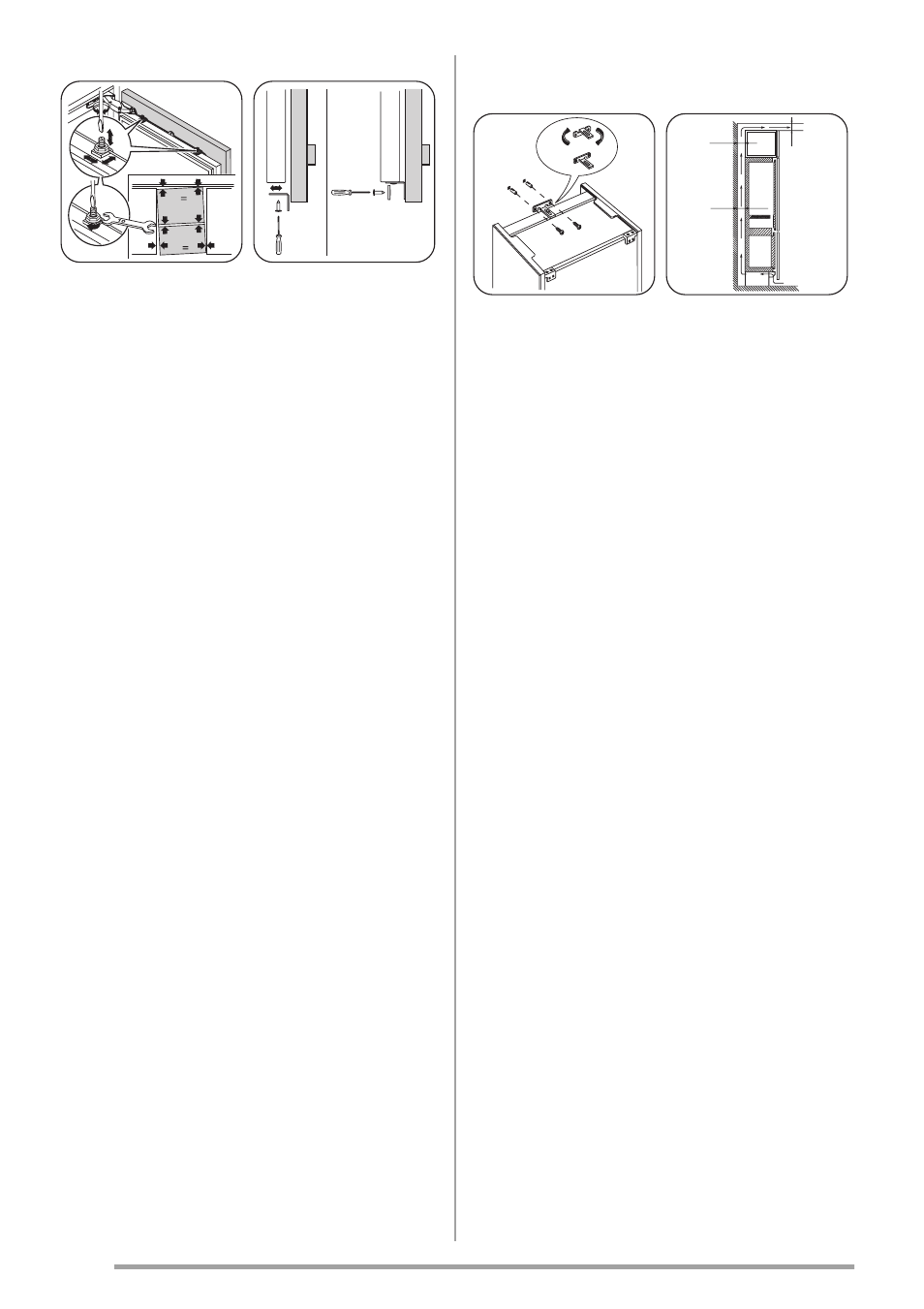

• Close the door and
check that the
small door is posi-
tioned at the re-
quired height, op-
erating the adjust-
ment screws if
necessary.
• Use the same
screws for vertical
alignment of the
small doors.
• If necessary, carry
our horizontal
alignment by shift-
ing the small doors.
• After aligning the
doors, tighten the
nuts of the brack-
ets and the screws
of the small brack-
et.
• Fix the bracket lo-
cated under the
door to the panel
with the two plastic
washers contained
in the box of ac-
cessories.
• Then refit the
bracket cover.
Building the appliance in
1
2
• Fit the appliance
into the recess.
• Rotate the bracket
of 180° in order to
obtain the right po-
sition (2). The posi-
tion (1) is on the
delivery.
• Fix it to the wall
with the appropri-
ate bracket.
50
50
50
• The top of the ap-
pliance must be
kept clear to allow
better air circula-
tion.
If a wall unit is fit-
ted above the ap-
pliance, there must
be a gap of 50 mm
between this unit
and the wall and it
must be at least 50
mm below the ceil-
ing.
Fitting the plinth
Alignment height of 820 mm
