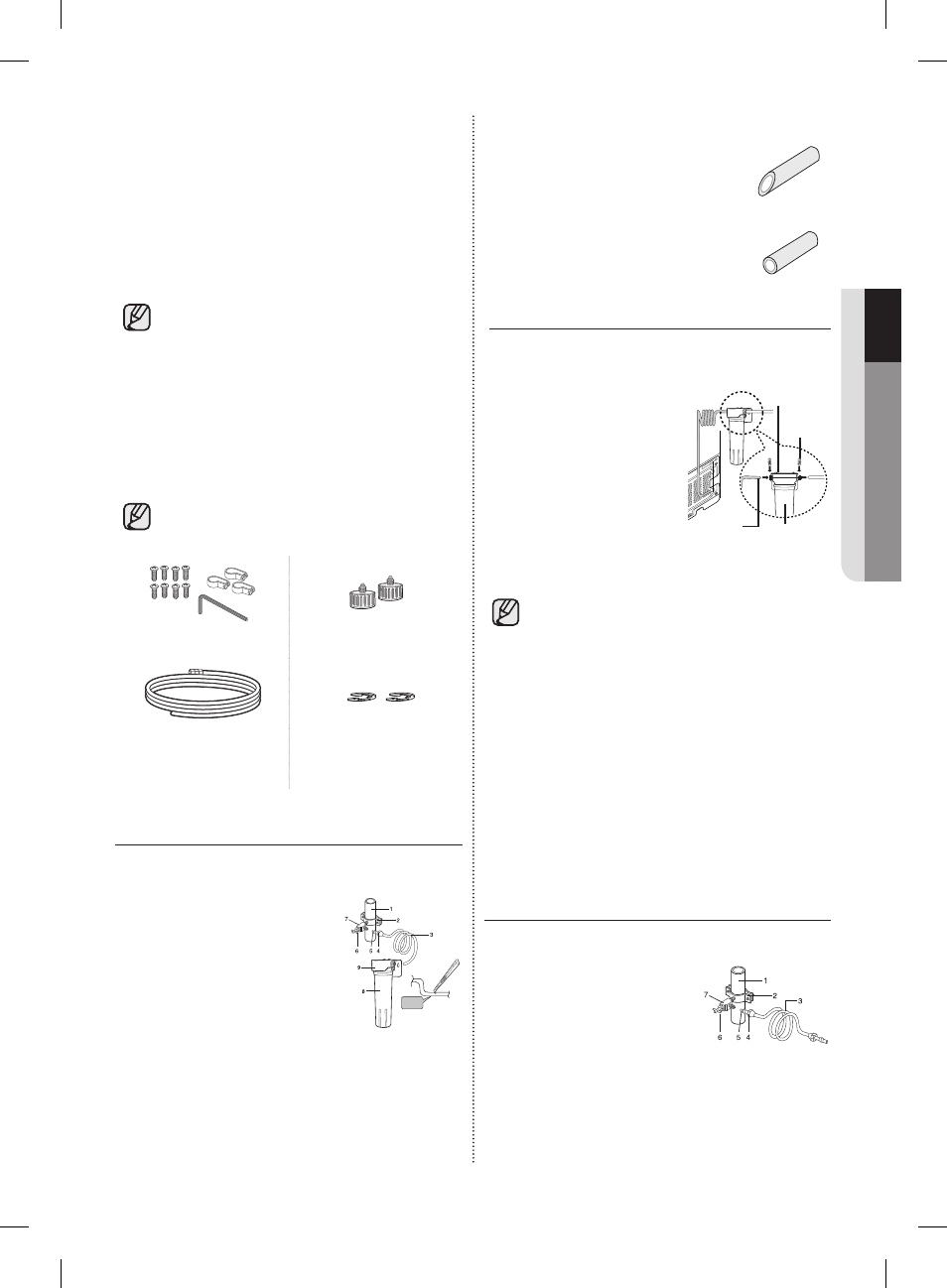

setting up _07
setting up _07
01 SETTING
UP
• The water fi lter must be installed outside the
refrigerator.
It is not provided with your new
refrigerator. The fi lter cartridge (8)
and holder (9) kit can be purchased
from the retailer where you
purchased this refrigerator.
• Do not use copper line.
• Cut the tubing, making sure the
ends are square and clean.
Connect the water line to the fridge
• Connect the plastic line
on the back of your
fridge to the cartridge
holder outlet (fully insert
the plastic line to the
cartridge holder outlet).
• Insert plastic clip to the
cartridge holder inlet and
outlet.
• Turn water on and check
for any leakage.
• You can purchase the necessary fi lter
cartridge at the retailer where you
purchased this refrigerator. Make sure
you buy the SAMSUNG fi lter cartridge
(Replacement cartridge No : DA29-
10105J) to ensure the best performance.
• Water line must be connected to drinkable water
only
• A compression fi tting and nut kit is supplied with
the unit and it is inside the fridge drawer.
• When pushing the Refrigerator back, make sure
you don’t roll over the power cord or water line
(Icemaker supply line)
To use without the water fi lter
section
Connecting to the water supply line
• Shut off the main water
supply line and turn the Ice
maker to the off position.
• Locate the nearest cold
water drinking line.
• To prevent burns and product damage, do not
hook up the water line to the hot water line.
• Do not install the water line in areas where
temperatures fall below freezing.
• When using any electrical device (such as a
power drill) during installation, be sure the device
is insulated or wired in a manner to prevent
electric shock.
• All installations must be in a accordance with
local plumbing code requirements.
• Water line Kit and water fi lter are not
covered by Samsung’s Warranty. The
manufacturer (or dealer, installer) of them is
responsible for any defects and all the loss
caused by water fi lter & water line kit.
• The fi lter should be replaced according to
manufacturer (or dealer)’s instruction.
• To order additional water fi lters, please contact
the manufacturer (or dealer) of the fi lter.
Check the accessories listed
below.
Using the water fi lter (not provided)
Connecting to water supply line
• Shut off the main water
supply line and turn the Ice
maker to the off position.
• Locate the nearest cold
drinking water line.
• Follow the instructions in the
water fi lter installation kit.
• After connecting the water
supply line to the Cartridge
Holder inlet and installing the
Filter Cartridge (insert plastic
line in fully).
• Turn on water supply and
fl ush 3L into a bucket to clear
the water fi lter.
Water line fi xer and screws
Pipe connector
Water line
Fastner
-
Refer to ‘MAKING MINOR
ADJUSTMENTS BETWEEN
DOORS’(on page 14)
Incorrect
Correct
90 degree
90 degree
1. Cold Water line
1. Cold Water line
2. Pipe Clamp.
2. Pipe
Clamp.
3. Plastic line
3. Plastic
line
4. Compression Nut
4. Compression
Nut
5. Compression Sleeve
5. Compression
Sleeve
6. Packing Nut
6. Packing
Nut
7. Shut Off Valve
7. Shut Off Valve
8. Filter Cartridge
8. Filter
Cartridge
9. Cartridge Holder
9. Cartridge
Holder
Cartridge Holder
Cartridge Holder
Clip
Clip
Filter
Filter
cartridge
cartridge
Plastic line
Plastic line
(Provided)
(Provided)
1. Cold Water line
1. Cold Water line
2. Pipe Clamp.
2. Pipe
Clamp.
3. Plastic line
3. Plastic
line
4. Compression Nut
4. Compression
Nut
5. Compression Sleeve
5. Compression
Sleeve
6. Packing Nut.
6. Packing
Nut.
7. Shut Off Valve
7. Shut Off Valve
