14_
setting up
14_
setting up
When you turn the hex wrench counter-
clockwise (
), the door will move up.
Only the left-door height is adjustable for
Swing-Type.
1. After adjusting the doors, please insert the
supplied fastener ( 5 ) using Pliers ( 6 ) in the gap
between the hinge-grommet ( 7 ) and the middle
hinge ( 8 ). The number of fasteners you’ll need to
insert depends on the gap.
2 fastener are enclosed with the refrigerator.
The thickness of each fastener is 1.0mm.

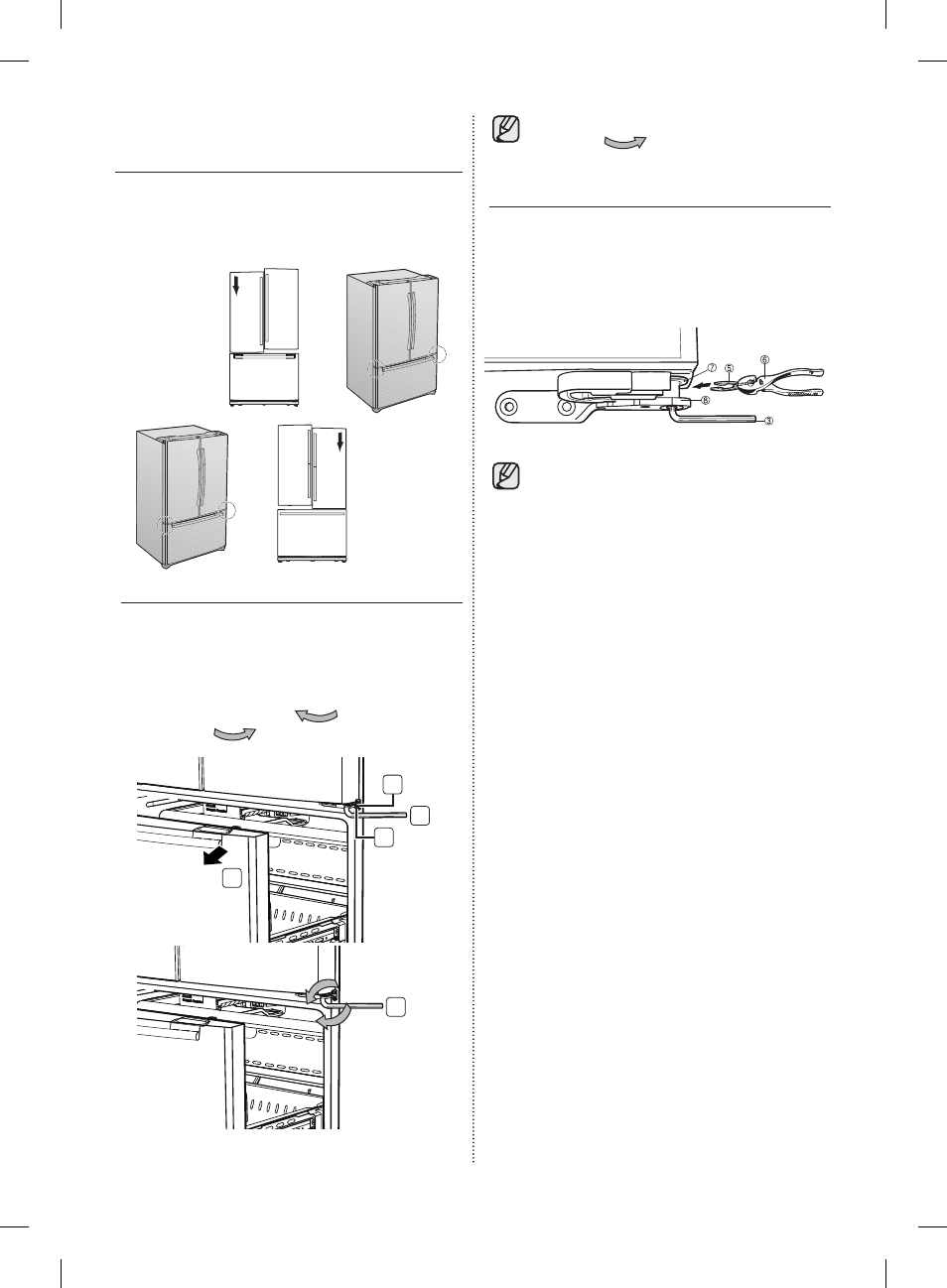

MAKING MINOR ADJUSTMENTS
BETWEEN DOORS
Remember, a level Refrigerator is necessary for
getting the doors perfectly even. If you need
help, review the previous section on leveling the
Refrigerator.
1. Pull out the freezer drawer ( 1 ), then you can see
the middle hinge ( 2 ) .
2. Insert the supplied hex wrench ( 3 ) into the shaft
( 4 ) of the middle hinge.
3. Please adjust the height by turning the hex
wrench ( 3 ) clockwise (
) or counter-
clockwise (
).
When the left door
When the left door
is lower than the
is lower than the
right door.
right door.
Adjustment
Adjustment
part
part
When the left door
When the left door
is higher than the
is higher than the
right door.
right door.
Adjustment
Adjustment
part
part
2
3
4
1
3
