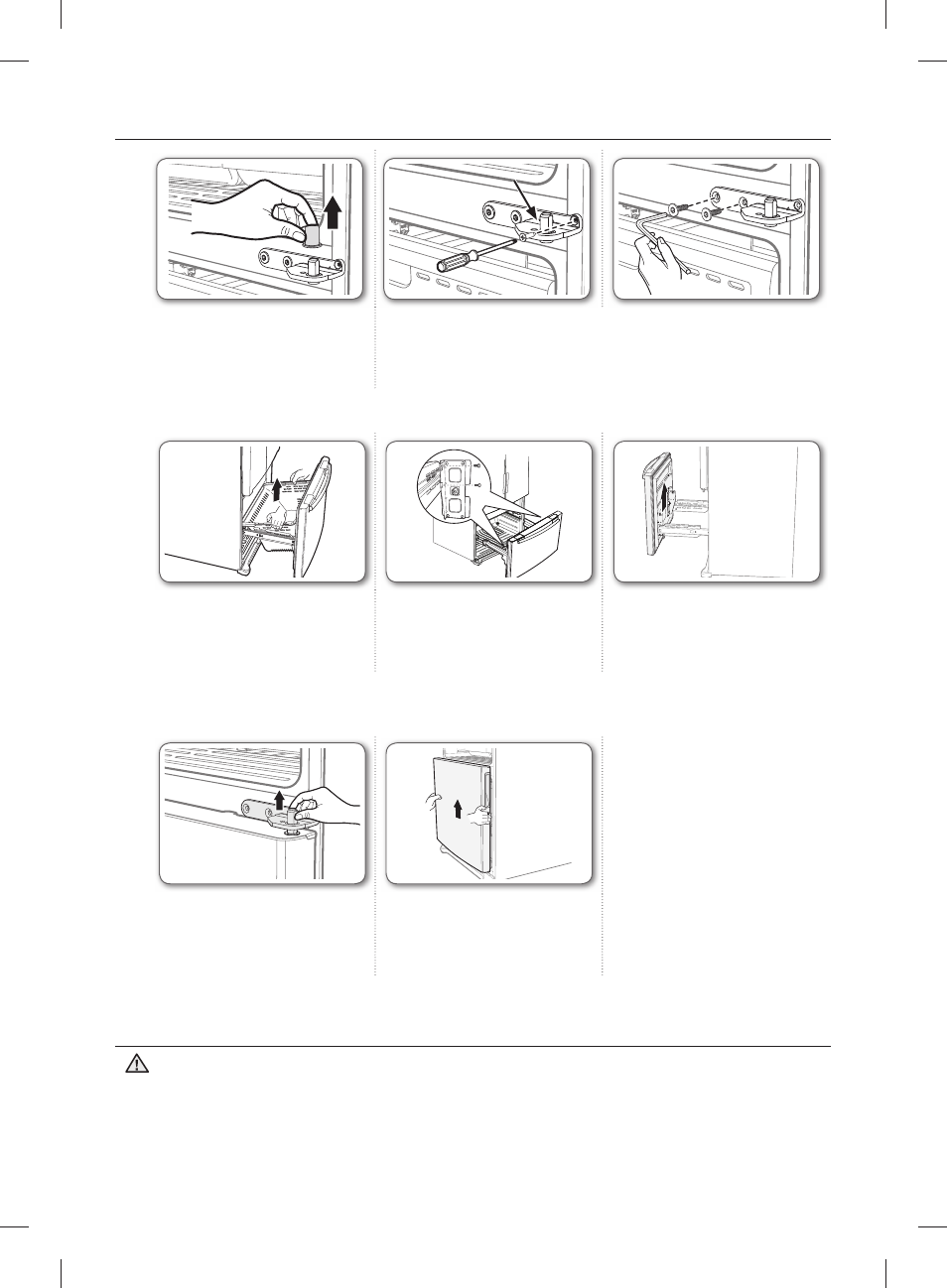

Disassembling the freezer door
1. Separate the cap on the
middle hinge.
2. Remove the screw attached to the left and right middle
hinges with a philips screwdriver(+).
Remove the 2 hex head bolts attached to the left and right
middle hinges with an allen wrench(Ø5mm).
(DRAWER TYPE)
3. After opening the Freezer
door, lift the drawer box.
4. Remove 4 hex head bolts
from both sides with a
socket wrench(10mm)
5. Lift up the freezer door
from the rails. Be careful
not to drop and scratch
the freezer door.
(SWING TYPE)
3. Remove the Middle Hinge
connected to the Freezer.
4. Lift up the freezer door
from the hinge.
Be careful not to drop and
scratch the freezer door.
Reassembleing the door
To reassemble the door, assemble parts in revers oder.
Middle Hinge
Middle Hinge
