42
FEEDER CABLE SECTION
Type HO5RR-F
230 V 3 x 2,5 mm 2
ELECTRICAL FEEDER CABLE
CONNECTION

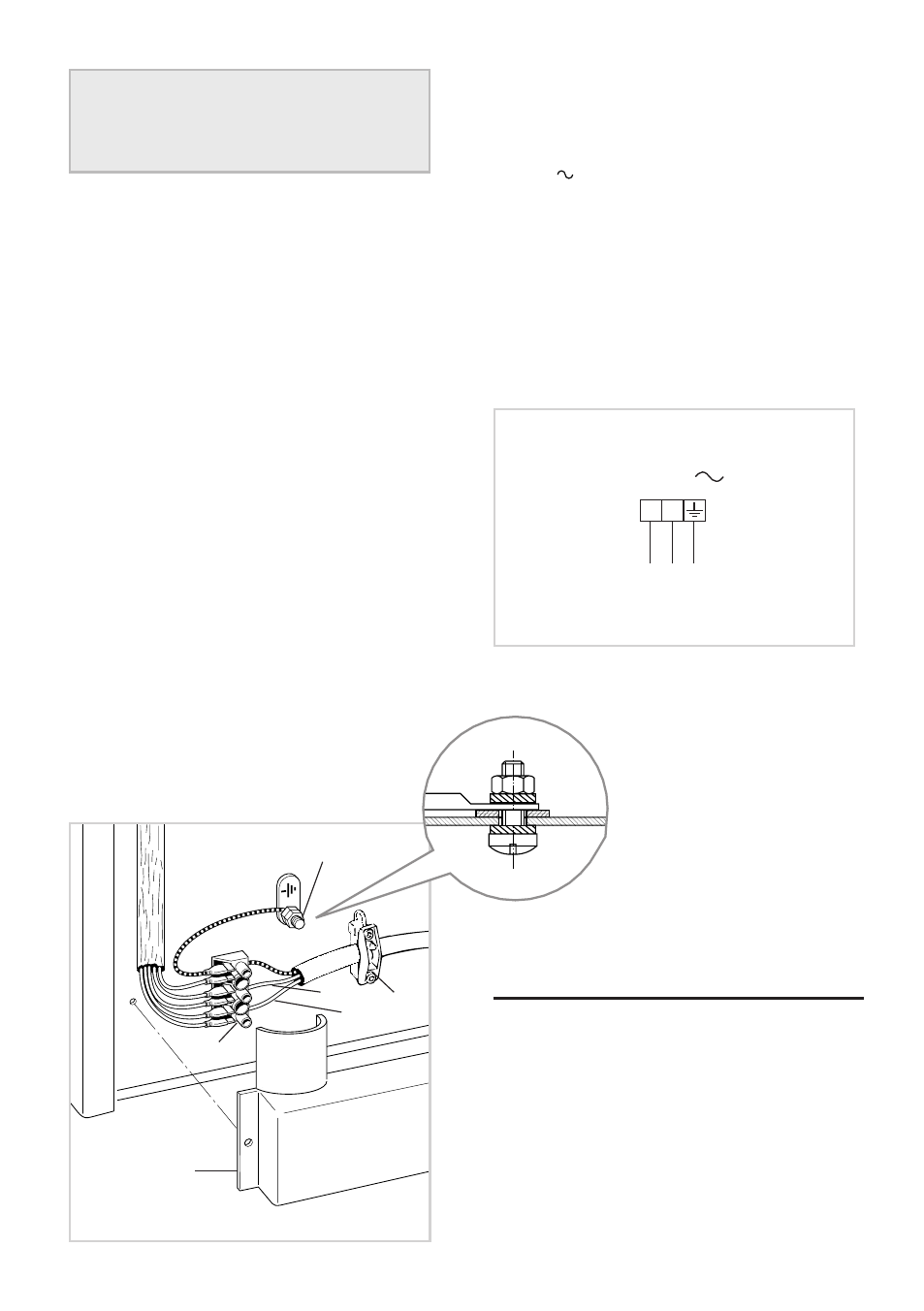

To connect the supply cable:
- Remove the screws securing the cover
“ A” on the rear of the cooker (fig. 9.1).
- Feed the supply cable through the
cable clamp “ D”. The supply cable
must be of a suitable size for the cur-
rent requirements of the appliance;
see the section “Feeder cable sec-
tion”.
- Connect the wires to the terminal
block “ B” as shown in the diagram in
figure 9.2; or connect the phase wires
to the terminal block “ B” and the earth
wire to the terminal PE as shown in
figure 9.1.
- Take up any slack in the cable and
secure with the cable clamp “ D”.
- Replace the cover “ A”.
230 V
PE N L
1
(L
2
)
Fig. 9.2
Fig. 9.1
D
N
B
E
A
L
Descriptions and illustrations in this booklet
are given as simply indicative.
The manufacturer reserves the right, consider-
ing the characteristics of the models described
here, at any time and without notice, to make
eventual necessary modifications for their
construction or for commercial needs.
Before effecting any intervention on
the electrical parts of the appliance,
the connection to the network must be
interrupted.
