32

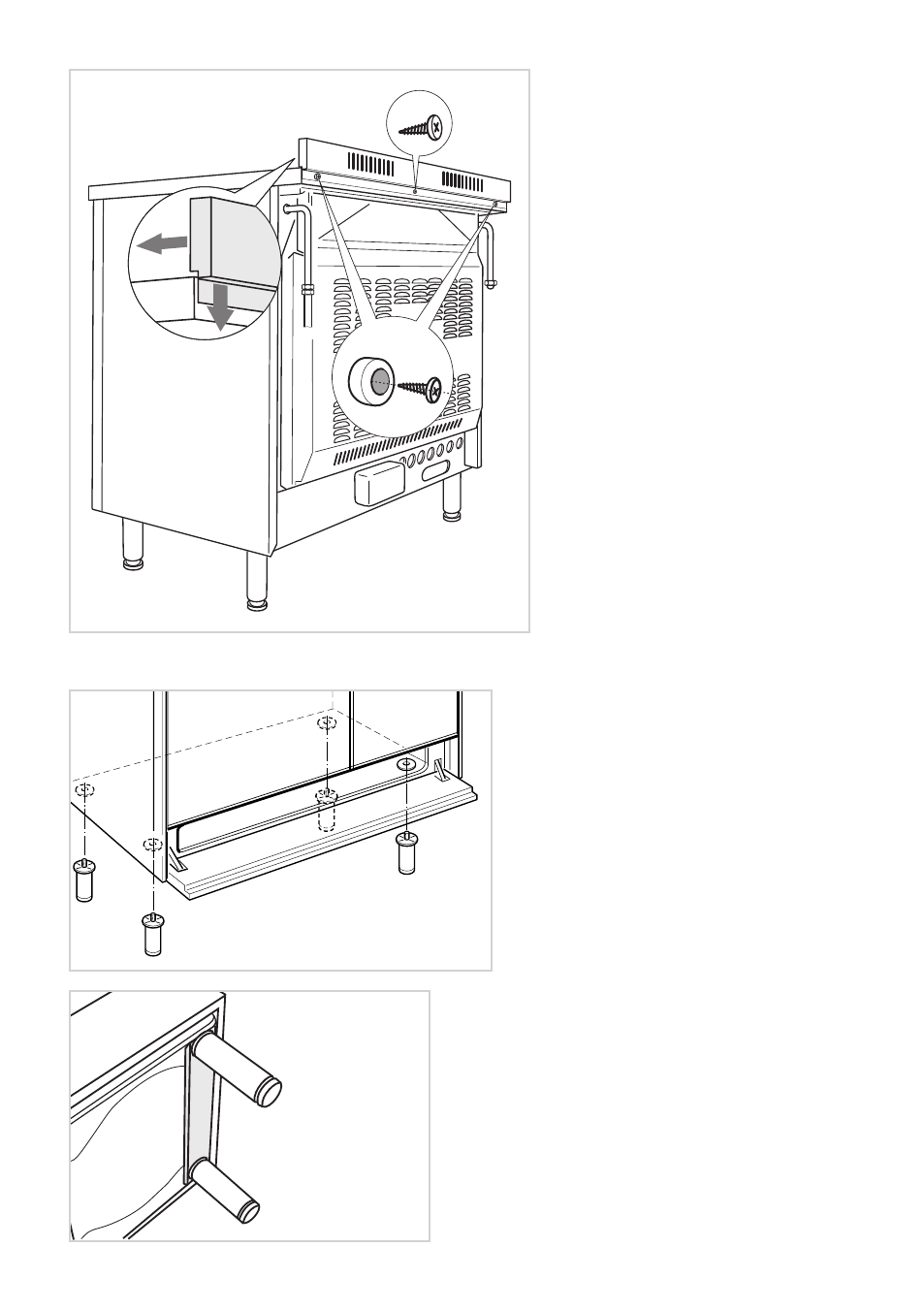

Fig. 7.3
FITTING THE ADJUSTABLE
FEET
The adjustable feet must be fitted to
the base of the cooker before use.
Rest the rear of the cooker on a
piece of the polystyrene packaging
exposing the base for the fitting of
the feet.
Fit the 4 legs by screwing them tight
into the support base as shown in
figures 7.3 - 7.4.
Fig. 7.4
BACKGUARD
– Remove the two spacers “A” and
the screw “B” from the rear of the
cooker top.
– Assemble the backguard as
shown in figure 7.2 and fix it by
screwing the central screw “B”
and the spacers “A”.
A
B
Fig. 7.2
